NOTE: YOU MAY NEED ANOTHER SET OF HANDS TO GET
THE FRONT BRAKE CONNECTED. GRAB AN ASSISTANT!
1. LOOSEN BUT DO NOT REMOVE THE CABLE ANCHOR NUT ON THE
FRONT BRAKE CALIPER BY TURNING IT COUNTERCLOCKWISE
WITH THE 10 MM WRENCH.
2. POSITION THE CALIPER OVER THE WHEEL SUCH THAT THE TOP
OF THE CALIPER IS CENTERED OVER THE WHEEL, AND THE BRAKE
PADS ARE:
· PARALLEL WITH ONE ANOTHER.
· ALIGNED WITH THE TIRE RIM.
· EVENLY SPACED FROM THE TIRE RIM.

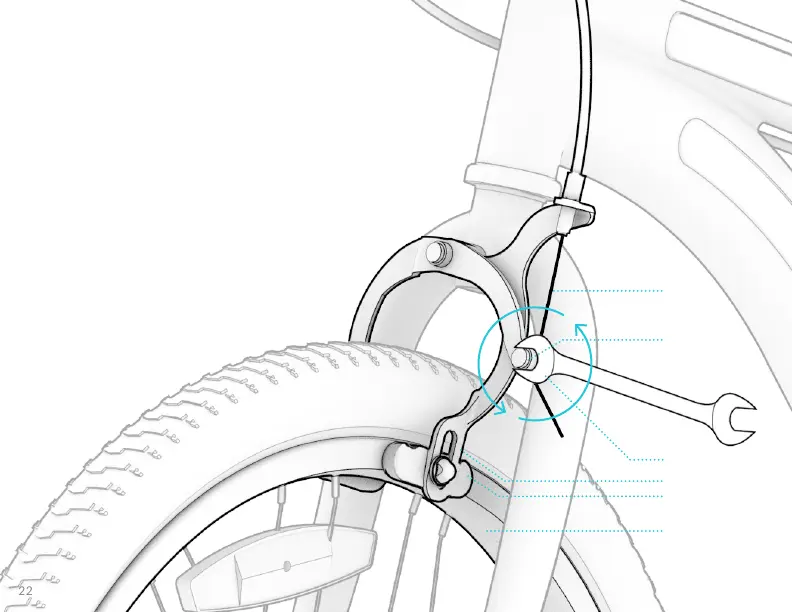

PADS
TIRE RIM
CALIPER ARMS
CABLE
ANCHOR NUT
CABLE
10MM WRENCH
1.5 Assembling the Front Brake
To Next Page
