22 PI-120 March 2020
6.0 FXG2 TORNADO GUN MAINTENANCE
6.1 REPLACING THE HIGH PRESSURE SEAL
If water begins to leak from weep holes at rear of gun during operation,
replace high pressure seal as follows:

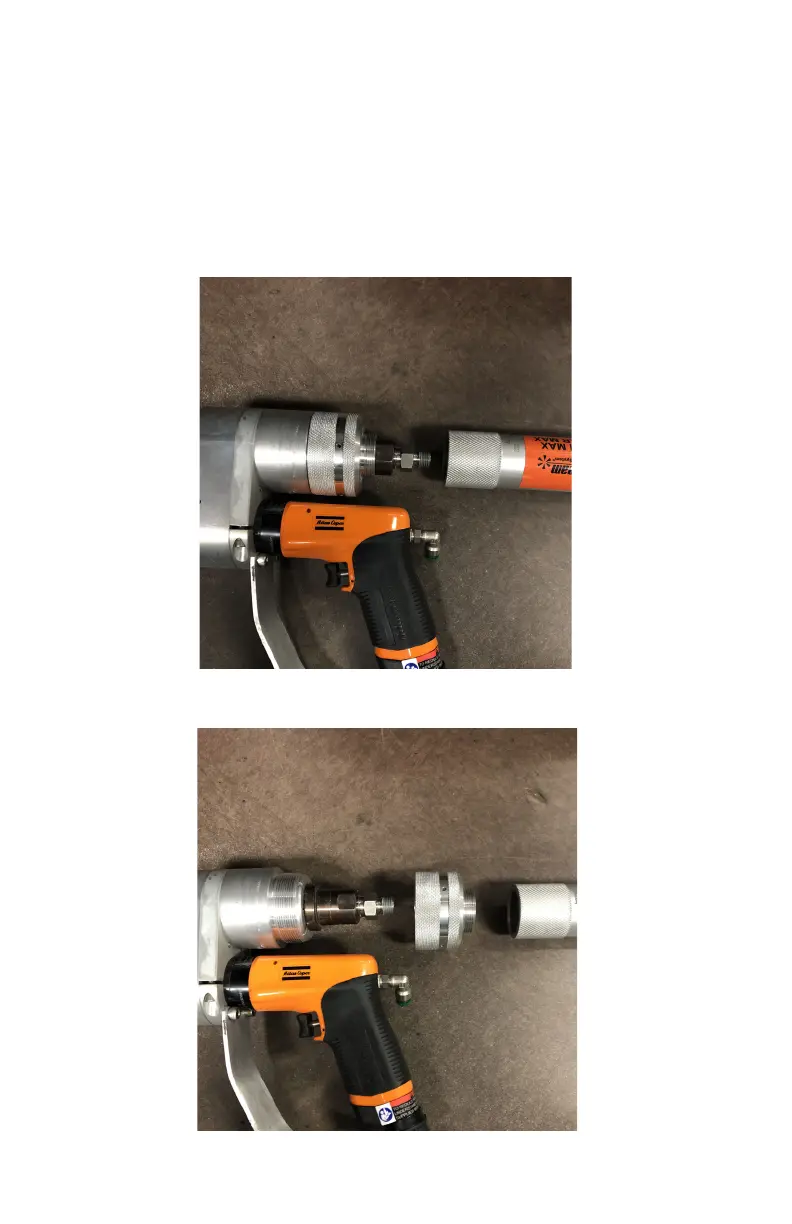

1. Remove hose support burst shield (6) and disconnect high pressure
hose.
2. Loosen and remove retaining nut at back of swivel (4a).
