JETStream FXG2 Tornado Gun - Page 23

23PI-120March 2020

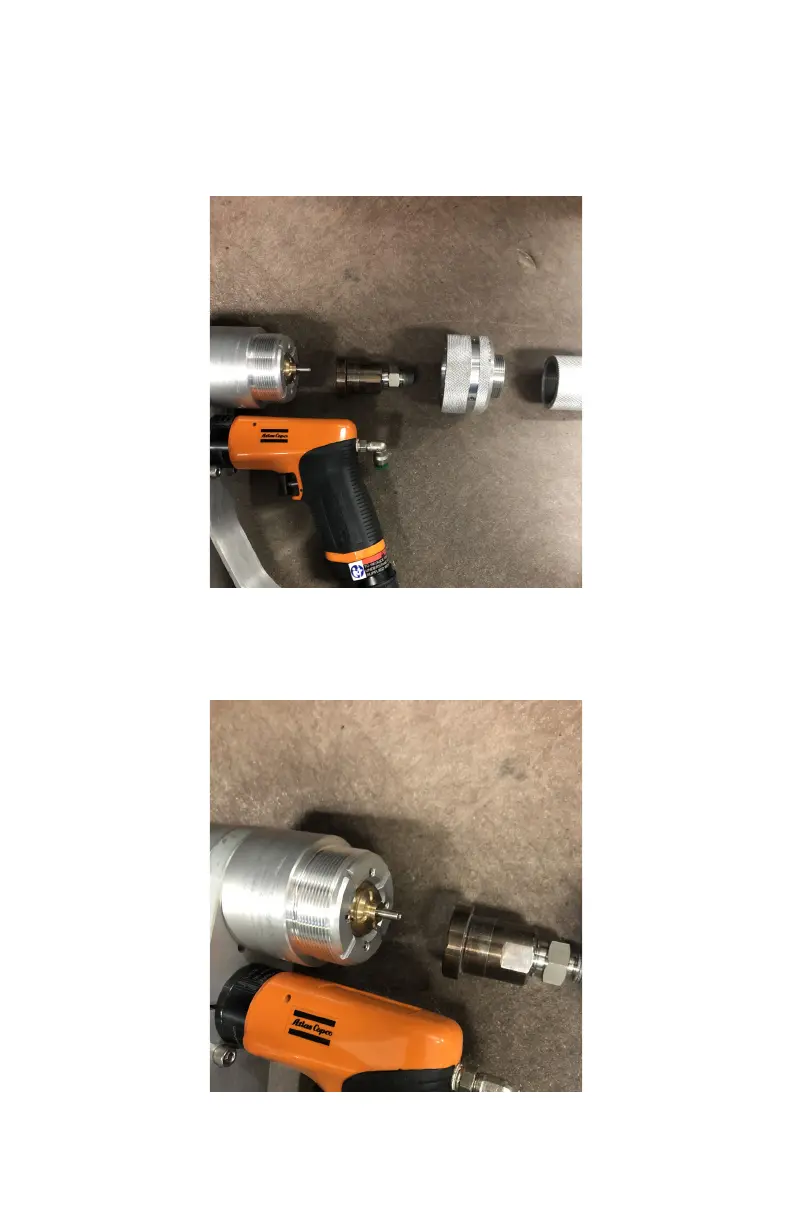

3. Remove seal adapter (4b) by pulling back away from gun. Push out
worn seal from adapter ID using blunt object. Be careful not to dam-
age seal adapter.
4. Clean all dirt and debris from rotary swivel body and check condition
of the swivel shaft. Install new bushing (PN 67541) over swivel shaft,
large diameter first.
