STEP3 CONNECT COMPUTER CABLE ( LOW )( 16 ) & COMPUTER CABLE ( UP )( 15 ),PLUG
OF CABLE ( LOW )( 11B ) & PLUG OF CABLE ( UP )( 11A ),THEN INSERT
COMPUTER SUPPORT TUBE ( 14 ) INTO MAIN FRAME ( 1 ),FIX BY BOLTS ( 17 )
AND WASHERS ( 18 )
STEP4 ATTACH SEAT( 8 ) TO THE SEAT BENDING TUBE( 4 ) ,FASTEN IT WITH THE SEAT
BOLTS ( 28 ) AND WASHERS ( 29 ).
FIX SEAT BENDING TUBE 4 TO SEAT SUPPORT FRAME ( 2 WITH BOLTS
( 26 AND WASHER 27 .
STEP5 ATTACH SEAT-BACK TUBE ( 5 ) TO SEAT BENDING TUBE ( 4 ), FIX WITH BOLTS
( 32 ) WASHERS ( 27 ) AND NUTS ( 33 ), THEN ATTACH BACK-SEAT ( 7 ) TO SEAT -
BACK TUBE( 5 ) , FIX WITH BOLTS ( 34 ) AND WASHERS ( 29 ),COVERED END
CAPS ( 35 )
STEP6 ATTACH SEAT SUPPORT FRAME ( 2 ) TO MAIN FRAME ( 1 ),FIX WITH SEAT
ADJUSTMENT KNOB ( 12 ) AND STUD ( 21 ).
YOU CAN ADJUST THE SEAT TO DESIRED POSITION AND TIGHTEN WITH POP PIN
( 12 .
NOTE: ALIGN ONE OF THE HOLES IN THE SEAT SUPPORT FRAME ( 2 )WITH THE
WELDED NUT ON THE FRAME.
STEP7 ATTACH HANDLE BAR ( 13 ),FIX WITH BOLTS( 30 ) WASHERS( 18 ) , CONNECT
WITH PLUG OF CABLE ( LOW ) ( 11B ) AND SENSOR OF CABLE ( 20 ).
NOW YOUR JMC-4900 HAS BEEN WELL ASSEMBLED.
ADJUST THE TENSION ( 1TO 8 LEVEL ) BU THE TENSION CONTROL
KNOB ( 39 ).
- 3 -
MANUFACTURER SERVICE
"FOR CUSTOMER SERVICE
PLEASE CONTACT THE SALES
OUTLET, WHERE YOU PURCHASED
THIS EQUIPMENT, FOR CUSTOMER SERVICE"

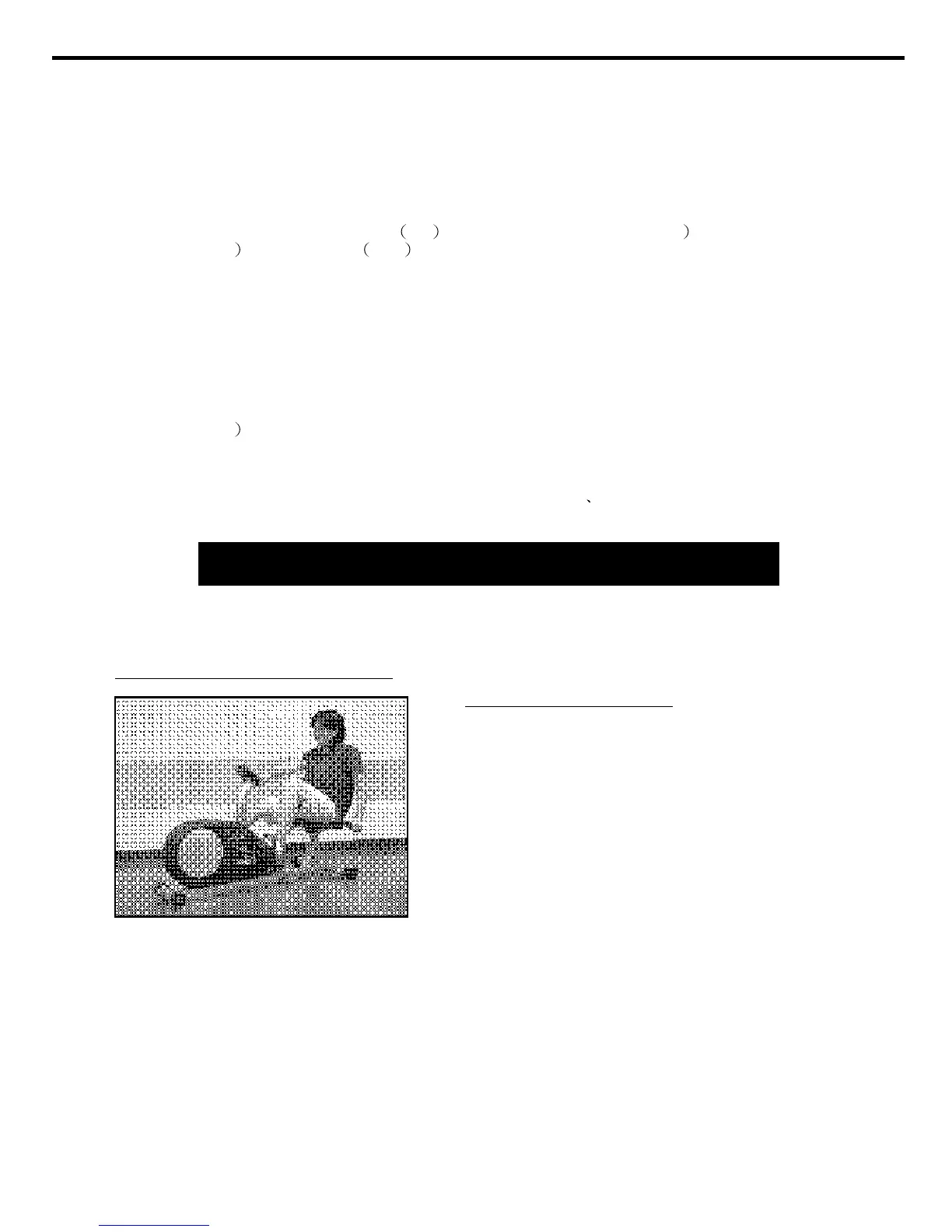

CORRECT POSTURE FOR JMC-4900
