Page 3
INSTALLATION '
STEP%1:%HANGING%THE%FAN%

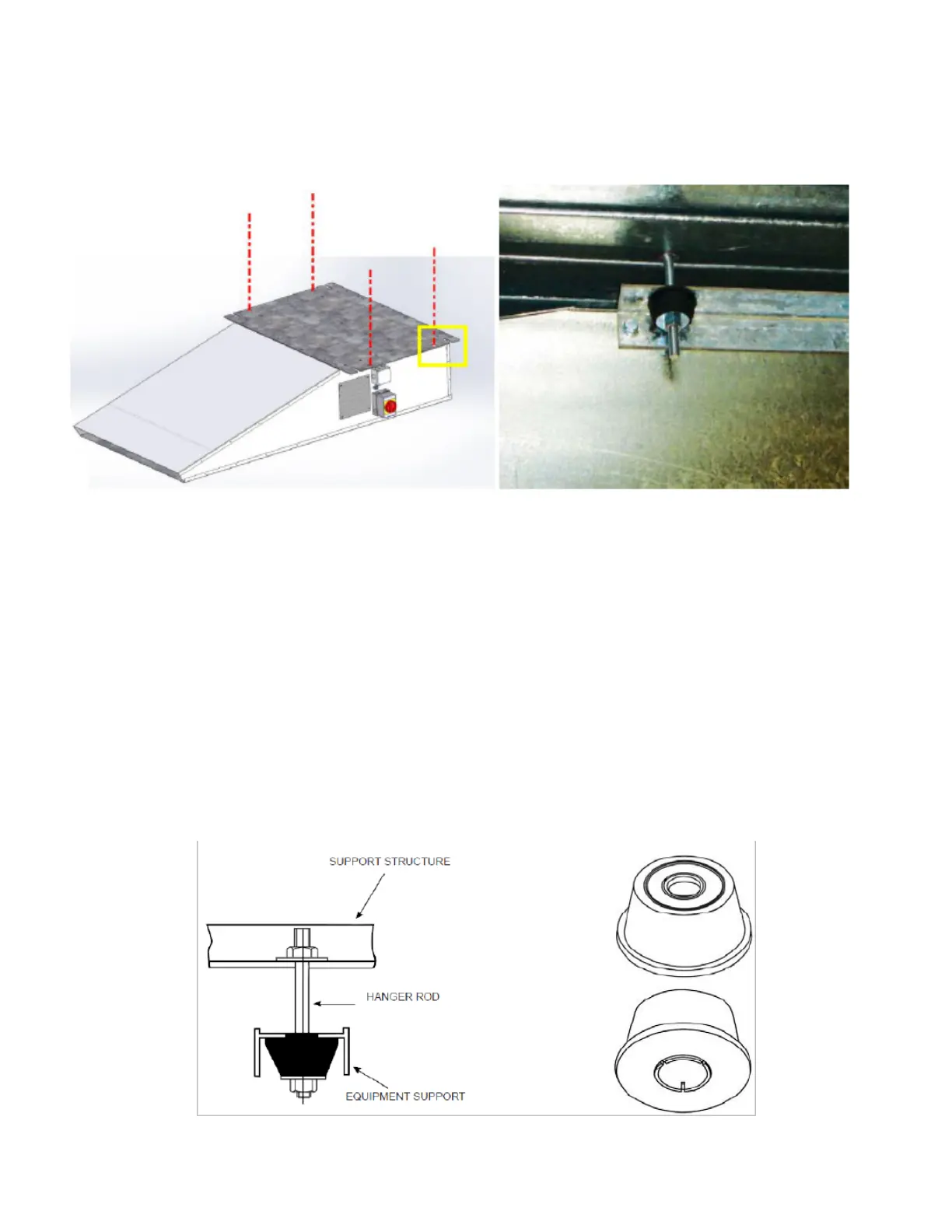

Mounting Points are illustrated in Red. Two sets of holes are provided on the unit, one is a 13mm hole to be used for
mounting directly via hanger rods or bolts, and the other is a 25mm Hole to support the fan with anti-vibration mounts
(close up of yellow box Illustrated on the right).
STANDARD'INSTALLATION'METHOD '
For standard installation, use an 8mm Lag bolts directly to the mounting points.
SOUND'SENSATIVE'INSTALLATION'
For sound sensitive installations, such as the first level under a residential complex, additional anti-vibration mounts are
available.
For anti-vibration mounts, the following parts are required:
Front Mounting Points: 2 X Embelton RHE1-Green
Rear Mounting Points: 2 X Embelton RHE1-Blue
