1. Introduction
SolarMAN WiFi Plug is a data logging module. With its "plug & play" function, the WiFi Plug can
collect information of PV systems from the inverter when it is connected with an inverter.
With the integrated WiFi function, the WiFi Plug can connect with a router and transmit data to the web
server, enabling users to view the collected data by logging in the online monitoring portal
(www.solarmanpv.com/portal). In addition, users can also get access to the internal web server of the
WiFi Plug via WiFi and directly obtain data from it.

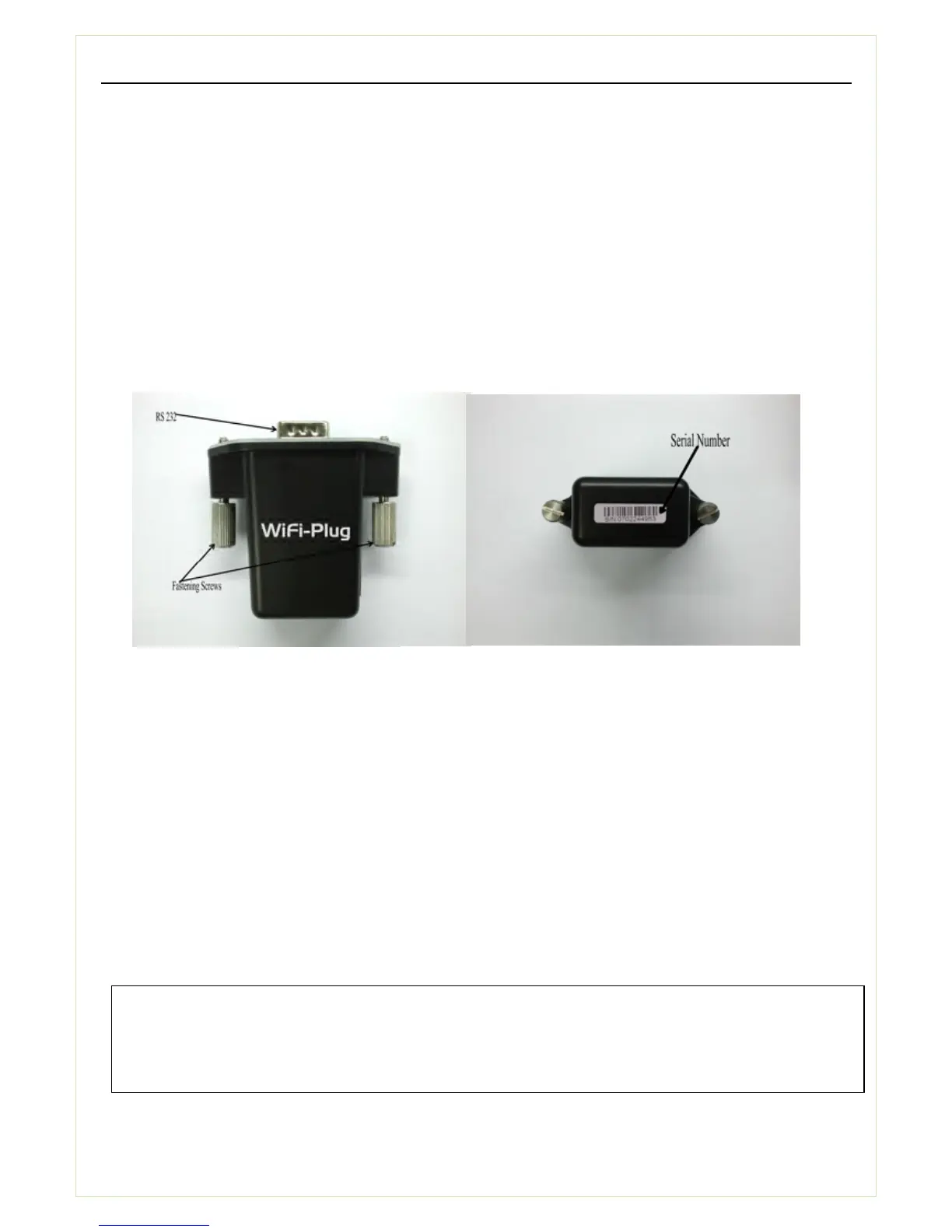

2. Device Layout
3. Connect the WiFi Plug with the Inverter
3.1. Power off the solar inverter
3.2. Remove the cover of the RS 232 Port on the bottom of the inverter.
3.3. Connect the WiFi Plug with the RS232 Port on the inverter by fastening screws. Please double check
if the WiFi Plug is locked tightly or not as the sealability is important.
4. Network setting
4.1 Power on the solar inverter and the WiFi Plug will start to work.
Notice:
The setting hereinafter is operated with Windows XP for reference only. If other operating systems are used,
please follow the corresponding procedures.
