JHS8 JHS-A001D - Parts Name

7
Parts Name

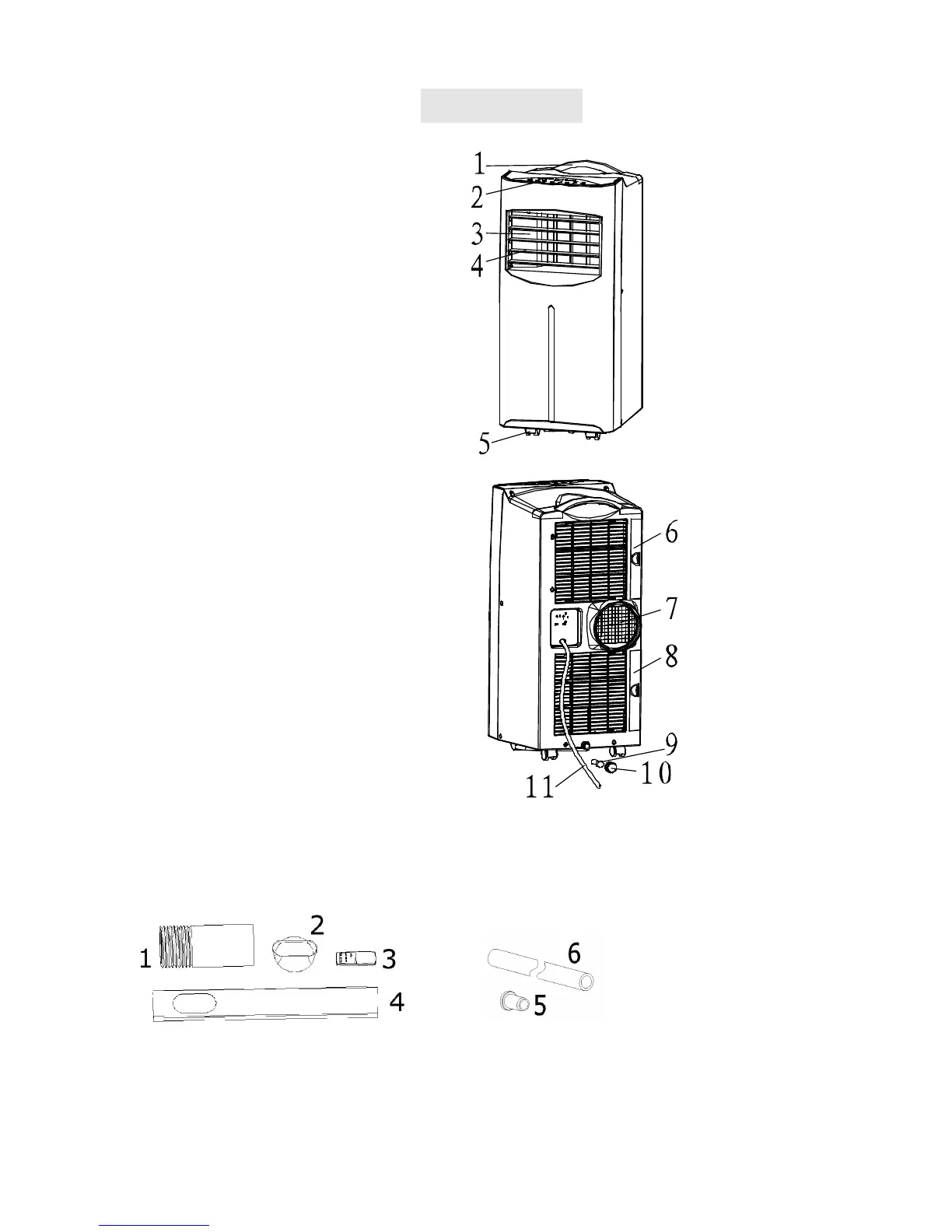

Front side(fig.5)
1. Handle
2. Control Panel
3. Air-outlet
4. Fan blade
5. Castor
Back Side(fig.6)
6. Filter frame upper
7. Exhaust Connector
8. Filter frame lower
9. Rubber plug
10. Pl ug cap
11.Power Cord
Check packing accessories, read user’s manual to get how to use them. (fig.7)
(fig.7)
1. Exhaust hose 2. Slide bar connector 3. Remote control 4. Ajustable slide b ar
5. Drain connector(only for heating model) 6. Drain pipe ( ID: 10mm)(only for heating model)
fig.5
fig.6
