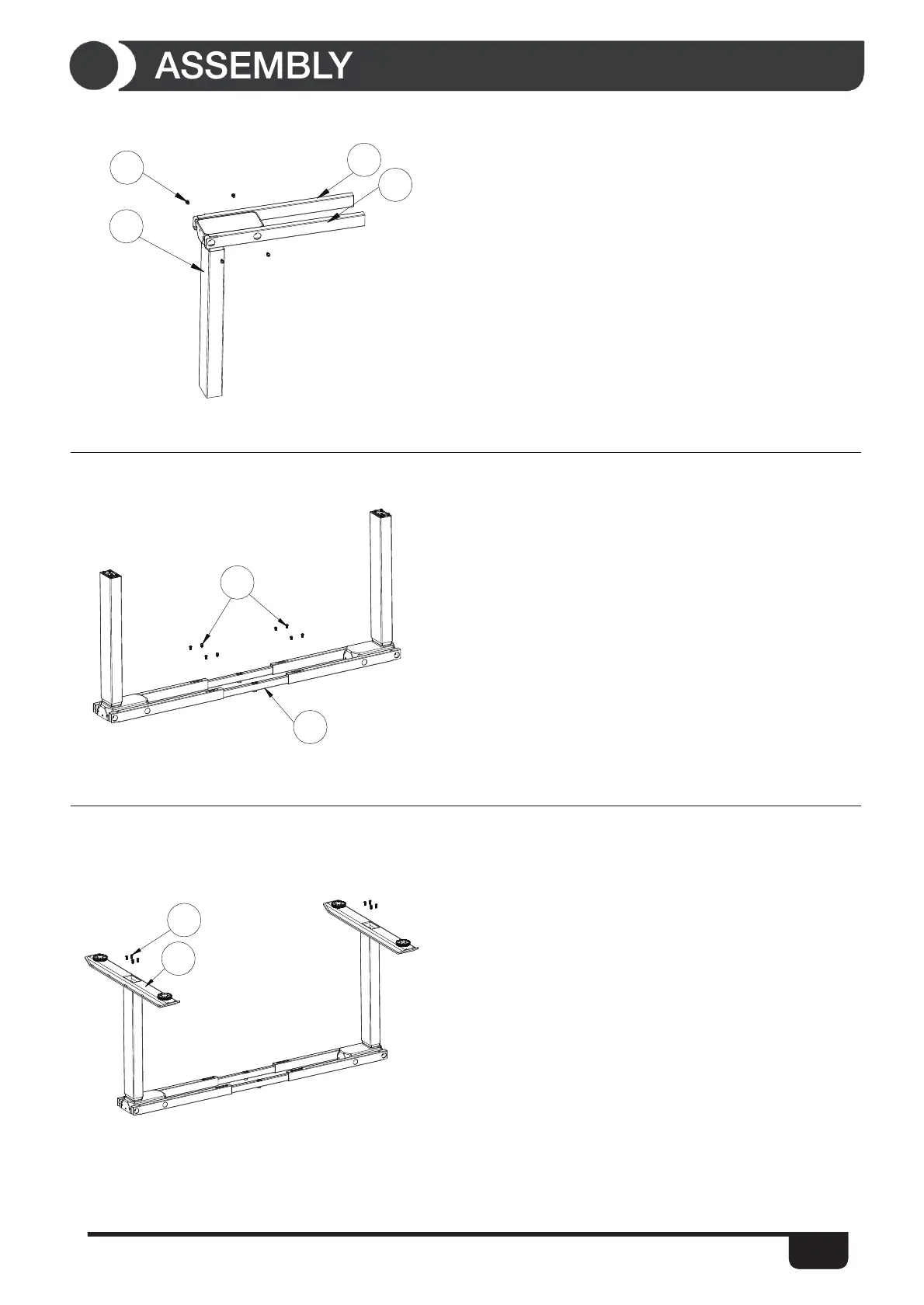

STEP 2: Install the center rail (part 3) with eight (8) M6*10 screws (part 9).
Slide the two (2) center rail (part 3) into the two (2) frame ends ensuring:
a) the slots in the center rail (part 3) face inward
b) the slots in the center rail (part 3) are closer to the top edge when the
assembly is upside down.
STEP3: For each leg assembly, attach a foot (part 6) with four (4) M6*14
screws (part 8) and tighten in a cross-pattern.
Do the same for the other foot (part 6) with four (4) M6*14 screws (part 8).
5
4
9
2
STEP 1: Install the frame left (part 4), frame right (part 5) and lifting column
(part 2) with four (4) M6*10 screws (part 9).
Do the same for the other column(Part 2) and the frame left (part 4), frame
right (part 5) with four (4) M6*10 screws (part 9).
9
3
8
6
To Next Page
