-4-
USING YOUR JIFFY 4G ICE DRILL
NOTE: To minimize water splash, back-off throttle when the
drill breaks thru ice, then raise drill slowly.
NOTE: The clutch slips when the drill is overloaded, when
this happens, raise complete unit slightly to ease load.
NOTE: Remove blade protector from drill assembly prior to
drilling. Reinstall when drilling is complete.
NOTE: If drilling additional holes, carry unit in upright
position by handles only, to next location and proceed
with normal starting and operating instructions.
1. When all holes have been drilled, and engine is stopped, lay
unit down, resting on wing handle with engine spark-plug facing
upward. Disconnect drill assembly from powerhead by sliding
E-Z Connect™ Collar down and pulling clevis pin from drill
assembly. Do not remove pin from collar tether. Slip drill
assembly off of engine output shaft, then re-insert clevis into
drill assembly and slide E-Z Connect™ Collar up to cover clevis
pin.
2. Reattach blade protector to drill assembly to prevent damage to
the blade teeth and point.
TRANSPORTING AND STORAGE
1. Disconnect spark plug wire from spark plug and keep it away
from spark plug.
2. Make sure all fuel is drained from fuel tank, and fuel cap is
screwed on tight.
3. Always transport and store powerhead in an upright position
and make sure powerhead and drill assembly are properly
anchored to prevent damage.
4. Never store powerhead with fuel in tank indoors or in enclosed,
poorly ventilated enclosures where fuel fumes may reach an
open flame, spark or pilot light as on a furnace, water heater,
clothes dryer, etc.
5. Always transport and store powerhead with powerhead in
an upright (operating) position, carburetor facing upward,
or engine spark-plug facing upward. Make sure powerhead
and drill assembly are properly anchored to prevent
damage.
MAINTENANCE AND ADJUSTMENTS
Check SPARK PLUG, periodically.
1. Before removing plug, wipe dirt and debris from spark plug
base.
2. Remove and inspect spark plug for carbon build up.
3. Replace spark plug if electrodes are pitted, burned, or
porcelain is cracked. For replacement use: Autolite® 4194
spark-plug or equivalent. Failure to use proper spark-plug
may result in engine damage.
4. Check spark-plug gap with wire feeler gauge and set gap
at .025”.
5. Install spark plug in engine and tighten securely and
reattach ignition wire to spark plug.
Check THROTTLE CONTROL AND CABLE periodically for proper
operation. Periodically, use silicon spray to lubricate throttle cable.
DO NOT use WD-40 because it will freeze.
AIR FILTER – The engine has an air cleaner which helps prevent
premature engine wear and failure. Never run an engine without a
complete, clean air filter properly installed. Clean or replace air filter
as needed.
REPLACEMENT TEETH – Improper or difficult cutting may be due
to dull or damaged drill teeth or drill point. Maintain sharp blade
teeth and point. Preserve the original factory cutting angles when
sharpening your drill. File blade teeth and use a disk sander to
sharpen the point. Only genuine Jiffy® blade teeth are to be used.
SERVICE & REPAIR INFORMATION

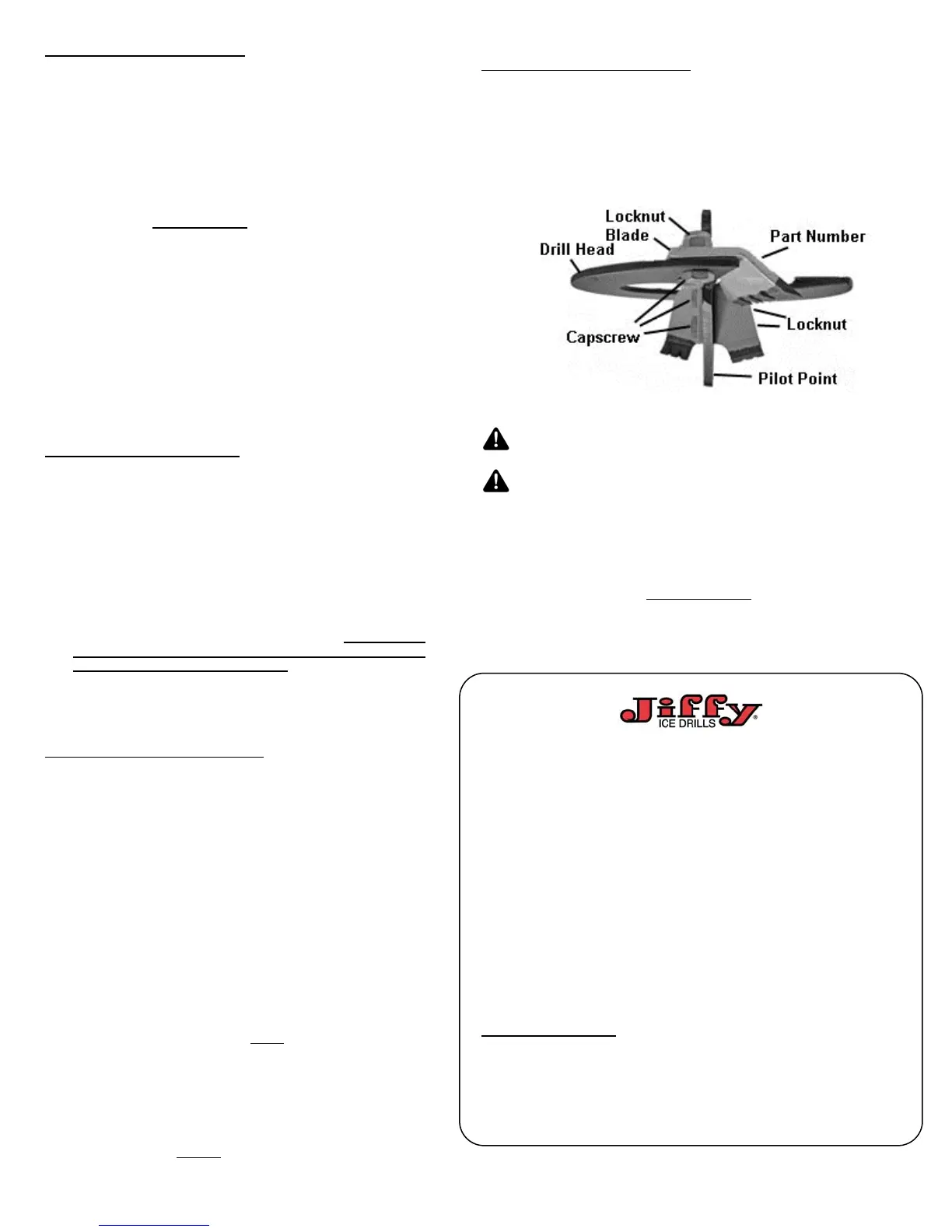

BLADE TEETH REPLACEMENT INSTRUCTIONS – When replacing blade
teeth, the beveled edge of teeth and the head of the capscrews should face
the ice. The stamped part number on the teeth should face away from the
ice, as shown in the diagram. Use two 7/16” wrenches to remove the
capscrews. When attaching blades, finger tighten all fasteners, then fully
tighten with wrenches.
CAUTION – THE BLADE TEETH ARE SHARP AND SHOULD BE
HANDLED CAREFULLY TO AVOID FLESH CUTS OR INJURY.
ENGINE SPEED – NEVER TAMPER WITH ENGINE SPEED
CONTROL SYSTEM, OVERSPEEDING THE ENGINE CAN BE
DANGEROUS AND MAY CAUSE PERSONAL INJURY OR DAMGE
TO UNIT. TAMPERING WITH ENGINE SPEED CONTROL SYSTEM
WILL VOID ENGINE WARRANTY.
For engine adjustments, repairs or warranty service not covered in this
manual, visit our web site at www.jiffyonice.com, visit one of our authorized
Jiffy service dealers or call our customer service number at 800-344-0712
Monday – Friday from 7:00 a.m. to 4:30 p.m. CST. When requesting
warranty service, Jiffy® ice drill proof of purchase (sales receipt) establishes
the date of sale and the start of the warranty period.
Blade Warranty
Instructions:
1. Please send the following information:
Name,
Address,
City, State/Province, Zip/Postal Code,
Country,
Telephone Number,
Email Address,
Date of Purchase
Jiffy® Serial Number
2. Send sales receipt, UPC label ( No Photocopies), three Stealth
STX™ Blades or the Ripper™ blade and $14.95 in US dollars
for return Shipping and Handling to:
Feldmann Engineering & Mfg. Co. Inc.
520 Forest Avenue
Sheboygan Falls, WI 53085 USA
Jiffy® Blade Warranty –
● One Time Sharpening or Replacement
● Expires Two Years after Date of Purchase
Please Allow 3 Weeks for Delivery!
