Jiffy 4G - Jiffy 4 G Ice Drill Parts List

-6-

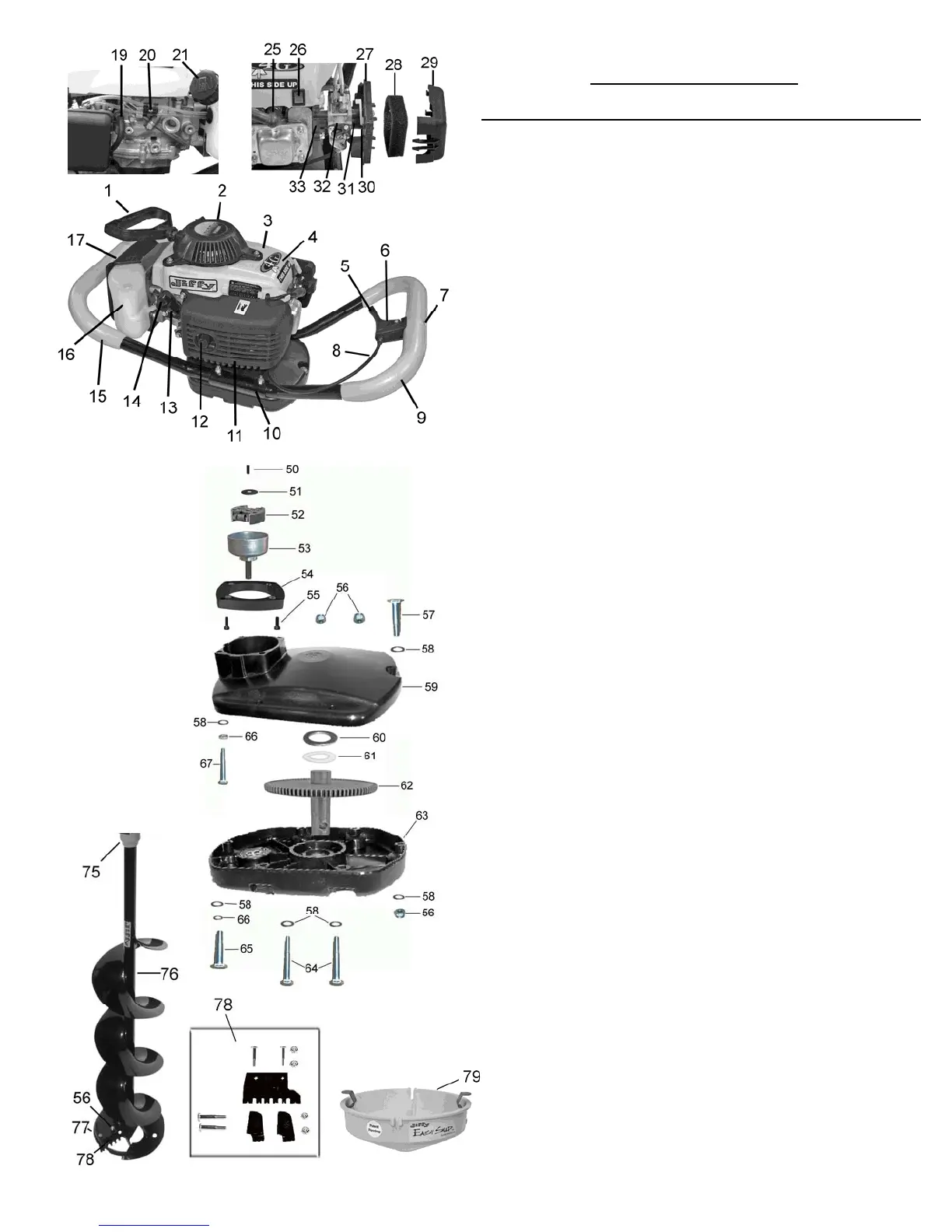

4GICEDRILLPARTSLIST
REF. # PART # DESCRIPTION #USED
1 4180 Mitten Grip Recoil Handle 1
2 4304 Recoil Assembly 1
3 4322 Yellow Engine Shroud 1
4 4327 Ignition Coil 1
5 4048-L Throttle Lever ONLY, included in #4048 1
6 4048 Throttle Control Assembly (lever and cable) 1
7 4170 Machine Screw for Cushioned Handles 1
8 4048-C Throttle Cable ONLY, included in #4048 1
9 4129 Cushion Wing Handle (Throttle Side) 1
10 3722 Handle Plate 2
11 4307 Muffler Cover 1
12 4306 Muffler 1
13 4349 Oil Fill Tube 1
14 4345 Oil-Fill Dipstick with O-Ring 1
15 4364 Cushion Wing Handle 1
16 4373 Fuel Tank with Fuel Lines 1
17 4069 Jiffy Billboard 1
19 4377 Breather Tube 1
20 4376 Fuel Line Support Clip 1
21 4468 Fuel Tank Cap 1
25 4290 Spark Plug 1
26 4323 On-Off Switch 1
27 4378 Inside Air Cleaner Cover with Choke Lever 1
28 4338 Foam Air Filter Element 1
29 4337 Outside Air Cleaner Cover 1
30 4321 Air Cleaner Gasket 1
31 4379 Air Cleaner Spacer 1
32 4381 Carburetor 1
33 4369 Carburetor Adaptor Kit 1
4474 Engine Hardware Kit
50 4049 Set Screw 1
51 2768 Clutch Washer 1
52 2383 Clutch Driver 1
53 3681 Clutch Drum & Pinion Assembly 1
54 3973 Engine Adaptor 1
55 4053 Sockethead Capscrew 4
56 2336 Locknut 7
57 3228 Hex Capscrew 1
58 1689 Flat Washer 11
59 3720 Upper Gear Case Assembly 1
60 1670 Flat Washer 1
61 3634 Teflon® Washer 1
62 3707 Main Gear & Shaft Assembly 1
63 3721 Lower Gear Case Assembly 1
64 3351 Hex Capscrew 4
65 1683 Hex Capscrew 1
66 1119 Lock Washer 5
67 1996 Hex Capscrew 4
75 3996 Replacement E-Z Connect™ Collar w/ Pin 1
76
3730-PRO 6” STX PRO Drill 1
“
3731-PRO 8” STX PRO Drill 1
“
3732-PRO 9” STX PRO Drill 1
“
3733-PRO 10” STX PRO Drill 1
77 2355 Hex Capscrew 2
78 3586-STX 6” STX Blade Kit 1
3588-STX 8” STX Blade Kit 1
“
3589-STX 9” STX Blade Kit 1
“
3590-STX 10” STX Blade Kit 1
79 3301 6” Blade Protector 1
“ 2120 8” Easy Snap™ Blade Protector 1
“ 2121 9” Easy Snap™ Blade Protector 1
“ 2205 10” Easy Snap™ Blade Protector 1
