Product assembly and
disassembly
Note: Cut off electricity before product assembly and
disassembly.

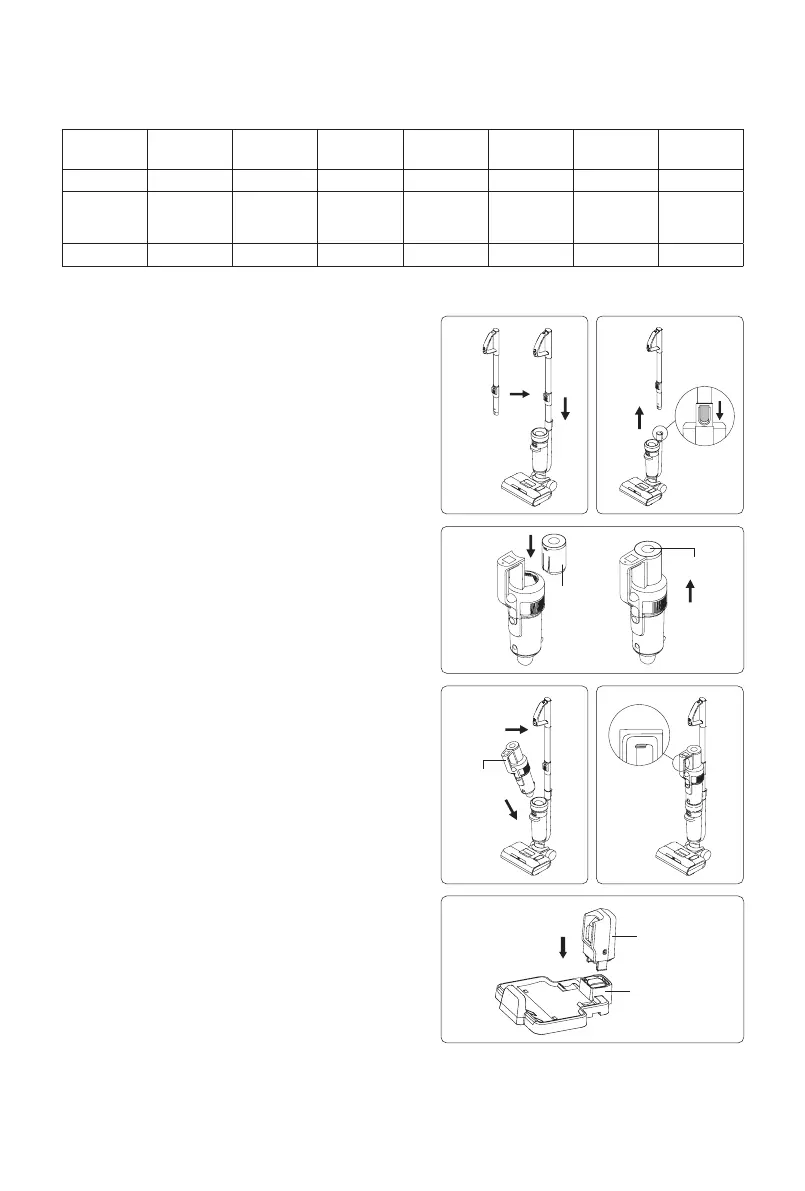

Metal tube assembly and disassembly
Insert the metal tube into the mainbody vertically
until a“click”sound is heard. Make sure metal
tube is rmly locked(Fig1). To remove the metal
tube, push the metal tube release button down
to the end and pull the metal tube upward.(Fig2)
Battery pack assembly and disassembly
1.Slide battery pack along the slot and press the
battery pack down firmly until a“click”sound is
heard. The battery pack is locked.
2.Press the battery pack release button and pull
the battery pack in the direction opposite to the
assembly to unlock the battery pack
.
(Fig3)
Note: Except for the replacement of the battery pack, the
battery pack doesn’t need to be taken out frequently.
Handheld vacuum cleaner assembly
Insert the dust cup suction inlet of the handheld
vacuum into the groove of the mainbody cover.
Push the handheld cleaner towards the metal
tube until a "click" sound is heard, the handheld
vacuum cleaner is installed successfully to
mainbody. And machine is used as a upright
vacuum cleaner at this time (Fig4). To remove
the handheld vacuum cleaner, just press the
handheld release button and lift the handheld
vacuum cleaner diagonally upwards. (Fig5)
Charge base assembly
Press charge base upper towards charge base
lower until a “click” sound is heard. (Fig6-1)
Packing List
Handheld
cleaner
Floorhead Metal tube
Battery
pack
Cleaning
solution
Adaptor
Carpet
brushroll
Cleaning
brush
1 1 1 1 1 1 1 1
Electric
mattress
head
Upholstery
tool
Crevice
tool
Charging
base upper
Charging
base lower
Holder 1 Holder 2
Instruction
Manual
1 1 1 1 1 1 1 1
1 2
4 5
Metal tube
release
button
Metal tube
3
Battery
pack
Battery pack
release button
Handheld
release
button
Handheld
vacuum
cleaner
6-1
Charging
base lower
Charging
base upper
To Next Page
