3
2
Battery
pack
Back cover
Product assembly and
disassembly
Note: Cut off electricity before product assembly and
disassembly.

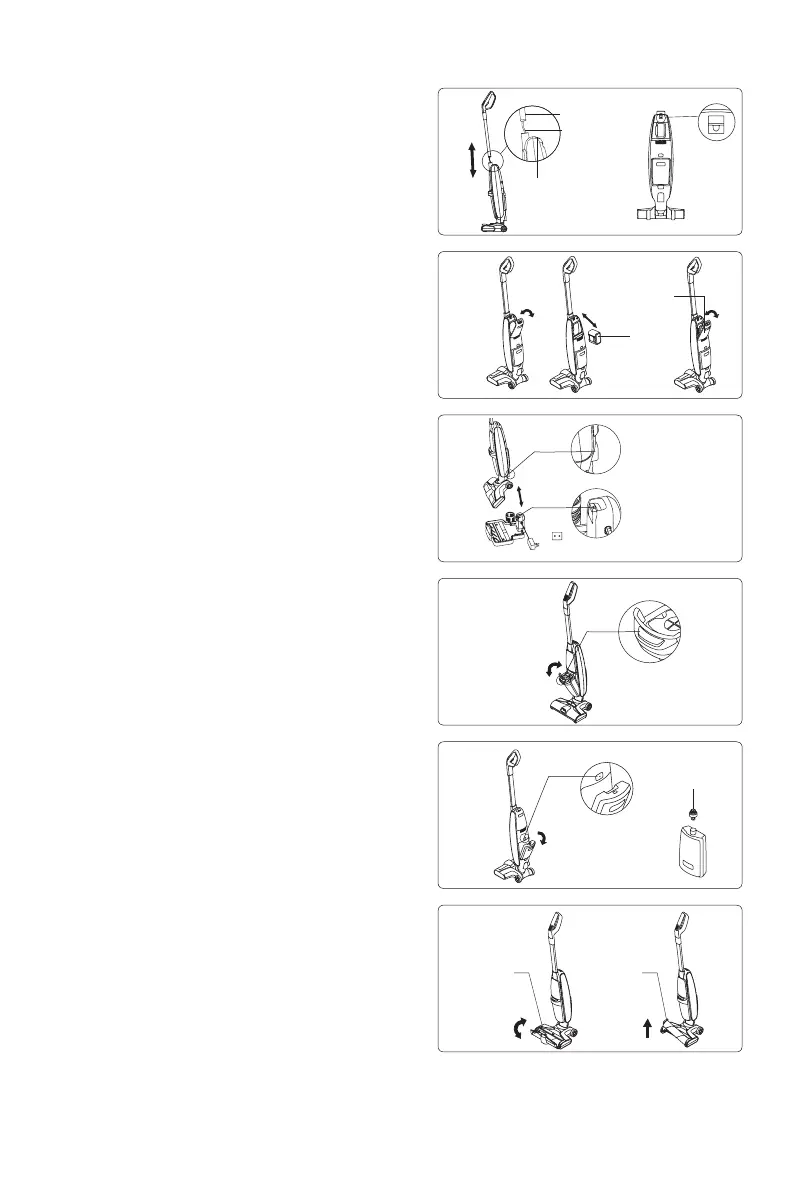

Handle assembly and disassembly
Insert the handle into the mainbody vertically until
a“click”sound is heard. Make sure handle is rmly
locked. To remove the handle, press back cover
latch to open back cover, use a tool like screw
driver to insert into the hole and pull out the handle
upward.(Fig 1)
Note:
1.Do not move the machine by dragging the looped wire to
avoid damaging the wire.
2.During assembly, the handle metal tube side with latch
need to face machine back.(Fig 1)
Assemble battery pack
Remove back cover, slide battery pack along the
slot into mainbody until to the bottom. Clip back
cover left and right clips into back body slots. Push
back cover latch to lock back cover until a “click”
sound is heard.(Fig 2)
Pick and place machine
To put machine back to charging base, hold
machine handle to lift the machine, let floorhead
drop down, aim charging slot on bottom of machine
to the charging pins on charging base and put the
machine into charging base. To use the machine,
hold machine handle and lift out machine from
charging base.(Fig 3)
Disassemble and assemble dirty water
tank
To take off dirty water tank, hold machine with one
hand and hold dirty water tank with another hand,
press dirty water tank release button to remove
dirty water tank. To assemble dirty water tank, place
dirty water tank bottom into mainbody, push dirty
water tank towards mainbody until a “click” sound is
heard.(Fig 4)
4
Dirty water tank
release button
Take out dirty
water tank
5
Dirty water tank
release button
Clean water tank
bottom cap
6
Pull brushroll
upward
Lift brushroll
handle
Charging slot
Charging pin
3
1
Handle
release
hole
Back cover latch
Looped wire
Metal tube latch
