JingYan TLL90S User Manual

2022 Aug 15
10
ALARM:
Angle Alarming

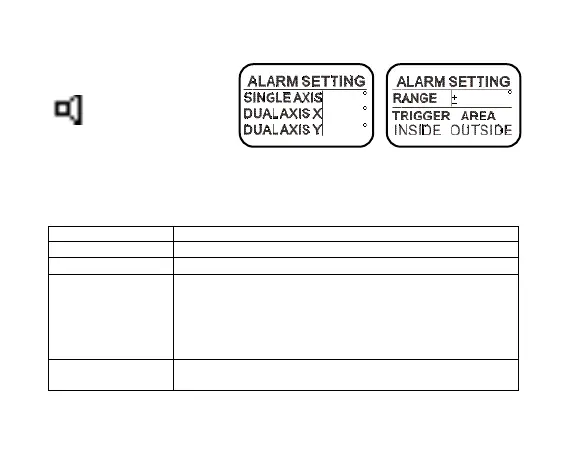

Alarming Mode:
LCD Icon:
Alarming Angle setting:
1. Press and hold “SET” / “ANGLE” key and enter MENU mode
2. Select “ALARM” by “ZERO” and “HOLD” key, press “SET” or “ANGLE” key to
enter Alarm Setting
Press and hold “ZERO” and “HOLD” key for fast scrolling the digit.
3. Press “SET” or “ANGLE” to enter setting value
SINGLE AXIS
Vertical / Single axis mode alarming angle (Degree)
DUAL AXIS X
Horizontal/ Dual axis mode X axis alarming angle (Degree)
DUAL AXIS Y
Horizontal/ Dual axis mode Y axis alarming angle (Degree)
RANGE
The range (Degree)that will trigger the audible alarming
For example: SINGLE. set to 20.000
RANGE set to 01.000
While the unit is in +19° to +21°or -19 ° to -21°, the unit will
alarm
TRIGGER AREA
INSIDE or OUTSIDE to set the alarm will alarm in of range
or out of range
