JLL RE100 Owner's Manual

- 2 -

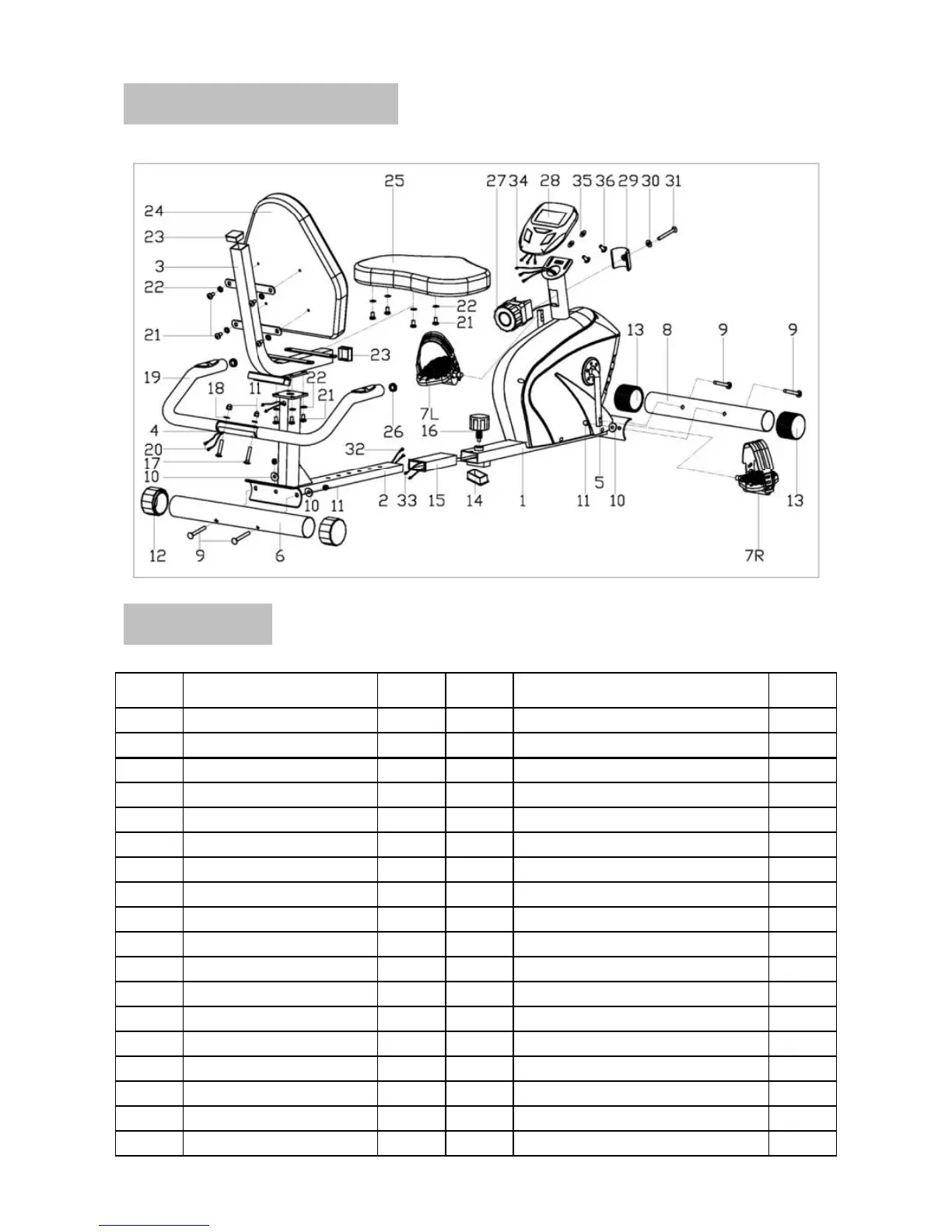

EXPLODED DIAGRAM
PARTS LIST
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
Front main frame
1
19
Foam grip
2
2
Rear main frame
1
20
Pulse sensor wire
2
3
Seat frame
1
21
Allen bolt
12
4
Armrest
1
22
Flat washer
12
5
Crank
1
23
Square end cap
2
6
Rear bottom tube
1
24
Backrest
1
7L/R
Pedals
1 pr
25
Seat
1
8
Front bottom tube
1
26
Round end cap
2
9
Carriage bolt
4
27
Tension controller
1
10
Arc washer
4
28
Computer
1
11
Acorn nut
6
29
Tension controller cover
1
12
Rear end cap
2
30
Flat washer
1
13
Front end cap
2
31
Phillips pan head screw
1
14
Square end cap
1
32
Extension Pulse wire
2
15
Plastic Bushing
1
33
Extension Pulse wire
2
16
Pop-pin knob
1
34
Sensor wire
1
17
Carriage bolt
2
35
Flat washer
2
18
Flat washer
2
36
Phillips pan head screw
2
