NOTE:

Most of the listed assembly hardwire has been packaged separately, but some

hardwire items have been preinstalled in the identified assembly parts. In these

instances, simply remove and reinstall hardwire as assembly is required.

Please reference the individual assembly steps and make note of all preinstalled

hardwire.

ASSEMBLY INSTRUCTION

Prior to assembly of this product, remove all components from the package and

verify all the listed parts are supplied. Once certain, begin with the first assembly

step.

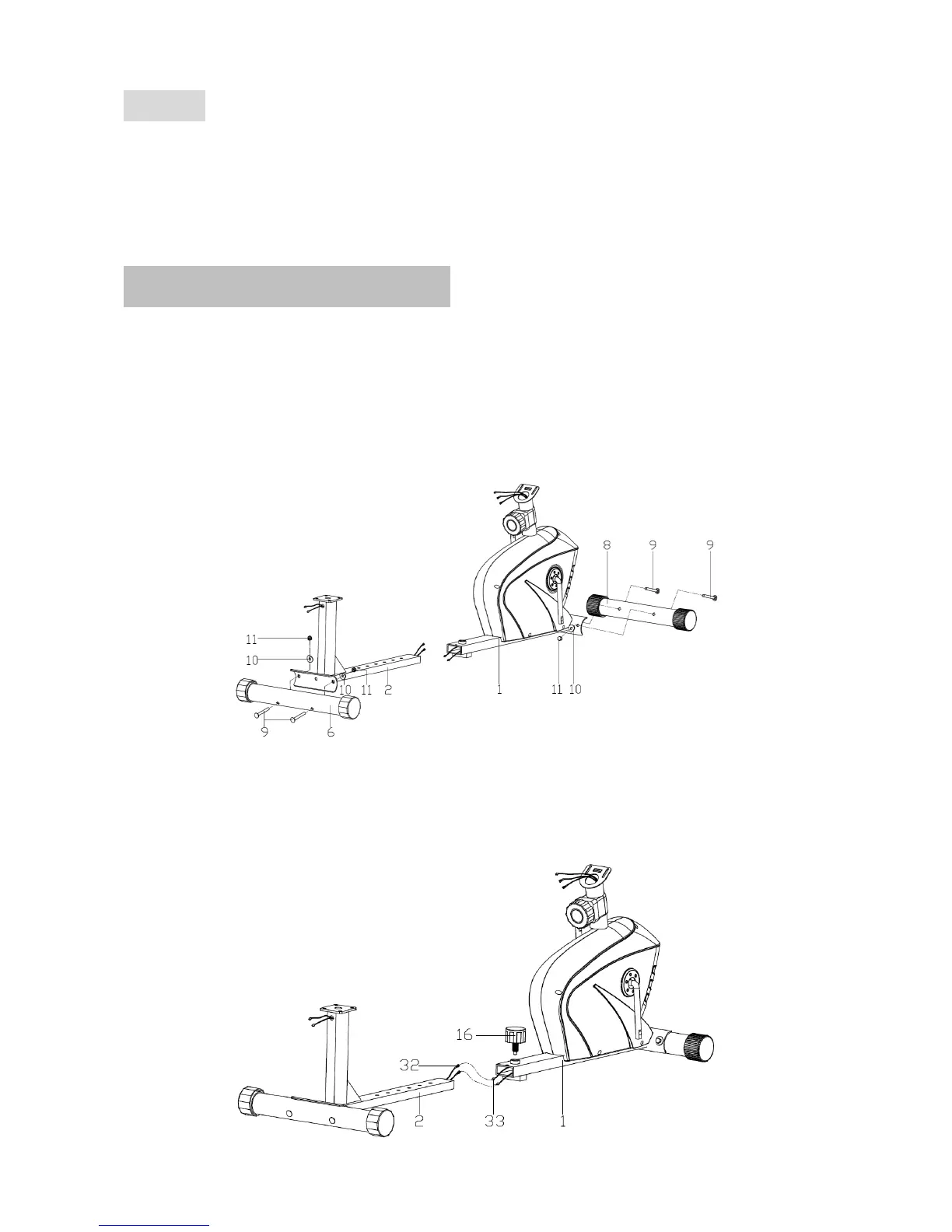

Step 1:

Fix front & rear Bottom tube (8 &6) onto front and rear Main frame (1 &2) respectively with

the Carriage bolts (9), Arc washers (10) and Acorn nuts (11) as shown.

Step 2:

Connect the Pulse extension wire (32) well with the extension wire (33), then loosen and

pull the Pop-pin knob (16) out and insert the rear Main frame (2) into the front Main frame

(1). Adjust to a suitable position for pedaling and fix it with the Pop-pin knob (16) as shown.
