- 4 -

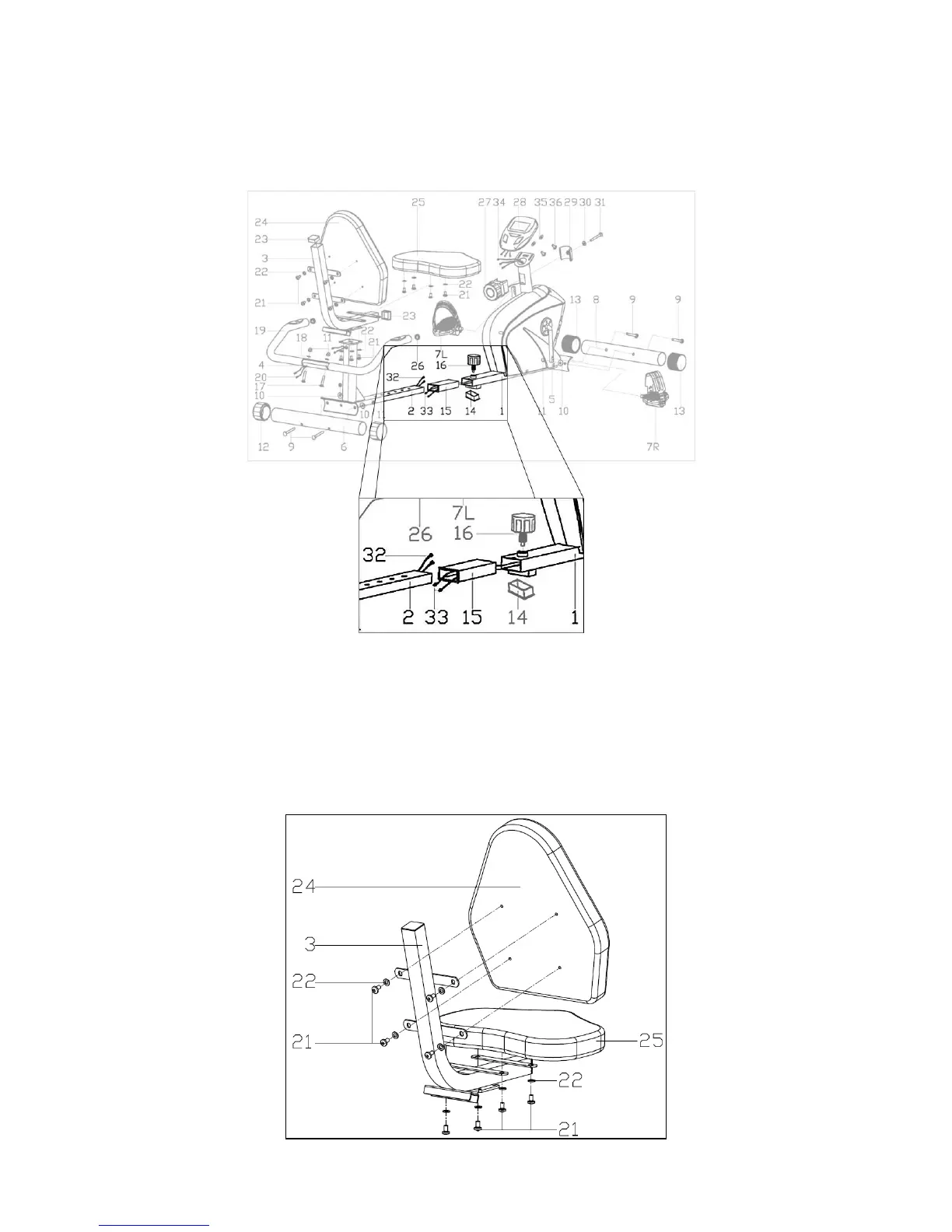

Note: Before slotting Part 2 into Part 15, the wire connections Part 32 and 33 will need to be

connected and gently pushed into Part 2. This will help avoid any unnecessary damage to

the wires during assembly.

Step 3:

Fix the Seat (25) and Backrest (24) onto the Seat frame (3) with the Allen bolts (21) and

Flat washers (22) as shown.
