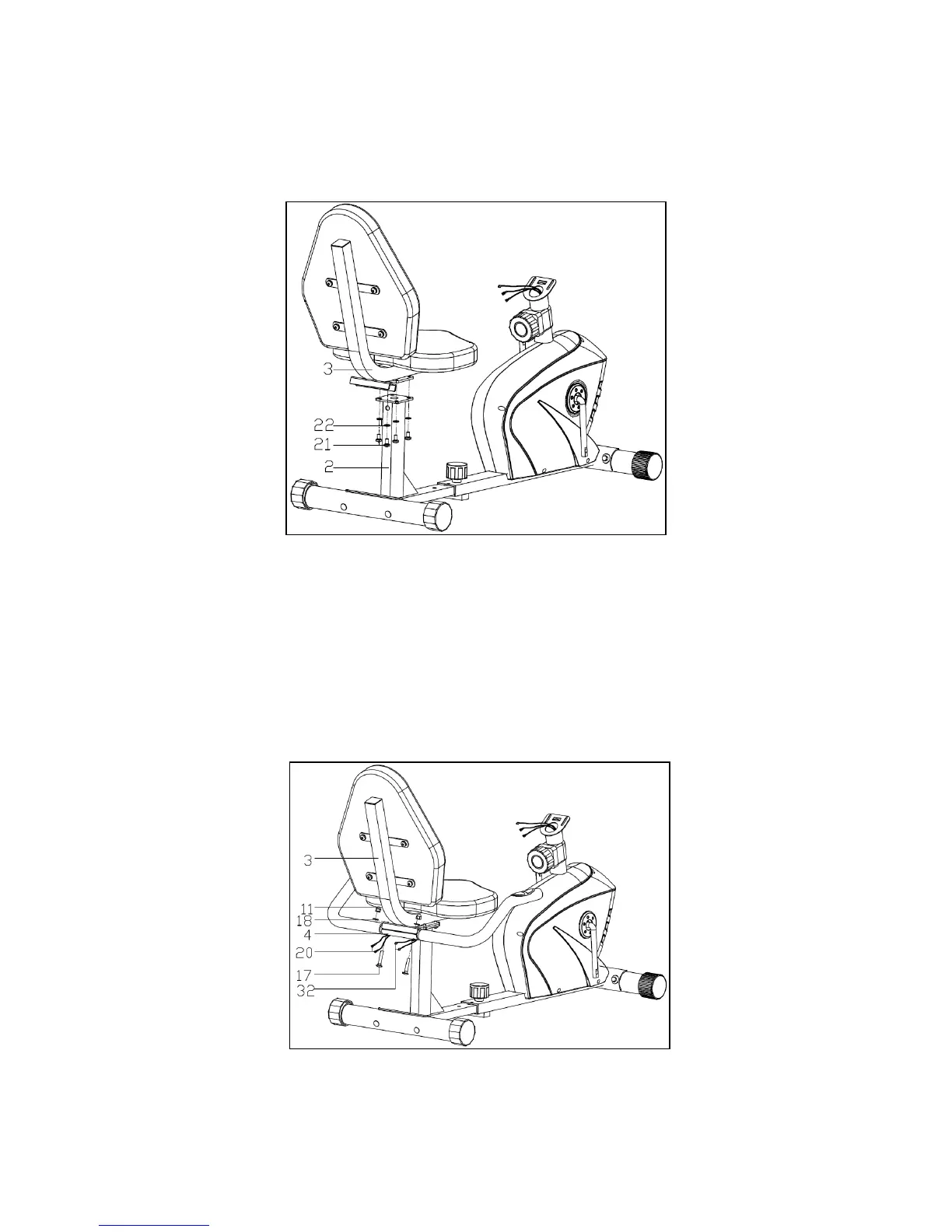

Step 4:

Fix the Seat frame (3) onto the rear Main frame (2) with the Allen bolts (21) and Flat

washers (22) as shown.

Step 5:

01- Fix the Armrest (4) onto the Seat frame (3) using the Carriage bolts (17), Flat washers

(18) and Acorn nuts (11) as shown;

02- Connect the Pulse sensor wires (20) well to the extension Pulse wires (32).
