JLL RE100 Owner's Manual

- 6 -

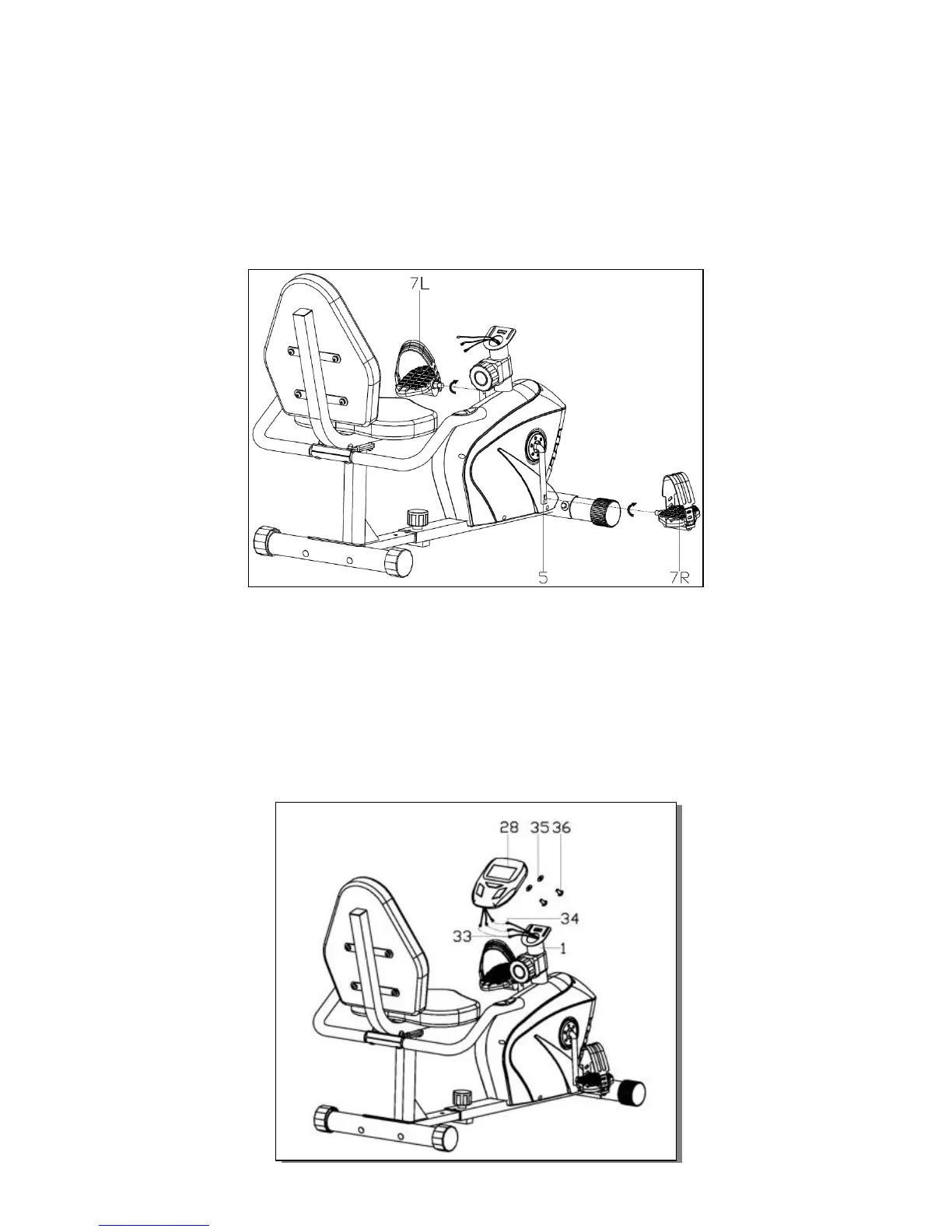

Step 6:
Attach the L/R Pedal (7L/R) to the Crank (5) respectively, viewed from the rider’s exercising
position.
Note: Both Pedals are labeled L FOR LEFT and R FOR RIGHT. To tighten turn the Left
pedal COUNTERCLOCKWISE and the Right pedal CLOCKWISE.
Make sure the Pedals (7L/R) have been securely locked before doing exercise.
Step 7:
Connect the Sensor wire (34) and extension Pulse wire (33) to the wires coming from
Computer (28) correspondingly, and then fix the Computer (28) on the computer bracket on
top of the front Main frame post (1) with the Phillips pan head screws (36) and Flat washers
(35) as shown.
