Installation Guide
MX/MC Model Brackets
Instructions for extension kit for MX08FIT265-01

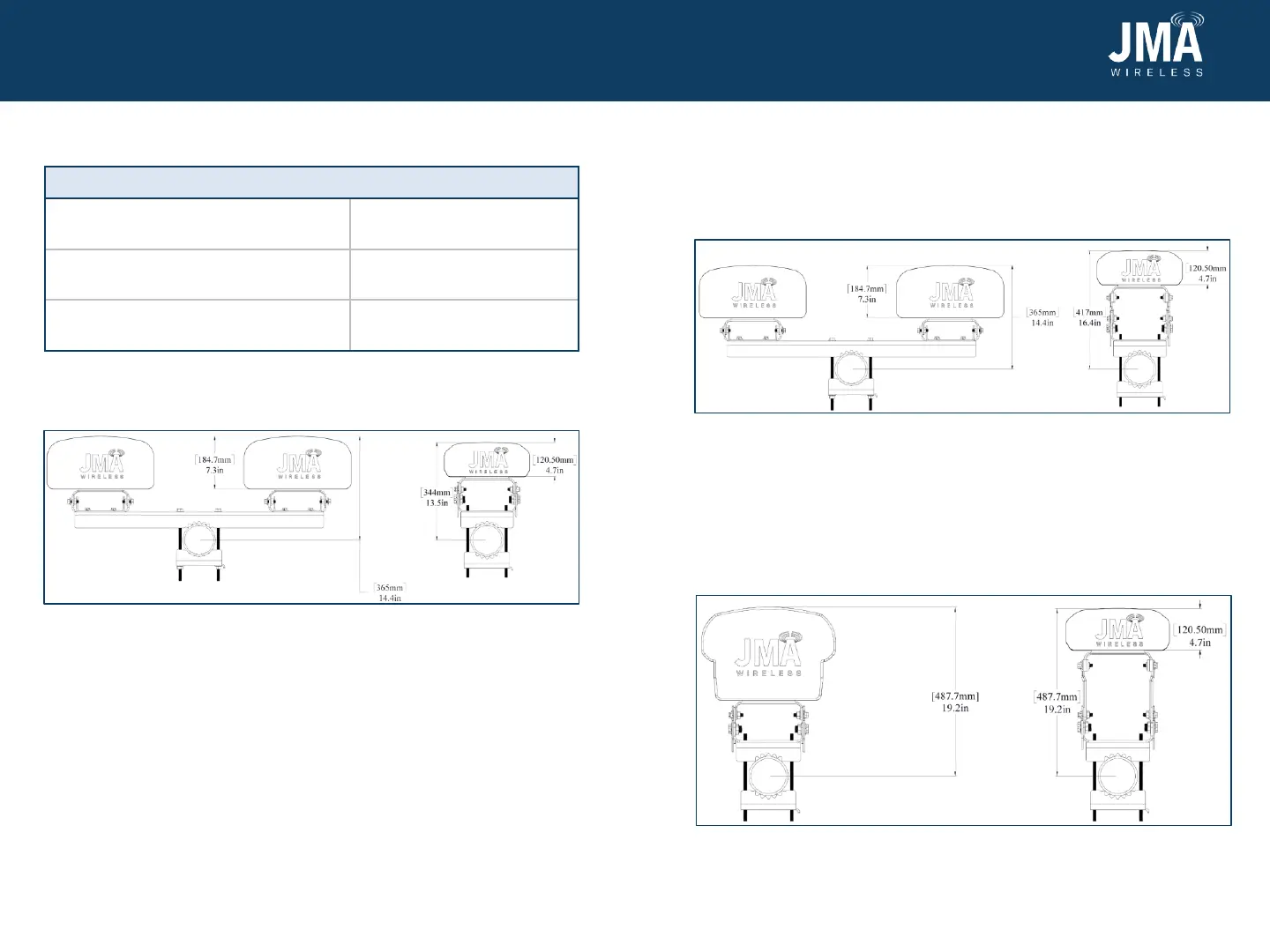

Bracket height differences:
Figure 1: With the 91900318 standard macro bracket kit
(bracket attached to 4.5” diameter pole in this example)
4 5
Figure 2: With the 91900330 extension kit using a shorter bracket
45700563-01 (bracket attached to 4.5” diameter pole in this
example)
The shorter bracket in this kit, 45700563-01, will be used to bring the
MX08FIT265-01 in line with all the MX10 antenna series (7.5” depth) as
shown below in Figure 2. This will allow the MX08FIT265-01 to be at a
total height of 16.4” from the center of the pole.
Figure 3: With the 91900330 extension kit using a longer bracket
45700563-02 (bracket attached to 4.5” diameter pole in this
example)
The longer bracket in this kit, 45700563-02, will be used to bring the
MX08FIT265-01 in line with all the Gen 2 MX06 antenna series (10.7”
depth) as shown below in Figure 3. This will allow the MX08FIT265-01
to be at a total height of 19.2” from the center of the pole. This works
with single-mount bracket kits or dual-mount brackets for the Gen 2
MX06 antenna series.
Bracket kit Total height of MX08
Standard bracket kit
(See Figure 1)
13.5”
91900330 using 45700563-01
(shorter bracket) (See Figure 2)
16.4”
91900330 using 45700563-02
(longer bracket) (See Figure 3)
19.2”
Table 1: Bracket differences
MX08FIT265-01
MX08FIT265-01
MX08FIT265-01
Example: MX10 series
Example: MX10 series
Example: MX06 series
