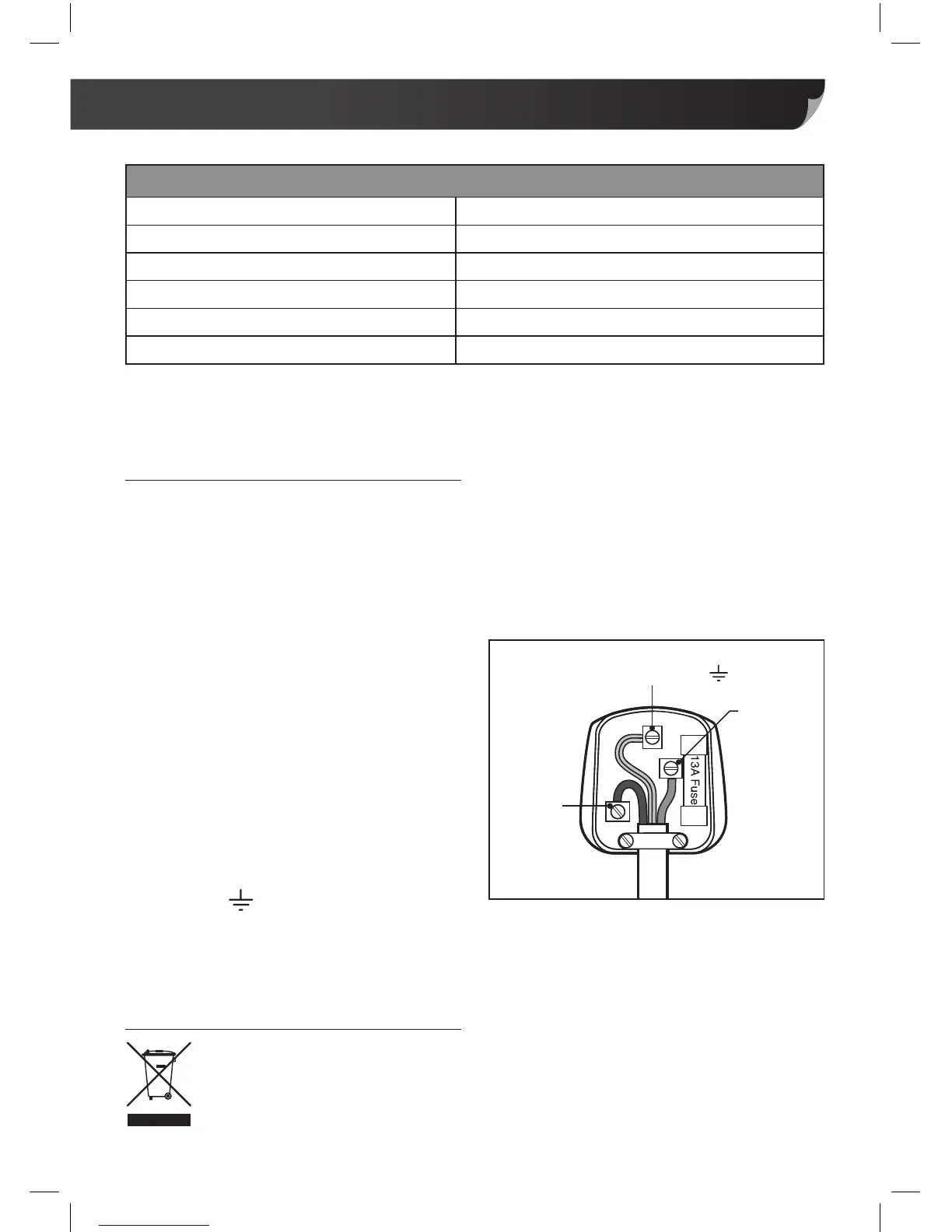

Connect green/yellow
lead to ‘E’ or - Earth
Connect
blue lead
to ‘N’ -
Neutral
Connect
brown lead
to ‘L’ - Live
N
L
E
9
Technical Specifications
Cord length 2.44m
Steam output 24.5g/min
Tank size 380ml
Power consumption 2200W
Power supply 220-240V ~ 50Hz
Model LB-113
Fuse & mains plug replacement
(UK & Ireland only)
This appliance is fitted with a BS 1363 13-amp
plug. If you have to replace the fuse, only use
those that are AS TA or BSI approved to BS
1362 and have a rated current of 13 amps.
Should you need to replace the plug; the
wires in the power cord are coloured in the
following way:
Blue – Neutral
Brown – Live
Green & Yellow – Earth
As the colours of the wires in the power
cord may not correspond with the coloured
markings identifying the terminals in your
plug, proceed as follows:
The wire that is coloured green & yellow
must be connected to the terminal in the
plug that is marked with the letter E or by the
earth symbol
.
Disposal and the environment
This product is covered by the waste electrical and electronic equipment
(WEEE) regulations. It should not be discarded with normal household waste,
but taken to your local collection centre for recycling. For further information,
please contact your local authority or approved disposal agency.
Technical Information
The wire that is coloured blue must be
connected to the terminal that is marked
with the letter N.
The wire that is coloured brown must be
connected to the terminal that is marked
with the letter L.
If the power lead is damaged, it must be
replaced by a qualified electrician.
PG_IM_A.indd 11 23/06/2014 15:22
