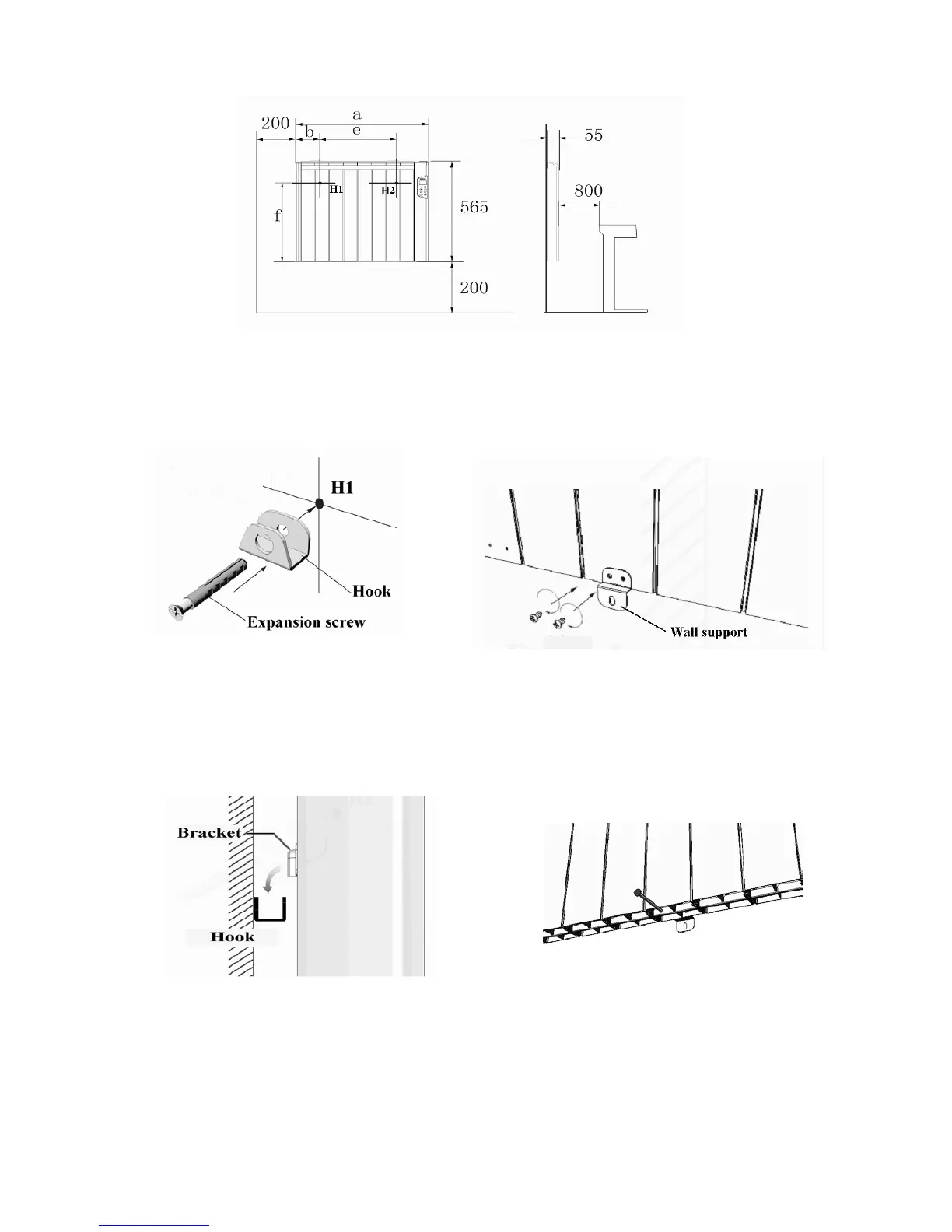

• Fix two hooks in the wall at positions H1 and H2 with expansion screws ( figure 3).
• Screw the wall support onto the unit by two holes on the bottom rear of the unit (as shown in
figure 4). This operation must be performed when the heater is installed on the wall. So that the
plate with a single hole is leaning against the wall.
• Hang the unit on the hooks ( shown in figure 5).
• Once hung the unit on the wall, mark the free hole of the wall support (shown in figure 6).
• Remove the unit from the wall, make a hole (diameter: 8mm; depth: 30mm) at the mark and
insert the plastic tube for screw.
• Finally hang the heater on the hooks and screw the wall support to the wall firmly (shown in
figure 6).
-19-
图 2
Figure 3
Figure 5 Figure 6
Figure 2
Figure 4
