Jocel JPK4EV200150 - Hob Fixing and Installation; Locating and Securing Fixing Brackets

23
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 5mm

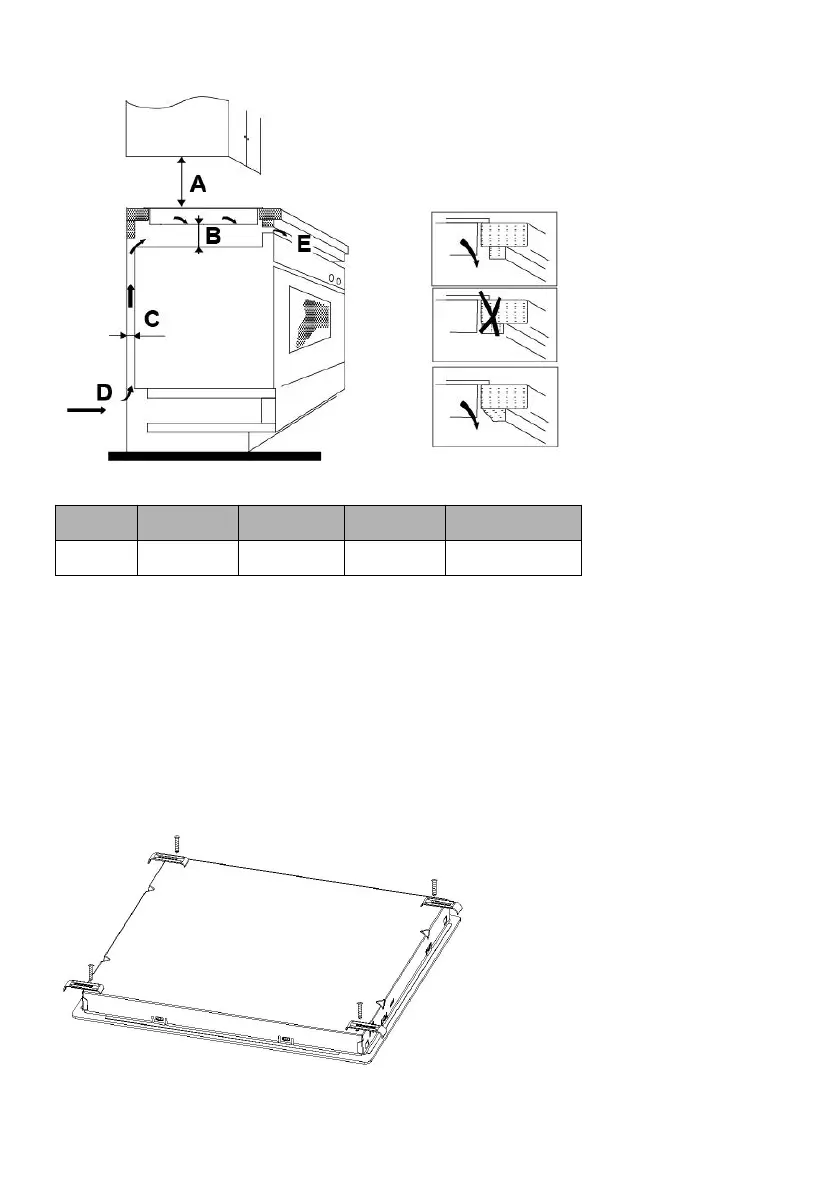

Locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the hob.
Fix the hob on the work surface by screw four brackets on the bottom of hob (see
picture) after installation.
Adjust the bracket position to suit for different work surface’s thickness.
