§ i 4-way programming connector for workshop coin programming and
reloading programs.
§ 4 switches used to disable coins, modify acceptance tolerances and field
programming of new coins. The switches can also include other functions
that will depend on the recorded application.

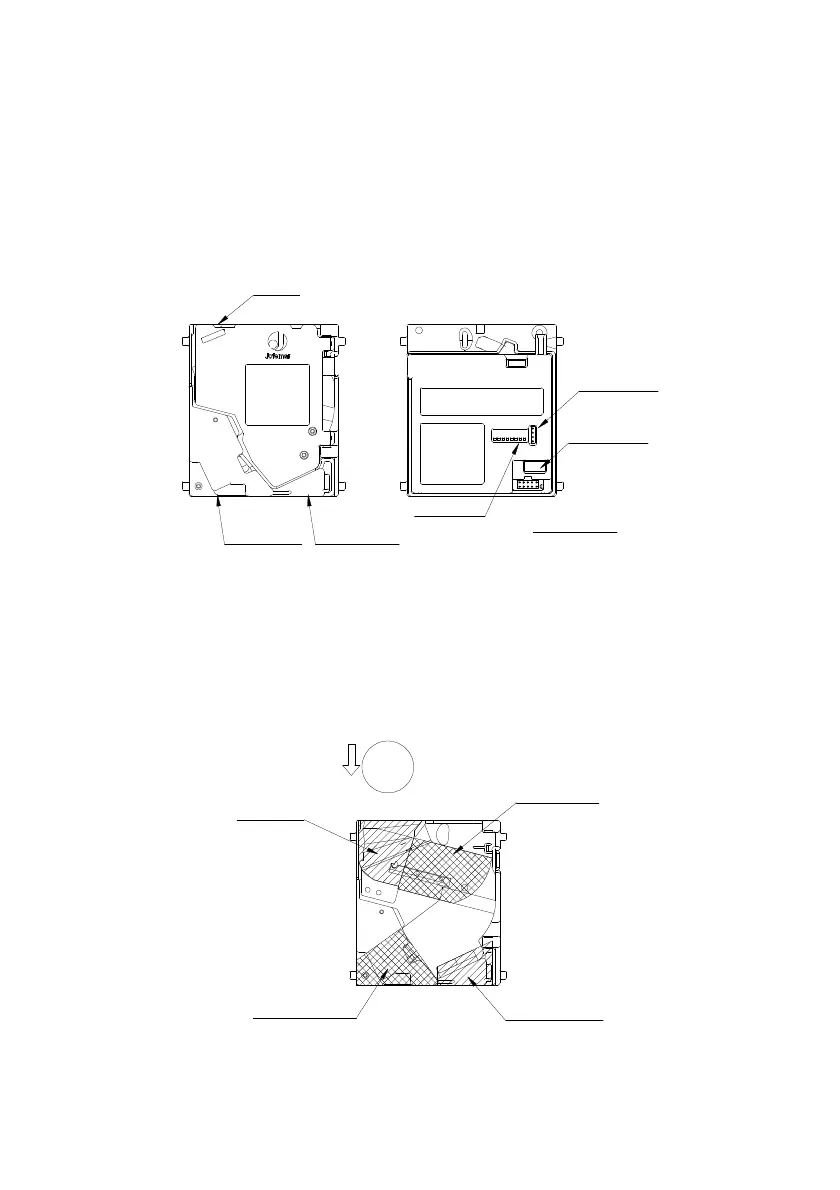

The following diagram shows these components:
COIN
ENTRY
ACCEPTED
COINS
REJECTED
COINS
RECORDING
CONNECTOR
MAIN
CONNECTOR
CCTALK
CONNECTOR
SWITCHES
.
The following figure has a detailed view of the connectors used for connecting the unit
to the vending machine:
3.1. Cleaning.
F Clean coin entry, coin testing, coin validation and coin rejection areas regularly to
prevent legal tender coins from being rejected. First use a moist cloth and then a wipe
with a dry cloth to ensure no humidity remains on cleaned surfaces.
COIN REJECTION
AREA
T15
COIN TESTING
AREA
COIN ENTRY
AREA
COIN VALIDATION
AREA
