Models EELR538A and EELR539A
Models EELR540A and EELR541A
Installation, Operation and Maintenance
Page 17
Rev. 08/27/2021
15-18000-IOM-W.doc
PARTS BREAKDOWN (continued)

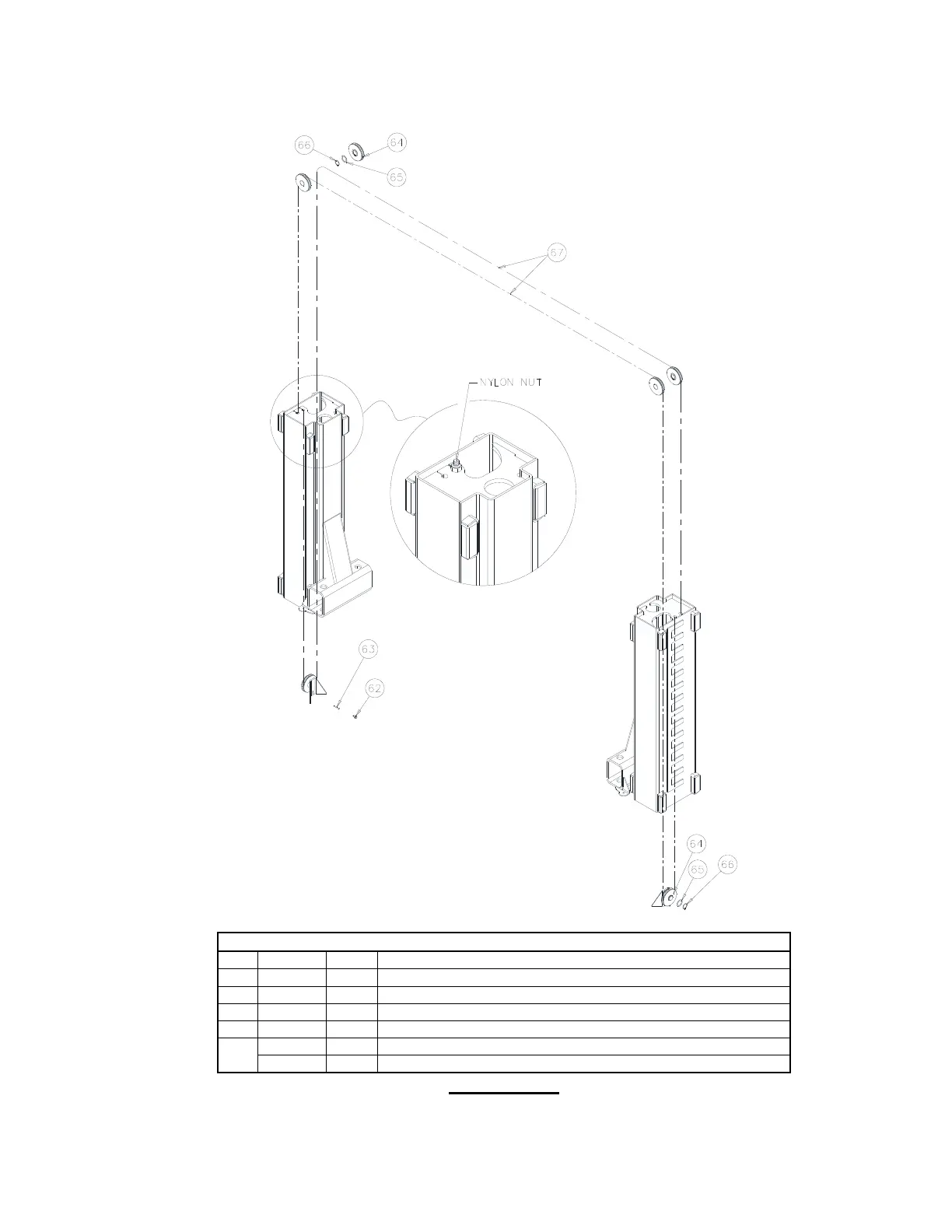

Fig D. Synchronizer
ITEM #
PART # QTY/LIFT
DESCRIPTION
62
A1153 2
3/8-16 x 3/4" Lg. LOCK HEX FLG. HD.CAP SCREW
63
A2158 2
Ø1/4” x 1 3/4” Lg. CLEVIS PIN
64
31019 6
PULLY ASSEMBLY
65
31020 6
WASHER
66
31021 6
1 3/8” RETAINING RING
67
12100PR 2
SYNC. CABLE ASSEMBLY (14’-6” O.A. Ht.)
12019PR 2
SYNC. CABLE ASSEMBLY (16’-6” O.A. Ht.)
IMPORTANT
Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local
Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501)
450-1500 for the distributor in your area.
