John Bean EELS906A - Jack Beam Assembly: Arm Exploded View; Jack Beam Assembly: Arm Part List

16 of 22
DECEMBER 2022 REV. D
EAZ0080V72A

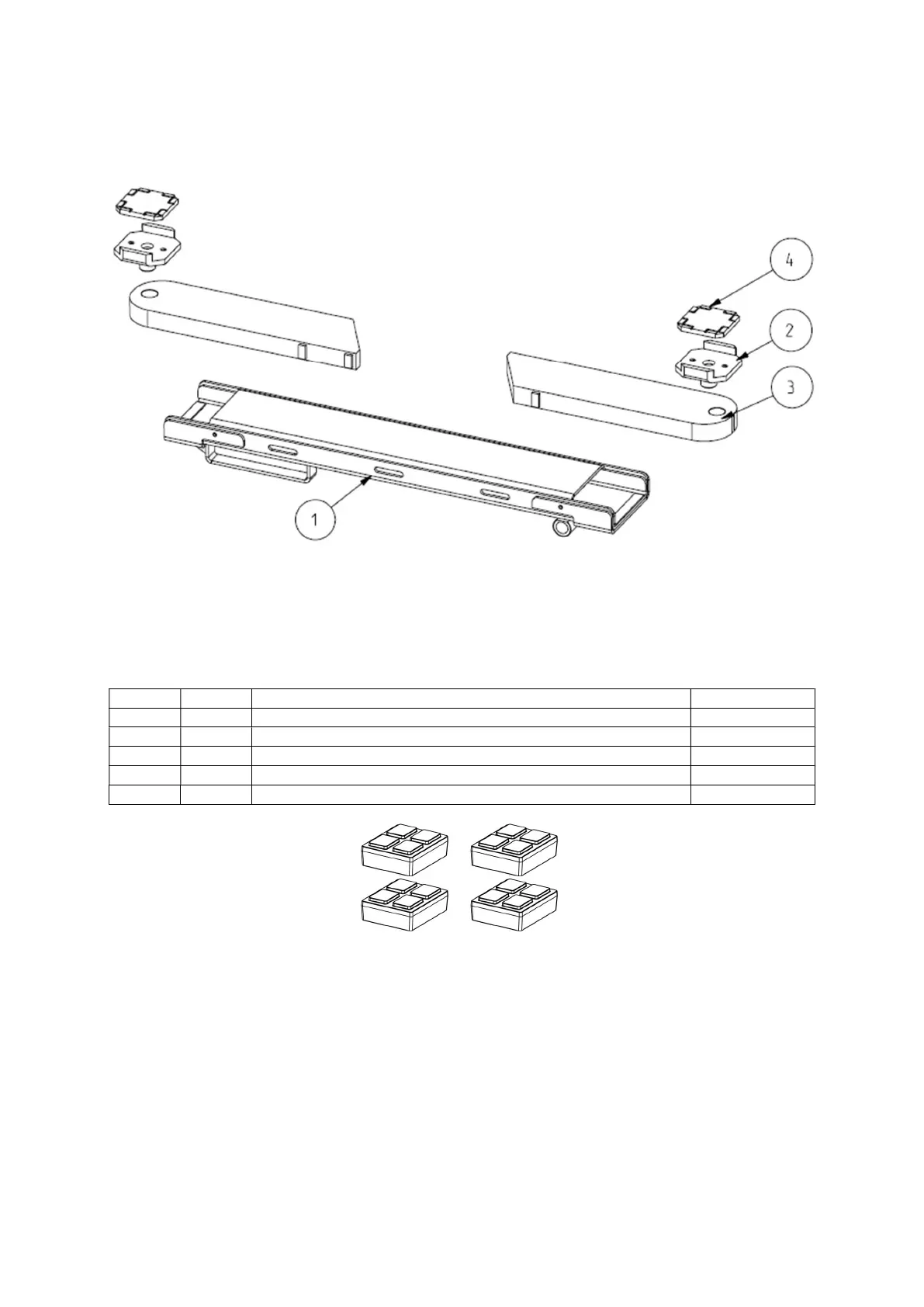

12.0 Jack Beam Assembly: Arm Exploded View
13.0 Jack Beam Assembly: Arm Part List
ITEM
QTY.
DESCRIPTION
PART #
1
1
TOP FRAME WELDMENT
EAS2242V10A
2
2
PLATED STACK PAD
EAS2242V14A
3
2
JACK BEAM
ARM WELDMENT
EAS2242V12A
4
2
RUBBER BLACKET
A1104
-
H
OPT
4
STACKABLE INTERLOCKING RUBBER PAD (OPTIONAL)
6
-
4025
6
-
4025
