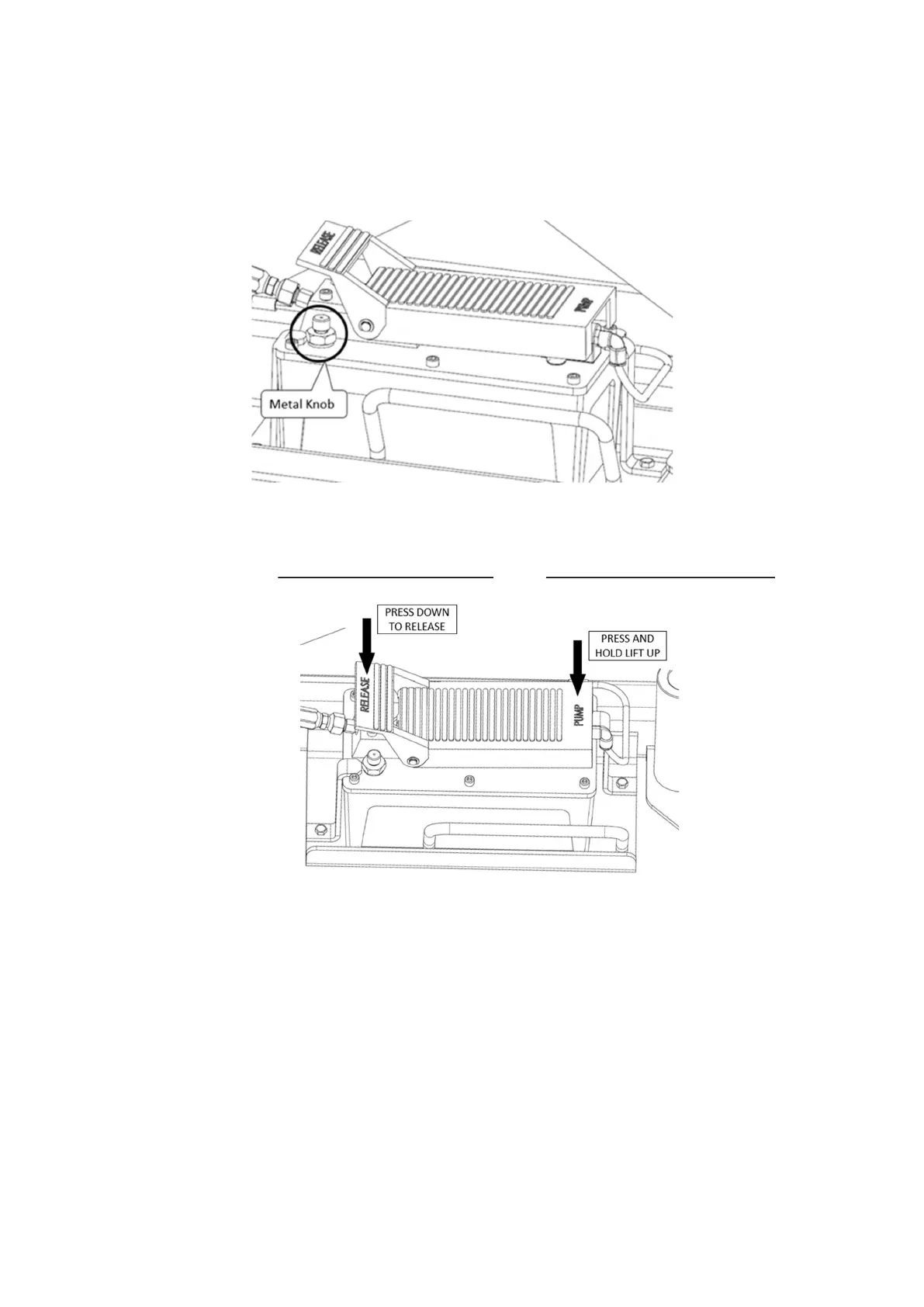

3. To prevent oil leaks during shipment, a metal air bleed knob is installed and
tightened to ensure a good seal. Loosen it by turning counterclockwise before
use.
4. Prior to placing vehicle on lift, raise and lower the Jack Beam multiple times and
check for air and hydraulic leaks.
5. See sections “5.0 Raising the Jack Beam” and “6.0 Lowering the Jack Beam” for
operation instructions.
6. Adjust the lock pawl handle.
a. Confirm the lock pawl is engaged properly on the third lock position. See
sections “5.0 Raising the Jack Beam” and “6.0 Lowering the Jack Beam”
for operation instructions
b. Adjust the shim to contact the extension rod tightly.
c. Tighten two nuts.
d. Check the lock pawl seats properly against the scissor lock on a weekly
basis. If needed, repeat a, b, c steps.
