- Page 19 -
EHP Series Operation Instructions
333

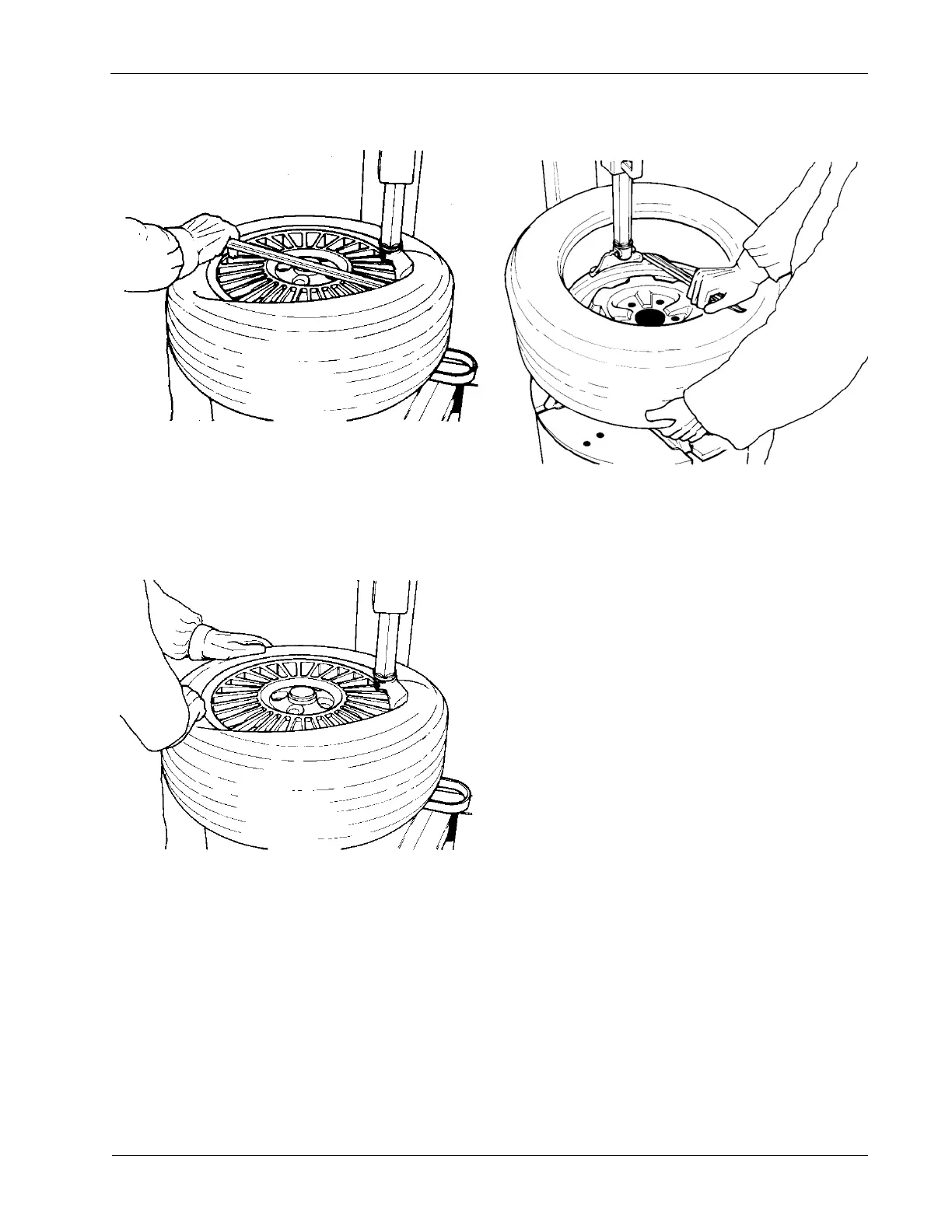

Fig.15
G. Rotate the turntable clockwise (pedal down) and, at
the same time, push down on the tire sidewall to move
the bead into the drop center of the rim (Fig.16).
334
Fig.16
H. Repeat the process for removing the lower bead.
This time, lift the bead opposite to the mount/demount
head to keep it in the drop center (Fig.17).
Move the swing arm aside and remove the tire.
335
Fig.17
