EHP Series Operation Instructions
5.0 DEMOUNTING TUBE-TYPE TIRES
A. For breaking the bead operate as described for the
tubeless tires in section 4.1.A to 4.1.F.
In this case the valve is part of the tube.
NOTICE!
BE CAREFUL NOT TO DAMAGE THE TUBE DURING THE
BEAD-BREAKING OPERATION. THE VALVE SHOULD BE
OPPOSITE TO THE BLADE OF THE BEAD BREAKER.
B. To demount the first bead, place the valve at 2 o’clock
position.
NOTICE!
BE CAREFUL NOT TO CATCH THE TUBE WITH THE
MOUNT/DEMOUNT TOOL, WHEN LIFTING THE BEAD ON
THE MOUNTING FINGER.
After demounting the first bead carefully, remove the
tube before demounting the second bead, as described
in section 4.1.
5.1 MOUNTING TUBE-TYPE TIRES
A. Perform steps described in section 4.2.A.
DO NOT lubricate the tube. Talc can be used to assist
with tire positioning if necessary.

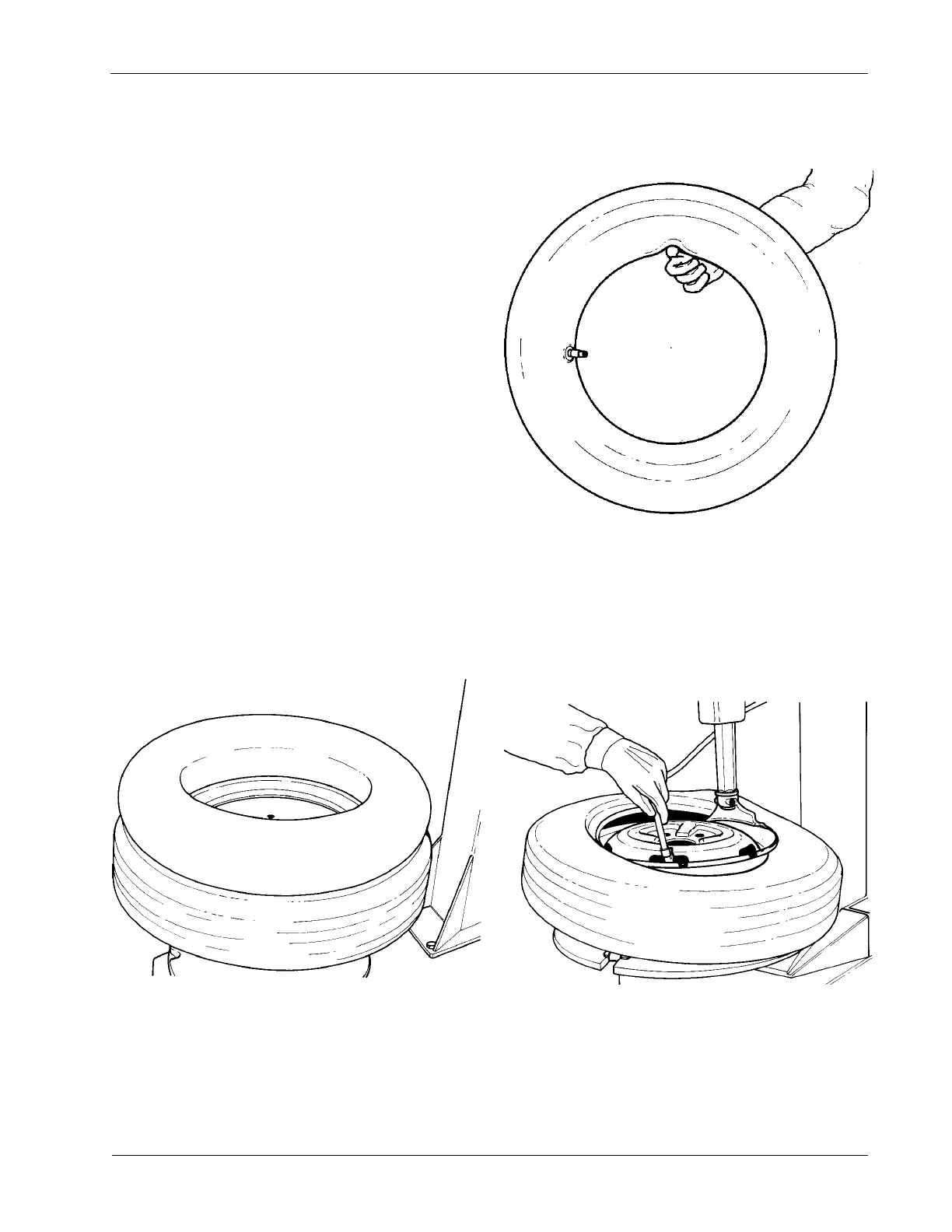

B. Confirm that the tube is the correct size for the tire to
be mounted. (Fig.23).
341
Fig.23
C. Inflate the tube slightly: if held with the index finger it
should bend a little (Fig.24).
342
Fig.24
D. Mount the first bead as described in section 4.2.B.
Put the tube inside the tire and connect the inflation air
line to the tube valve to hold the tube in place. (Fig.25).
Mount the top bead following the directions above.
343
Fig.25
