JOHN BLUE 8L - Page 9

9

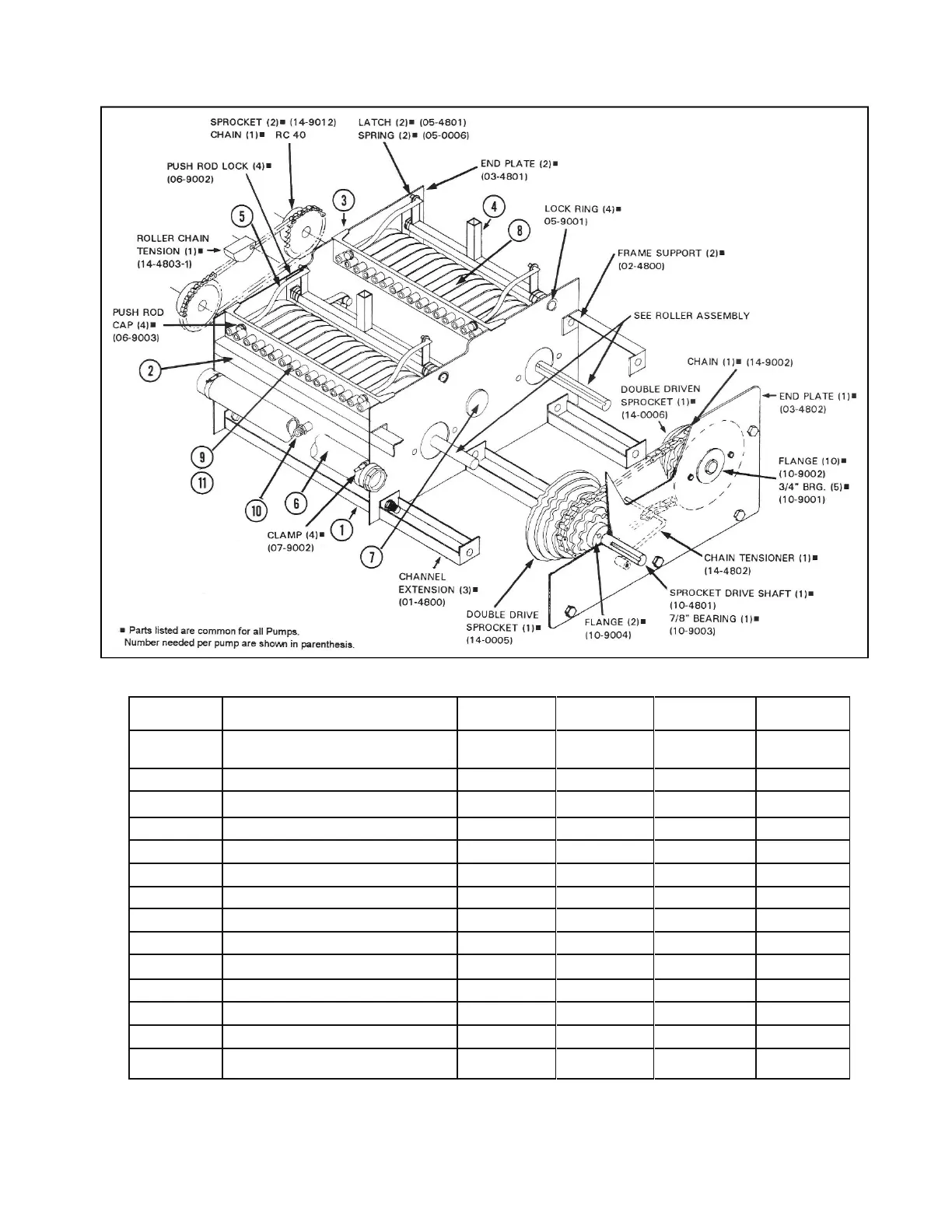

PARTS LIST:
DOUBLE SQUEEZE TUBE PUMPS
Item Description 24LD 32BD-1 40BD-1 48BD-1
1
Base Channel (3)
01-1220
01-1610
01-1620
01-2410
2
Frame Support Bar (2)
02-1220
02-1610
02-1620
02-2410
3
Outlet Fitting Rack (2)
04-1220
04-1610
04-2010
04-2410
4
Tube Tension Bar (2)
05-1220
05-1610
05-2010
05-2410
5
Push Rod (4)
06-0021
06-0011
06-0011
06-0011
6
Manifold - Front
07-1220
07-3211
07-2010
07-2410
7
Manifold - Center
07-2420
07-3212
07-4010
07-4812
8
Squeeze Tube*
08-0020
08-0010
08-0010
08-0010
9
Outlet Fitting * Plastic
08-0022
n/a
n/a
n/a
Outlet Fitting * SS
n/a
08-0013
08-0013
08-0013
10
Inlet Fitting * Plastic
08-0021
n/a
n/a
n/a
Inlet Fitting * SS
n/a
08-0015
08-0015
08-0015
11
SS Screw Clamps
08-9004
08-9003
08-9003
08-9003
Manifold Plug*
08-9002
08-9001
08-9001
08-9001
*Requirements based on number of outlets
