JOHN BLUE 8L - Parts Lists

8

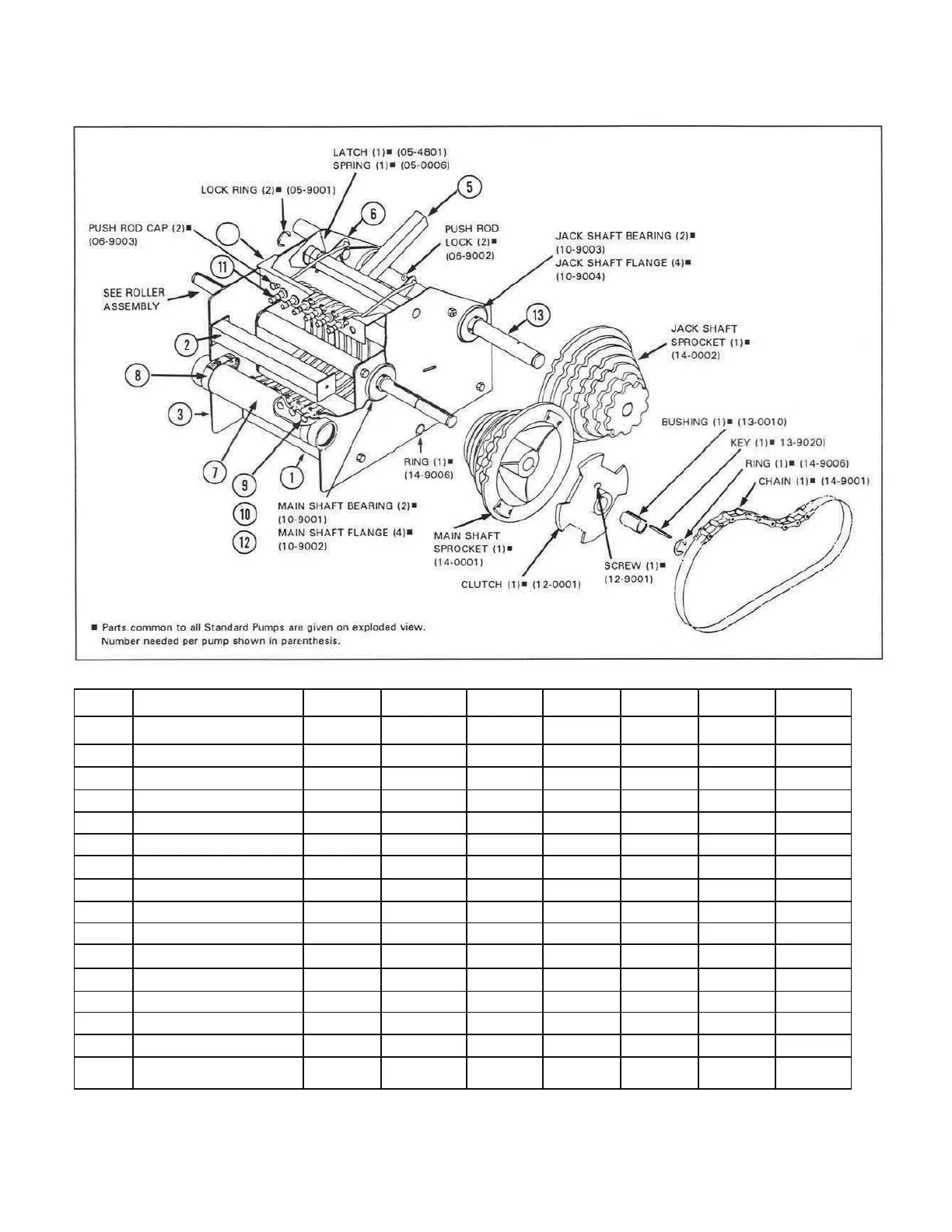

PARTS LIST:
STANDARD SQUEEZE TUBE PUMP
Item #
Description
24B-1
16L
16B-1
12L
12B-1
8L
8B-1
1
Base Channel (2)
01-2410
01-1620
01-1610
01-1220
01-0820
01-0820
01-0810
2
Frame End Support
02-2410
02-1620
02-1610
02-1220
02-0820
02-0820
02-0810
3
Frame End Plate (2)
03-2410
03-2410
03-1610
03-2410
03-1610
03-1610
03-1610
4
Outlet Fitting Rack
04-2410
04-1620
04-1610
04-1220
04-1210
04-0820
04-0810
5
Tube Tension Rack
05-2410
05-1620
05-1610
05-1220
05-1210
05-0820
05-0810
6
Push Rod (2)
06-0011
06-0021
06-0011
06-0021
06-0011
06-0021
06-0011
7
Supply Manifold
07-2410
07-1620
07-1610
07-1220
07-1210
07-0820
07-0810
8
Manifold Clamp (2)
07-9002
07-9002
07-9001
07-9002
07-9001
07-9001
07-9001
9
Squeeze Tube*
08-0010
08-0020
08-0010
08-0020
08-0010
08-0020
08-0010
10
Inlet Fitting * Plastic
n/a
08-0021
n/a
08-0021
n/a
08-0021
n/a
Inlet Fitting * SS
08-0015
n/a
08-0015
n/a
08-0015
n/a
08-0015
11
Outlet Fitting *
n/a
08-0022
n/a
08-0022
n/a
08-0022
n/a
Outlet Fitting * SS
08-0013
n/a
08-0013
n/a
08-0013
n/a
08-0013
12
SS Screw Clamps*
08-9003
08-9004
08-9003
08-9004
08-9003
08-9004
08-9003
13
Jack Shaft
10-2411
10-1621
10-1611
10-1221
10-0821
10-0821
10-0811
Manifold Plug*
08-9001
08-9002
08-9001
08-9002
08-9001
08-9002
08-9001
*Requirements based on number of outlets
