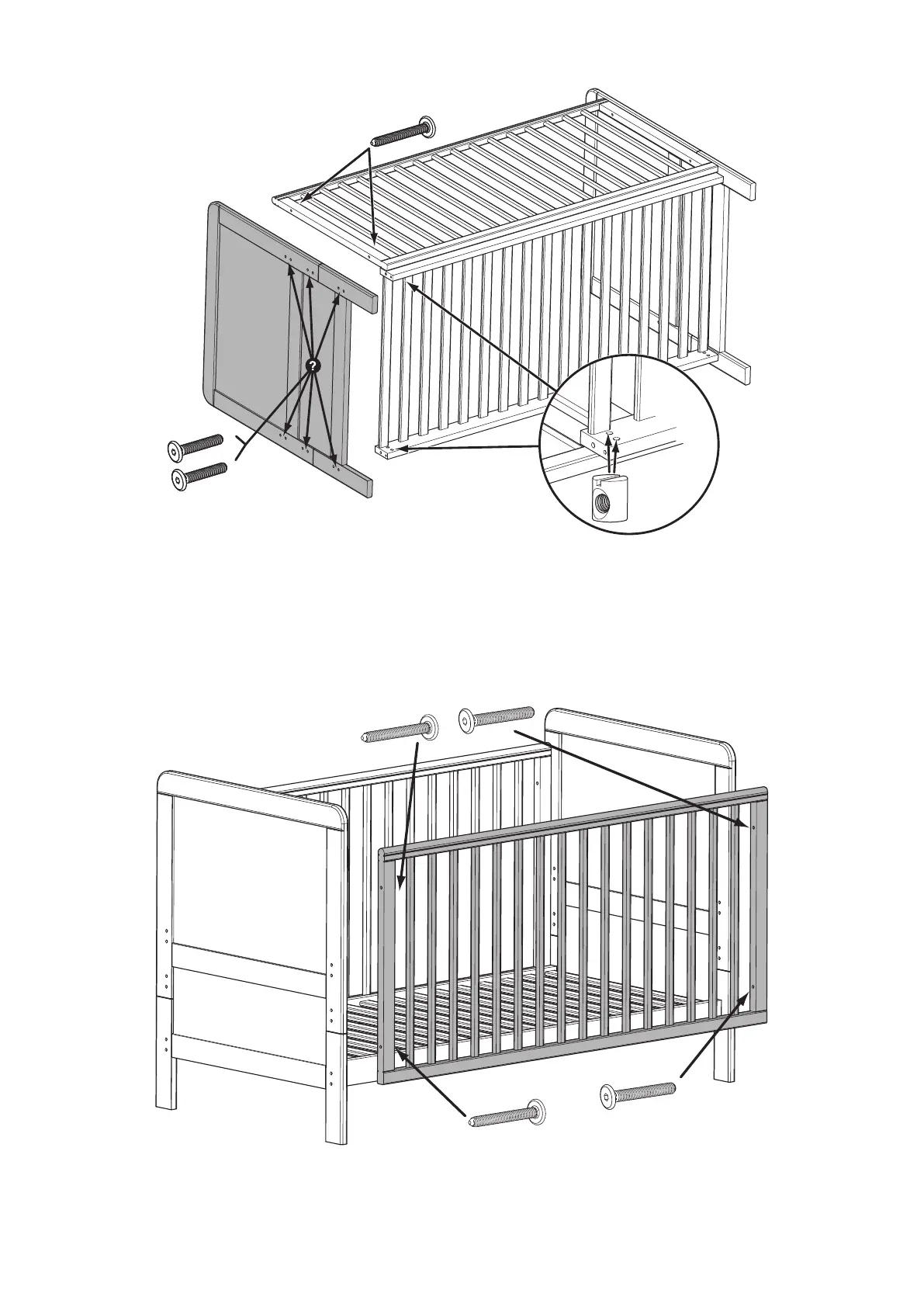

Push four barrel nuts (fixing 3) into the remaining holes in the base (part C).
Make sure that the slots are visible and, if necessary, use a flat-headed screwdriver to ensure that the
slots point towards the holes in the ends as shown. Attach the second end (Part A) to the base using
four 70mm bolts (Fixing 2) ensuring that they are placed in the correct pair of holes for the selected
base height. Do not fully tighten the bolts at this stage.
Fit two 50mm bolts (Fixing 1) through the holes in the side (Part B) to secure it to the end (Part A).
Cot assembly - step 3
Fit the second side (Part B) to the cot and secure using four 50mm bolts (Fixing 1).
Taking care to push adjoining panels together, fully tighten all bolts.
Your Cot is now ready for use.
Fixing 2
Fixing 3
Fixing 1
Part A
Fixing 1
Fixing 1
Part B
Cot assembly - step 4
4
