Step by step assembly instructions
Step Three

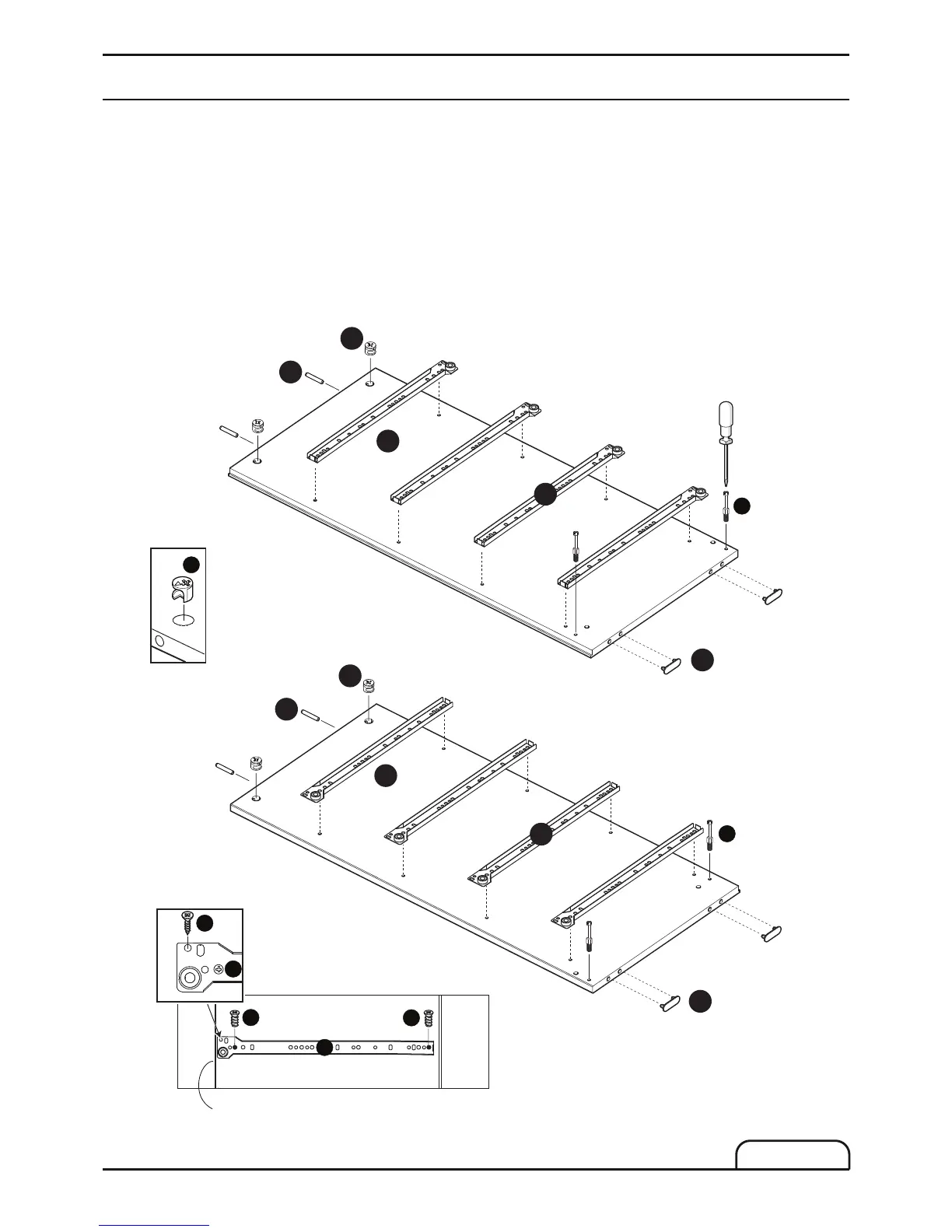

Attach 4x metal dowels (A) into the pre-drilled holes on side panels (2) (3) as shown. Use a screwdriver
to turn fitting (A) clockwise to fix.
Attach 4x support foot (F) into pre-drilled holes on side panels (2) (3) as shown.
Fix 8x runner parts (Z1) to the side panels (2) (3) through holes shown in the detail view using
16x euroscrews (H) and 8x screws (I).
Attach 4x wooden dowels (C) into the pre-drilled holes on side panels (2) (3) as shown.
Place 4x cam lock (B) into the holes on side panels (2) (3) as shown, arrow pointing towards the bolt.
1.
2.
3.
4.
5.
