JohnDow Industries JDI-6EV User Manual

3
FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM

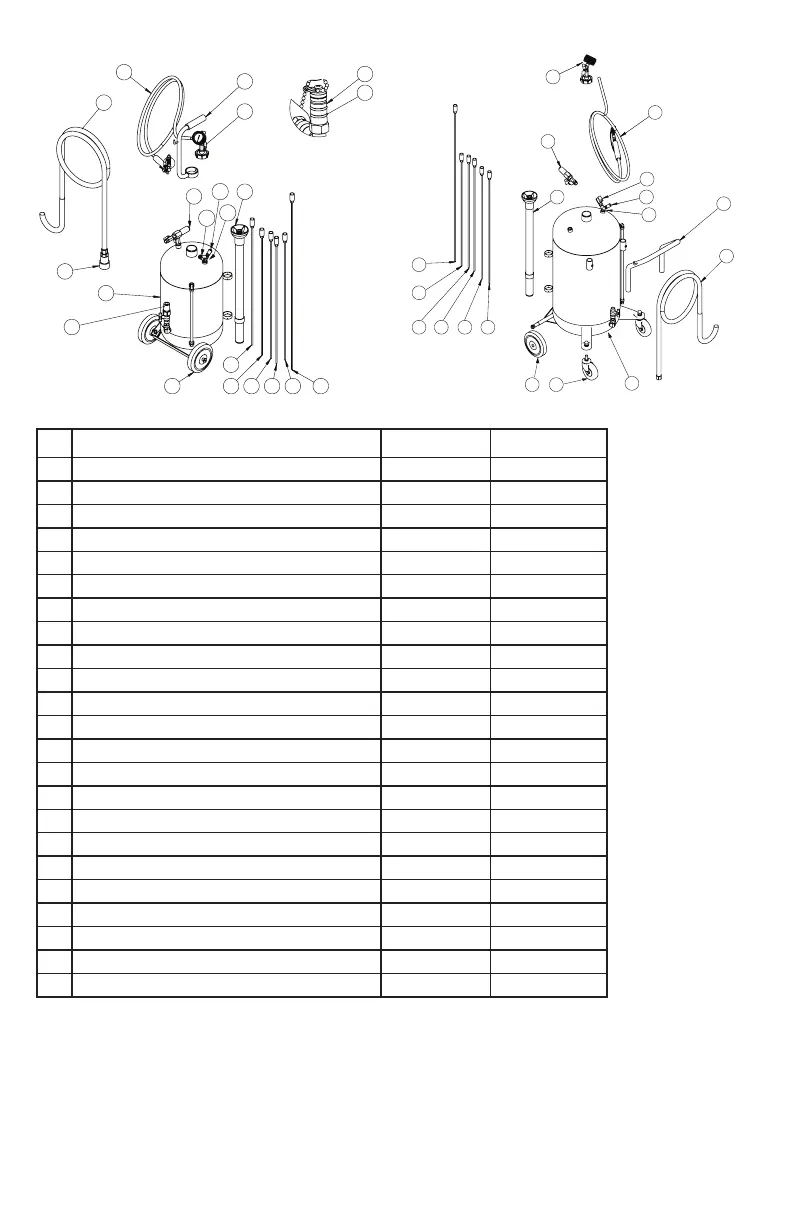

COMPONENTS
4
3
5
1
7
98
13
18
101112
14
15
6
2
17
16
A
1
2
6
4
3
18
17
16
5
7
9
10
11 12 13 14 15
22
23
DETAIL A
SCALE 1 : 2
20
21
Item
No.
Description
JDI-6EV
Replacement Parts
JDI-20EV
Replacement Parts
1 Oil Drain – –
2 Vacuum Gauge 6EV-1 6EV-1
3 Venturi Vacuum Generator 6EV-2 6EV-2
4 Suction Hose 6EV-3 6EV-3
5 Probe Tube 6EV-6 6EV-6
6 Drain Handle – –
7 Evacuation Hose 25HDC-1 25HDC-1
8 Caster – 20DCE-1
9 Fixed Wheel 20DCE-7 20DCE-7
10 Flexible Probe (5mmx700mm) - Red PR5-700 PR5-700
11 Flexible Probe (6mmx700mm) - Green PR6-700 PR6-700
12 Flexible Probe (8mmx700mm) - Yellow PR8-700 PR8-700
13 Metal Probe (5mmx700mm) PRM5-700 PRM5-700
14 Metal Probe (6mmx700mm) PRM6-700 PRM6-700
15 Flexible Probe (7mmx1000mm) - Clear PR7-1000 PR7-1000
16 WYE Adapter 25HDC-Y-ADAP 25HDC-Y-ADAP
17 Safety Valve 20DCE-4 20DCE-4
18 Ball Valve AV-38 AV-38
19 Sight Glass S-KIT S-KIT
20 Probe Link O-Rings (4 Pack) EV-ORING –
21 Probe Link 6EV-DP –
22 1/2” Female Quick-Connect Fitting HA-15231-00 –
23 1/2” Male Quick-Connect Fitting HA-15232-00 –
JDI-6EV JDI-20EV
Items Not Shown
(2) Lock washers, (2) Large at washers, (2) Small at washers, (2) Cap nuts, (1) BMW adapter
ADP-BMW, (1) Mercedes-Benz adapter ADP-MCD, and (1) Volkswagen adapter ADP-VW.
