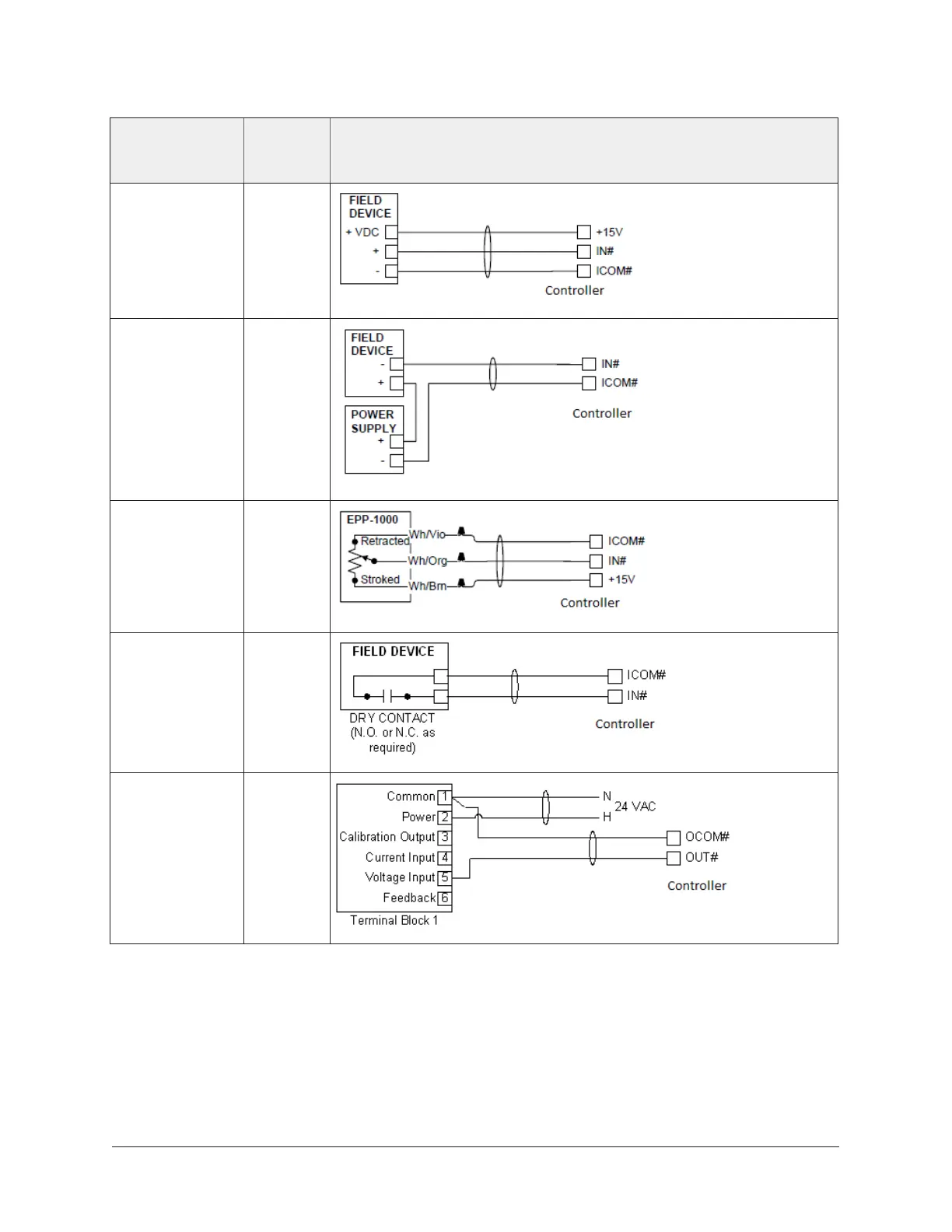

Table 2: Termination details

Type of field

device

Type of

Input/

Output

Termination diagrams

Current Input -

Internal Source

(3-wire)

Current Input -

External Source

(in Loop)

Feedback from

EPP-1000

Dry Contact

(Binary Input)

0–10 VDC

Output to

Actuator

(External Source)

FX-PCX2721 Expansion Input/Output Module Installation Instructions12
