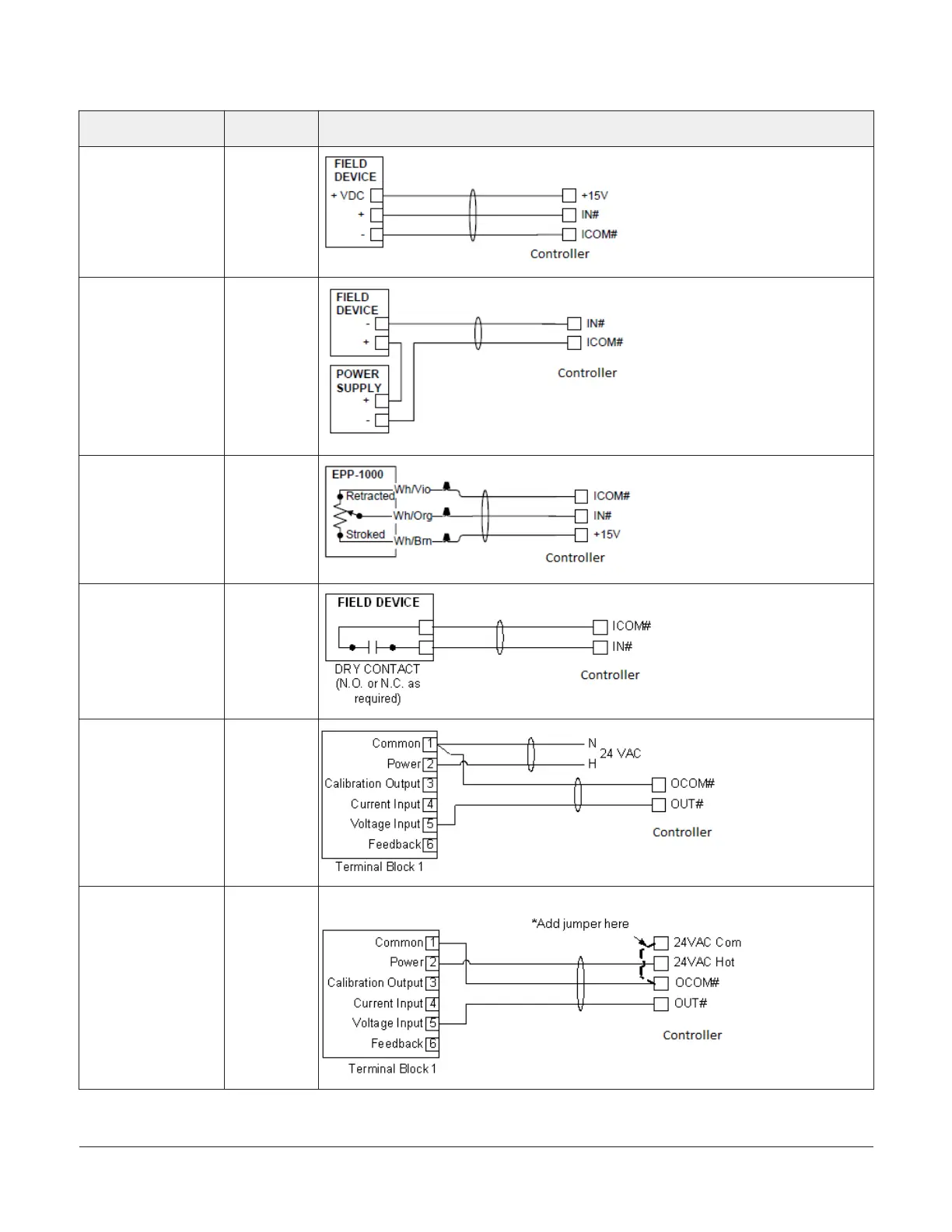

Table 5: Termination details

Type of field device

Type of Input/

Output

Termination diagrams

Current Input - Internal

Source (3-wire)

Current Input - External

Source (in Loop)

Feedback from

EPP-1000

Dry Contact (Binary

Input)

0–10 VDC Output to

Actuator (External

Source)

0–10 VDC Output to

Actuator (Internal

Source)

IOM2723 Input/Output Module Installation Guide 11
