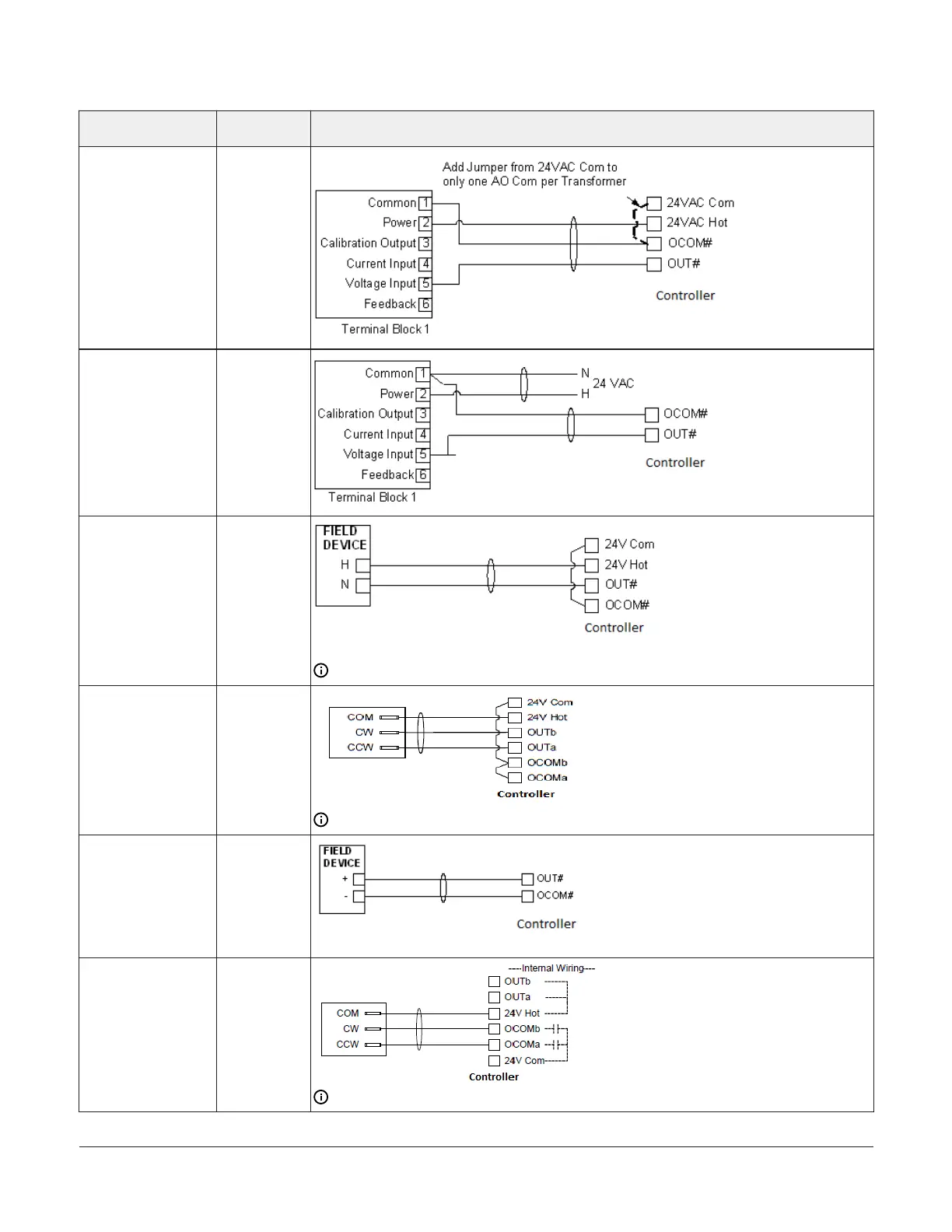

Table 6: Termination details
Type of field device
Type of Input/
Output
Termination diagrams
0–10 VDC Output to
Actuator (Internal
Source)
CO
0–10 VDC Output to
Actuator (External
Source)
CO
24 VAC Triac Output
(Switch Low, External
Source)
CO
Note: Applies to CO4 and CO5.
Incremental Control to
Actuator (Switch Low,
External Source)
CO
Note: Applies to CO4 and CO5.
Analog Output
(Voltage)
CO
Incremental Control to
Actuator (Switch Low,
Internally Sourced)
BO
Note: Applies to BO3, BO1, and BO2.
VMA1617 and VMA1632 VAV Controllers Installation Guide14
