Johnson Pump MDR Series - Page 18

18
MDR/EN (0909) 1.0
37 13
4
11
122
19
5
14
4
6,1
6,1
16
4,1
MDR105/116
8
6
9
10
15
1
16
9

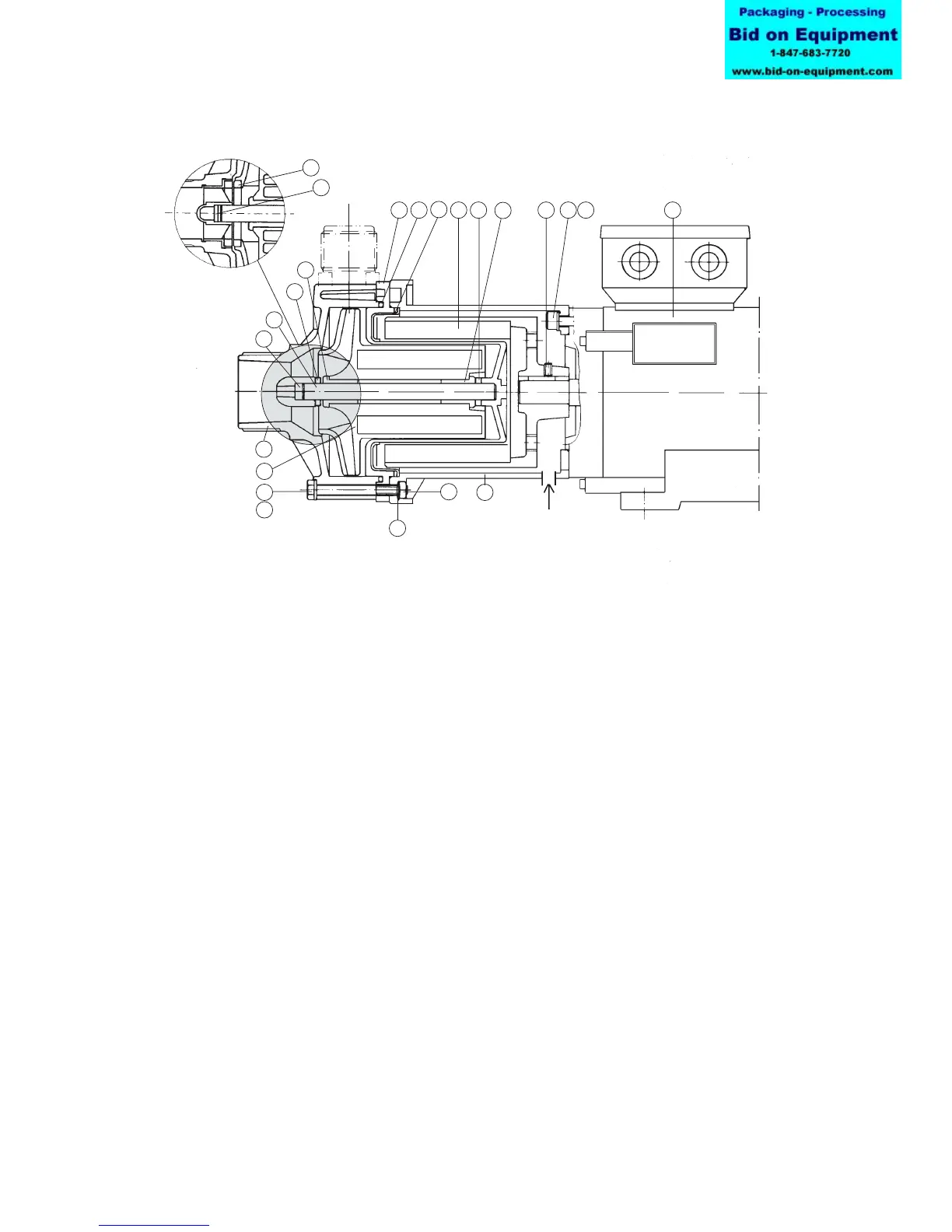

5.0 Spare parts list
Pos Nos Description Material MDR45 MDR75 MDR85 MDR105 MDR116
1 1 Flange P2/P3 PP 01-24373-1 58-08299 01-13097-1 58-018376 58-018376
2 2 Screw 0.0300.544 0.0300.524 0.0300.523 0.0300.565 0.0300.565
3 1 Magnet housing PP 01-24374-1 58-08301 01-13098-2 58-08334 58-08334
1 Magnet housing PVDF 01-24405-1 58-08302 01-13113-2 58-08335 58-08335
4 2* Wear plate Ceramic 01-45897-1 58-08298 58-08298 58-08330 58-08330
4,1) 1 Wear ring Rulon - - - 58-08343 58-08343
5 1 Shaft Ceramic 01-45896-1 58-08297 01-35340-1 58-08329 58-08329
6 1 Impeller -1V PP/Rulon 04-35345-01 58-08630 04-35334-01 58-08636 58-18695
Impeller -1VD PP/Rulon 04-35345-02 04-46243-02 04-35334-02 04-46245-02 04-46612-02
1 Impeller -1V PVDF/Rulon 04-35671-01 58-08631 04-35361-01 58-08637 58-18696
Impeller -1VD PVDF/Rulon 04-35671-02 04-46244-02 04-35361-02 04-46246-02 04-46613-02
6,1) 2 Bearing Rulon 01-35348-1 58-08311 58-08311 58-08342 58-08342
7 1 O-ring FPM 0.2172.021 0.2172.029 0.2172.020 0.2172.022 0.2172.022
8 1 Body PP 01-24375-1 58-08307 01-13100-1 04-35766 58-08368
1 Body PVDF 01-24406-1 58-08308 01-13115-1 58-08659 58-08369
9 Washer SS 0.0350.605 (6) - 0.0350.207 (6) 0.0350.208 (12) 0.0350.208 (12)
10 6 Screw SS 0.0138.050 0.0251.690 0.0142.738 0.0142.730 0.0142.730
11 4 Washer SS 0.0350.206 0.0350.206 0.0350.207 0.0350.208 0.0350.208
12 4 Screw SS 0.0251.688 0.0251.688 0.0251.704 0.0251.714 0.0251.714
13 1 Drive magnet 04-35360-01 58-08624 04-35342-01 58-08634 58-08677
14 1 Motor 1-ph 220 V 4.9309.008 4.9309.317 - - -
1 Motor 3-ph 220/380 V 4.9309.009 4.9309.006 4.9309.005 4.9309.012 4.9309.004
15 6 Nut SS 0.0185.350 0.0185.350 0.0185.069 0.0163.014 0.0163.014
16 1 Spacer PP - - - - 58-08370
1 Spacer PTFE - - - - 58-08372
19 1 Reinforcement SS - 58-08295 01-35344-1 58-08324 58-08324
* The number of wear plates for MDR105 and MDR116 is 1 pce.
Assembling hole
{
{
{
{
{
{
