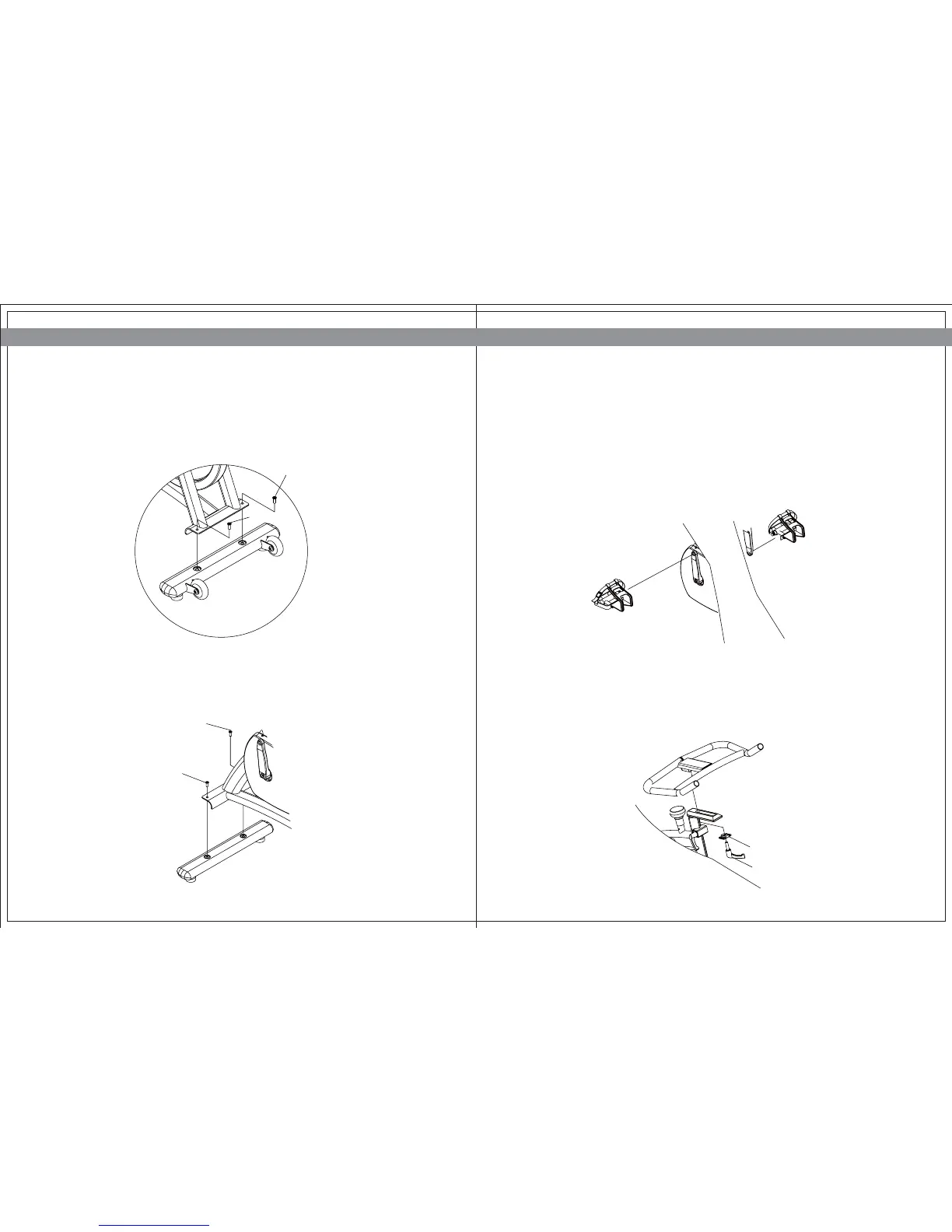

STEP 3
JOHNSON CLASS CYCLE P8000
STEP 4
• Place the handlebar on the handlebar stem. Position handlebar bracket beneath the
handlebar stem and insert the quick release lever set (G10, G11) through the bottom
bracket and into the handlebar. Turn counter-clockwise to tighten.
• To adjust the position of the handlebar, loosen quick release lever (G10) and slide to the
desired location.
Z01
Z01
Z01
Z01
Install the pedals on the pedal cranks by using the Open Wrench (Z32). The closed end of
the pedal cage must point forward, toward the front of the cycle.
NOTE: Be careful to align the threads correctly to avoid damage. A little grease on the
threads should help the pedals to screw in easily and correctly. Turn the left pedal spindle
counterclockwise when threading into the crank arm, and turn the right pedal spindle
clockwise when threading into the crank arm.
STEP 1
JOHNSON CLASS CYCLE P8000
• Place the front foot in position at the front of the cycle, with the transport wheels facing
forward, aligning the two holes in the foot with the mating holes in the frame bracket.
• Insert the two screws (Z01) through the frame bracket and front foot. Using the #5 Allen
Wrench (Z31) to tighten the screws securely.
STEP 2
• Place the rear foot in position at the rear of the cycle, aligning the two holes in the foot
with the mating holes in the frame bracket.
• Insert the two screws (Z01) through the frame bracket and front foot. Using the #5 Allen
Wrench (Z31) to tighten the screws securely.
ASSEMBLY STEPS
G11
G10
