Johnson J User Manual

Jl
'-----------~100
101

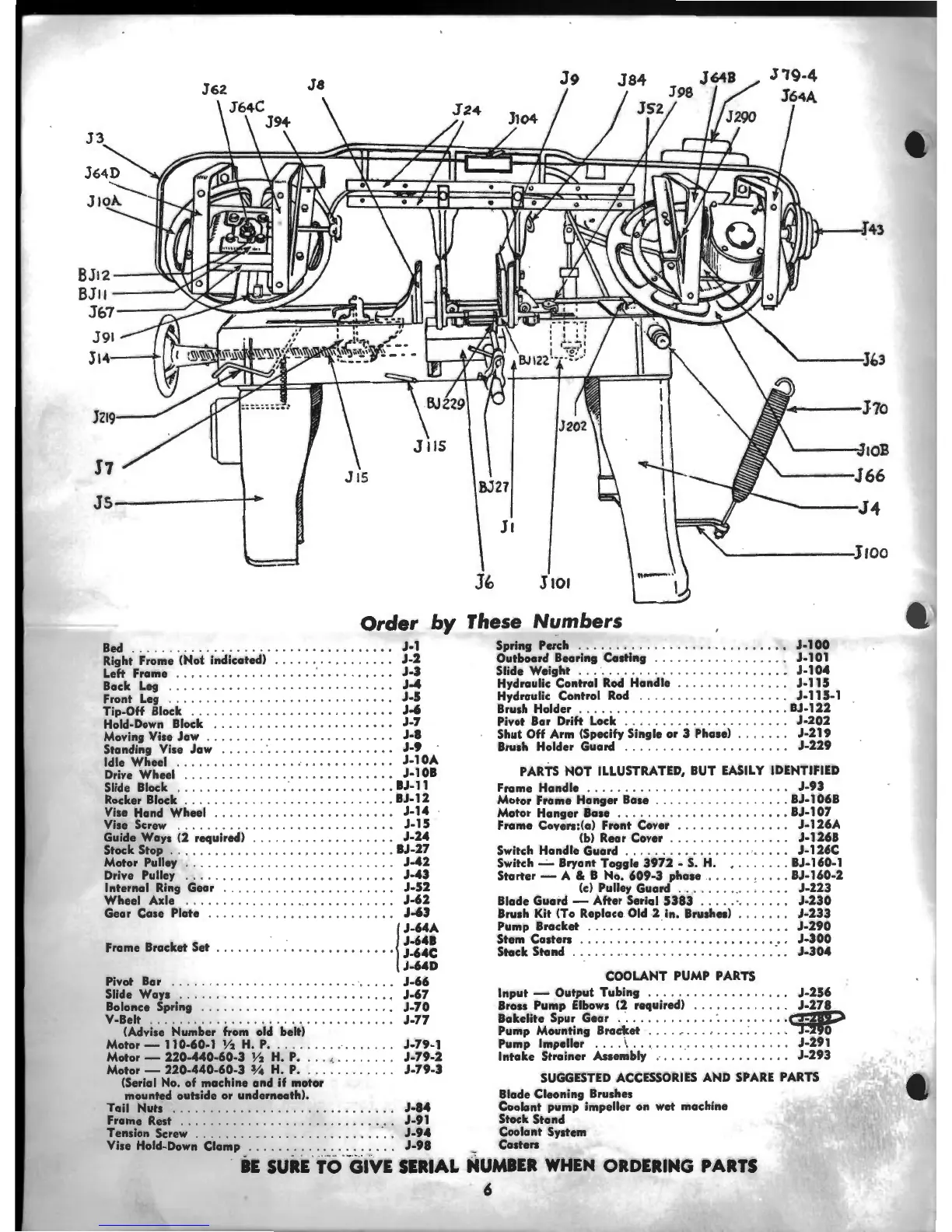

Order by These Numbers
Bed . . . . ..... . . . .... . .. .. ..... ......... J-1
Right Frame (Not indicated) . . . . . . . . . . . . . . . .
J-2
Left Frome ......... ..... .... ." . . . . . . . . . . J-3
Back Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-4
Front Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-5
Tip-Off Block . . . . . . . . . . . . . . . . . . . . . . . . . . . J-6
Hold-Down Block . . . . . . . . . . . . . . . . . . . . . . . . J-7
Moving Vise Jaw . . . . . . . . . . . . . . . . . . . . . . . . . J-8
Standing Vise Jaw ..... . ·. . . . . . . . . . . . . . . . . J-t
Idle Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-1 OA
Drive Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-1 OB
Slide Block ............... · ..... . .. ...... BJ-11
Rocker Block .
.. .. .. .............. .... .. . BJ-12
Vise Hand Wheel . . . . . . . . . . . . . . . . . . . . . . . . J-14
Vise Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-15
Guide Ways (2 required) . . . . . . . . . . . . . . . . . . . J-24
Stock Stop . . . . . . . . . . . . . . . . . . . . . . . . ...... BJ-27
Motor Pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . .
J-42
Drive Pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-43
Internal Ring Gear . . . . . . . . . . . . . . . . . . . . . . . J-52
Wheel Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-62
Gear Case Plate . . . . . . . . . . . . . . . . . . . . . . . . . J-63
I
J-64A
J-648
Frame Bracket Set ............ · ..... · · · · · · J-64C
J-64D
Pivot Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-66
Slide Ways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-67
Balance Spring . . . . . . . . . . . . . . . . . . . . . . . . . . J-70
V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-77
(Advise Number from old belt)
Motor- 110-60-1 Yz H. P • ................
Motor - 220-440-60-3 Yz H. P • .......... . .
Motor- 220-440-60-3 ~ H. P • ... .. .......
(Serial No. of machine and if motor
mounted outside or underneath).
Tail Nuts
... . . . ........... . ....... . ... .
Frame Rest ....................... . .... .
Tension Screw .
.. .. ................ .... · ..
Vise Hold-Down Clamp ......... . .... . .... .
J-79-1
J-79-2
J-79-3
J-84
J-91
J-94
J-98
Spring Perch . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-1 00
Outboard Bearing Casting ............. ..... J-101
Slide Weight
............................ J-104
Hydraulic Control Rod Handle . . . . . . . . . . . . . . . J-115
Hydraulic Control Rod . . . . . . . . . . . . . . . . . . . . J-115-1
Brush Holder
..... . ...................... BJ-122
Pivot Bar Drift Lock . . . . . . . . . . . . . . . . . . . . . .
J-202
Shut Off Arm (Specify Single or 3 Phase) ... .... J-219
Brush Holder Guard . . . . . . . . . . . . . . . . . . . . . . J-229
PARTS NOT ILLUSTRATED, BUT EASILY IDENTIFIED
Frame Handle . . . . . . . . . . . . . . . . . . . . . . . . . . .
J-93
Motor Frame Hanger Base .. ... .......... . .. BJ-1 068
Motor Hanger Base ..................... .. BJ -1 07
Frame Covers:(a) Front Cover . . . . . . . . . . . . . . . J-126A
(b) Rear Cover ................ J-126B
Switch Handle Guard
... . .................. J-126C
Switch- Bryant Toggle 3972 • S. H. • . . ... . . BJ-160-1
Starter - A & B No. 609-3 phase . . ..... . ... BJ-160-2
(c) Pulley Guard . . . . . . . . . . . . . . .
J-223
Blade Guard - After Serial 5383 .. . .. ·. . . . . . . J-230
Brush Kit (To Replace Old 2 in. Brushes) . . . . . . . J-233
Pump Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . J-290
Stem Casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-300
Stock Stand ....... . ..... .. ............ ·. . J-304
COOLANT PUMP PARTS
Input -
Output Tubing . . . . . . . . . . . . . . . . . . . J-256
Brass Pump Elbows (2 required) . . . . . . . . . . . . . J-278
Bakelite Spu~ Gear ... . ......... · ........ .. r:J!2iO
Pump Mounting Bracket ... . , ............ .. ""T-2Jif
Pump Impeller .... ·• . . . . . . . . . . . . . . . . . . . . . J-291
Intake Strainer Assembly . . . . . . . . . . . . . . . . . . J-293
SUGGESTED ACCESSORIES AND SPARE PARTS
Blade Cleaning Brushes
Coolant pump impeller on wet machine
Stock Stand
Coolant System
Casten
i£ SURE TO .. GIVE SERIAL NUMBER WHEN ORDERING PARTS
6
