JABSCO
Bronze
Plain Bearing Pump
TECHNICAL DATA
MODELS
Al 1/S" - Al 1/4"

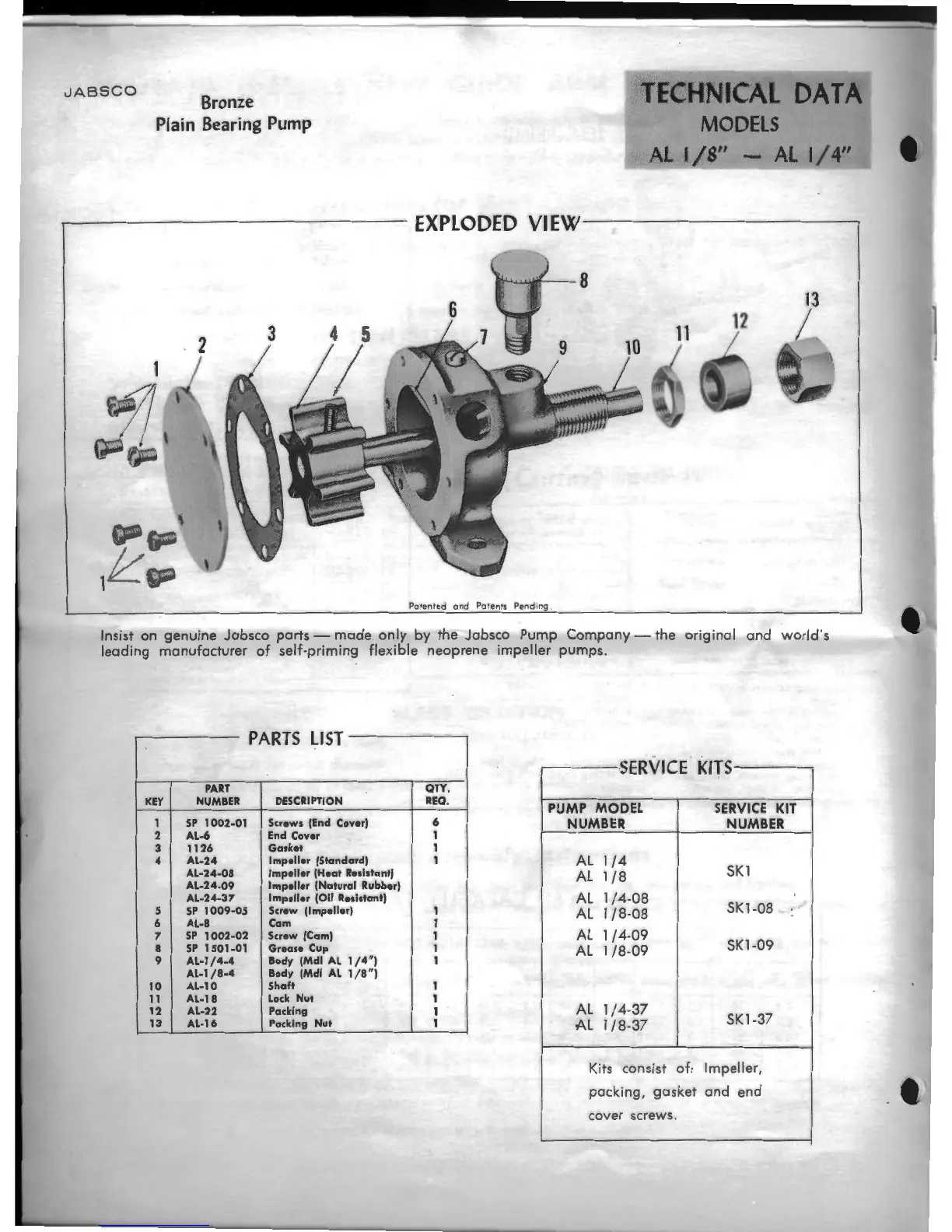

EXPLODED VIEW----------,
12
Patent ed a nd P at en ts Pend in g .
Insist on genuine Jabsco parts- made only by the Jabsco Pump Company- the original and world's
leading manufacturer of self-priming flexible neoprene impeller pumps.
PARTS LIST
.SERVICE KITS
PART
QTY.
KEY
NUMBER
DESCRIPTION REQ.
PUMP MODEL SERVICE KIT
1
SP 1002-01
Screws (End Cover)
6
2
AL-6
End Cover 1
~UMBER
NUMBER
3
1126 Gasket
1
4 AL-24
Impeller (Standard)
1
AL-24-08
Impeller (Heat Resistant)
AL-24-09 Impeller (Natural Rubber)
AL
1/4
SK1
AL
1/8
AL-24-37
Impeller (Oil Resistant)
5
SP 1009-05
Screw (Impeller)
1
6 AL-8
Cam
1
AL
1/4-08
SK1-08
AL
1 /8-08
7
SP 1002-02
Screw (Cam)
1
8 SP 1501-01 Grease Cup 1
9
AL-l /4-4
Body (Mdl AL 1 /4")
1
AL
1/4-09
SK1-09
AL 1/8-09
AL-l /8-4
Body (Mdl AL 1 /8")
10 AL-10
Shaft
1
11 AL-18
Lock
Nut
1
12
AL-22
Packing
1
13 AL-16
Packing
Nut
1
AL 1/4-37
SK1 -37
AL
1 /8-37
Kits consist
of :
Impeller,
packing, gasket
and end
cover screws.
