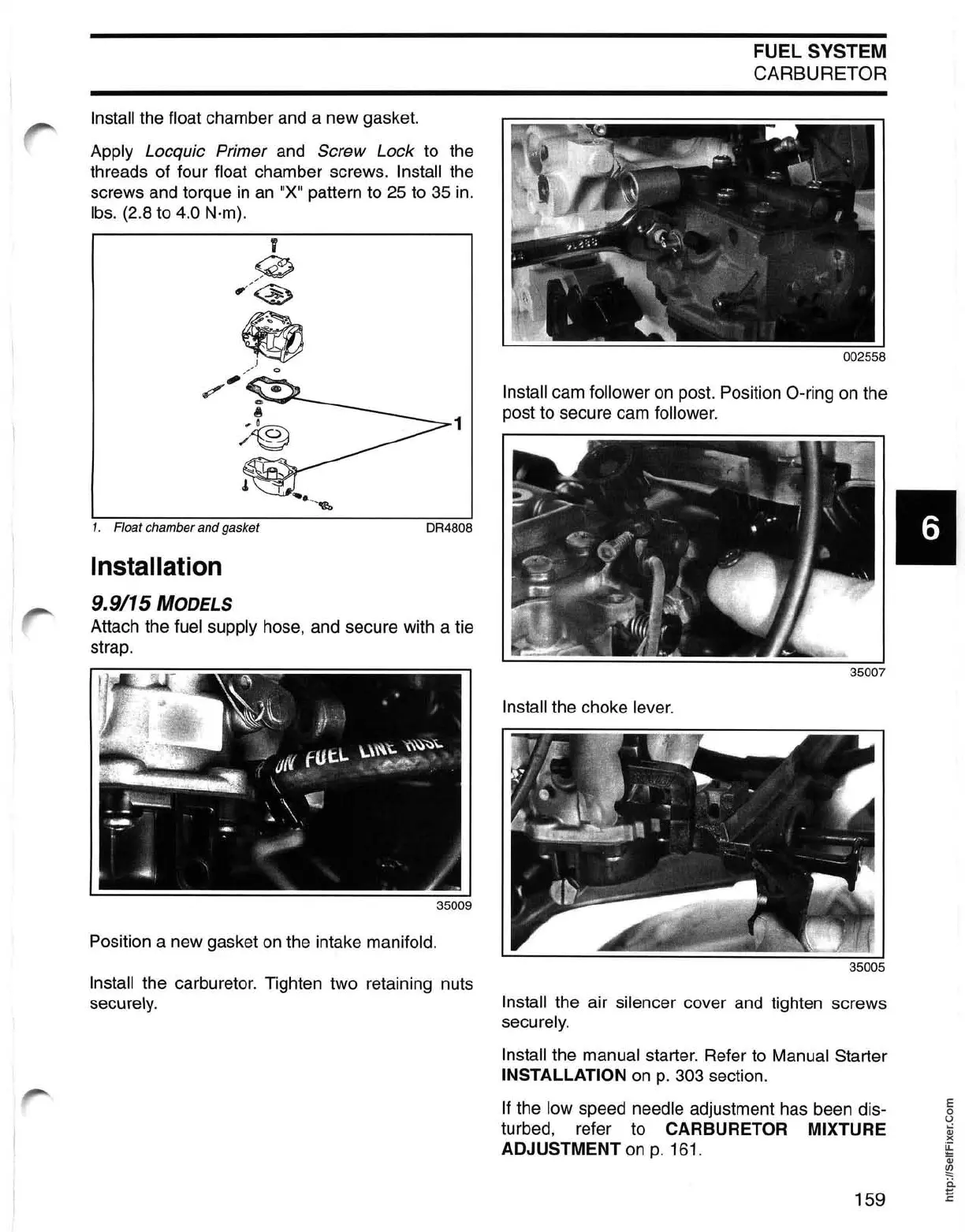

Install the float chamber and a new gasket.
Apply Locquic Primer and Screw Lock to the
threads of four
float chamber screws. Install the
screws and torque
in
an "X" pattern to 25 to 35 in.
Ibs. (2.8 to 4.0 N·m).
1.
Float chamber and gasket
Installation
9.9/15
MODELS
1
DR4808
Attach the fuel supply hose, and secure with a tie
strap.
Position a new gasket on the intake manifold.
Install the carburetor. Tighten two retaining nuts
securely.
FUEL SYSTEM
CARBURETOR
Install cam follower on post. Position O-ring on the
post to secure cam
follower.
Install
the choke lever.
35005
Install the air silencer cover and tighten screws
securely.
Install the manual starter. Refer to Manual Starter
INSTALLATION on
p.
303 section.
If the low speed needle adjustment has been dis-
turbed, refer to
CARBURETOR MIXTURE
ADJUSTMENT on
p.
161.
159
E
o
U
Qj
)(
~
Qj
~
ii
E
