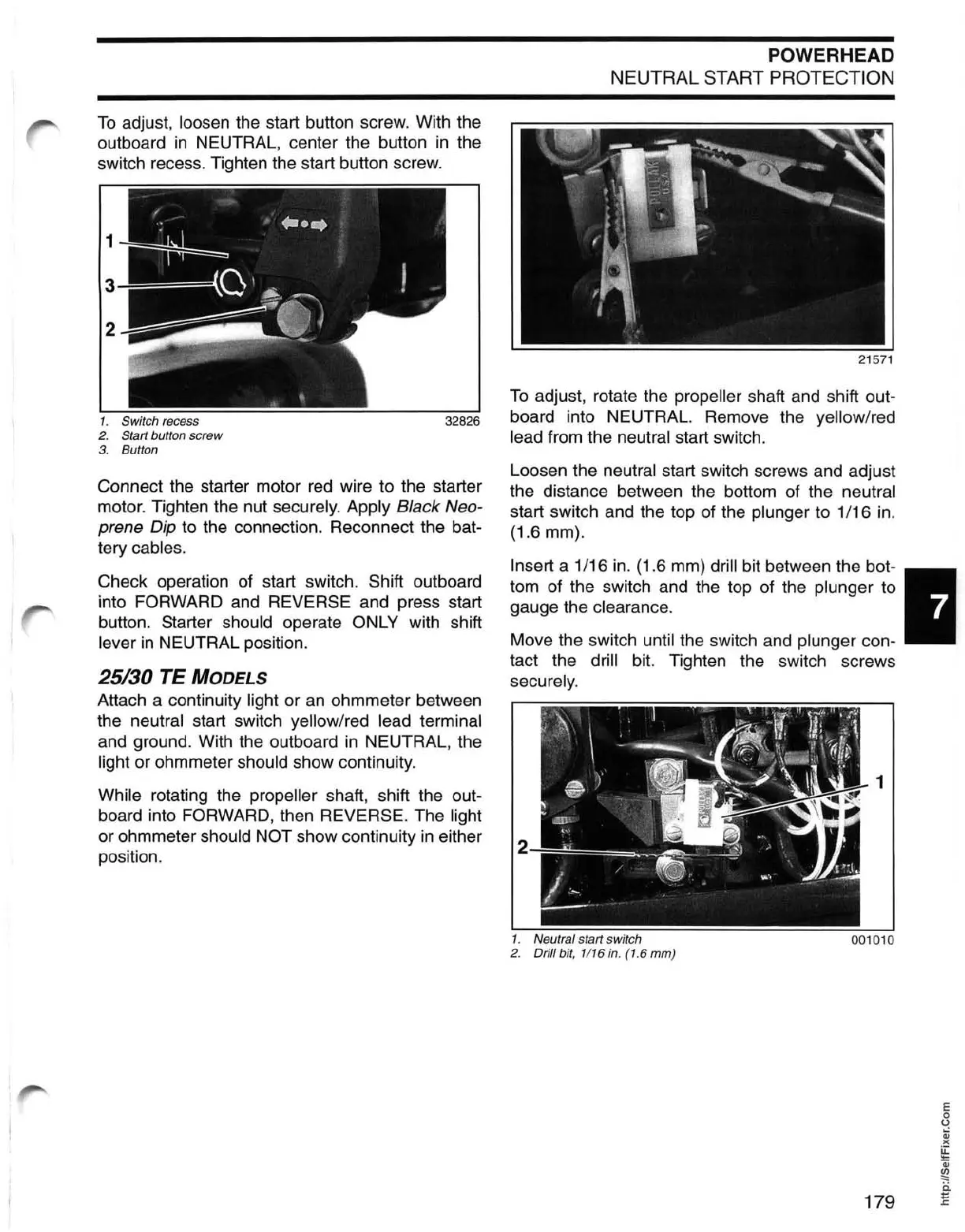

To
adjust, loosen the start button screw. With the
outboard
in
NEUTRAL, center the button
in
the
switch recess. Tighten the start button screw.
1
3
2
1. Switch recess
2.
Start button screw
3. Button
Connect the starter motor
red
wire to the starter
motor. Tighten the nut
securely. Apply Black Neo-
prene Dip
to the connection. Reconnect the bat-
tery
cables.
Check operation of start switch. Shift outboard
into FORWARD and REVERSE and press start
button. Starter
should operate ONLY with shift
lever
in
NEUTRAL position.
25/30 TE
MODELS
Attach a continuity light or
an
ohmmeter between
the
neutral start switch yellow/red lead terminal
and ground. With the outboard
in
NEUTRAL, the
light or ohmmeter should show continuity.
While rotating the
propeller shaft, shift the out-
board into FORWARD, then REVERSE. The
light
or ohmmeter should NOT show continuity
in
either
position.
POWERHEAD
NEUTRAL START PROTECTION
21571
To
adjust, rotate the propeller shaft and shift out-
board into NEUTRAL. Remove the
yellow/red
lead
from the neutral start switch.
Loosen the
neutral start switch screws and adjust
the distance between the bottom of the
neutral
start switch and the top
of
the plunger to 1/16
in.
(1.6 mm).
Insert a 1/16
in.
(1.6 mm) drill bit between the bot- 7
tom of the switch and the top of the plunger to
gauge the
clearance.
Move the switch until the switch and plunger con-
tact the
drill bit. Tighten the switch screws
securely.
1
1. Neutral start switch
001010
2. Drill bit, 1116
in
.
(1.6
mm)
179
E
o
o
~
x
~
OJ
~
ii
t:
.s::
