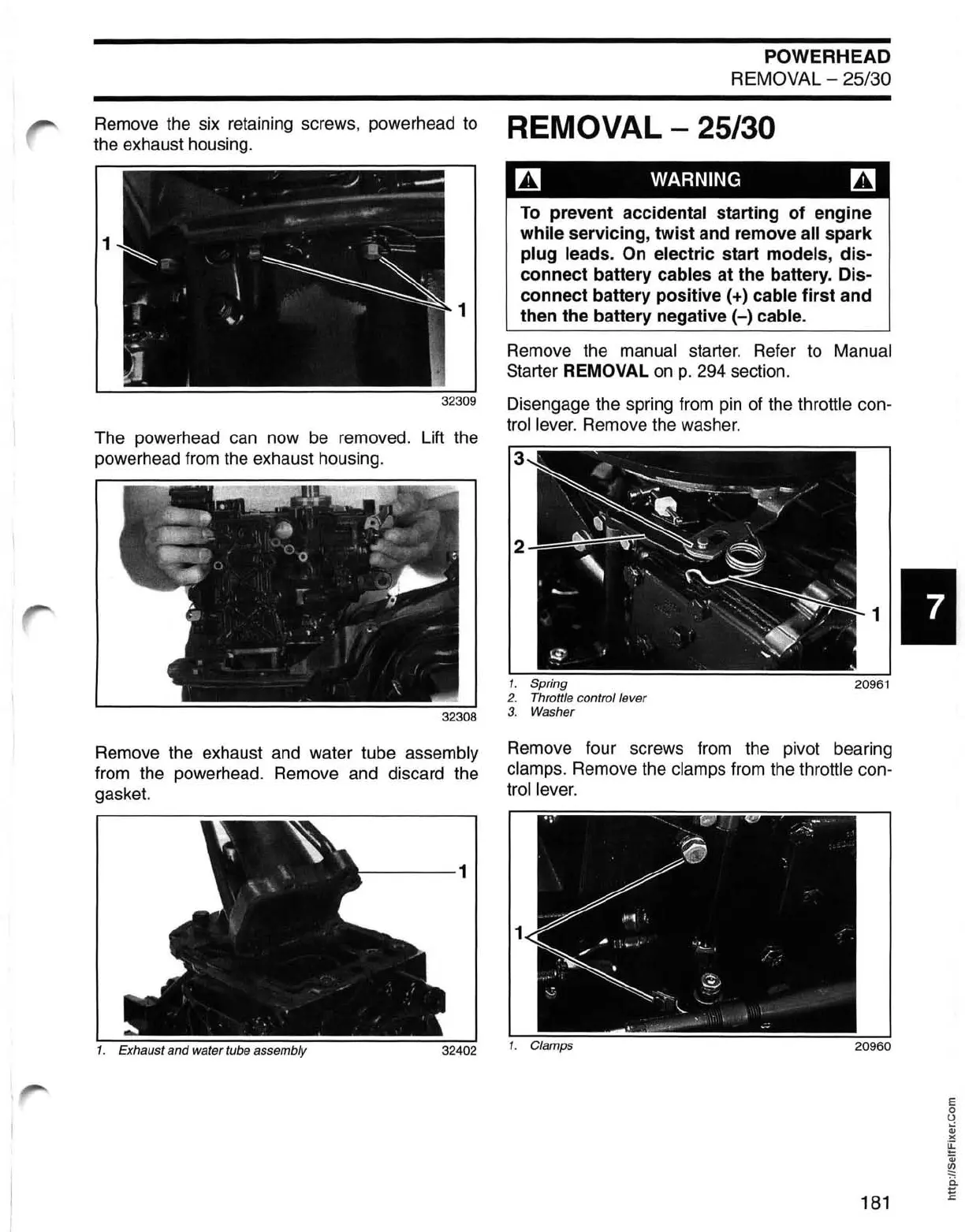

POWERHEAD
REMOVAL - 25/30
Remove the six retaining screws, powerhead to REMOVAL - 25/30
the exhaust housing.
1
The powerhead can now be removed. Lift the
powerhead from the exhaust housing.
Remove the exhaust
and water tube assembly
from the powerhead. Remove and discard the
gasket.
~---1
1. Exhaust and water tube assembly 32402
m WARNING m
To prevent accidental starting of engine
while servicing,
twist and remove all spark
plug leads. On electric start models, dis-
connect battery cables at the battery. Dis-
connect battery positive
(+) cable first and
then
the battery negative (-) cable.
Remove the manual starter. Refer to Manual
Starter REMOVAL on p. 294 section.
Disengage the spring
from pin of the throttle con-
trollever. Remove the washer.
Spring
Throttle control lever
Washer
1
20961
Remove four screws from the pivot bearing
clamps. Remove the clamps from the throttle con-
trollever.
1
181
I
