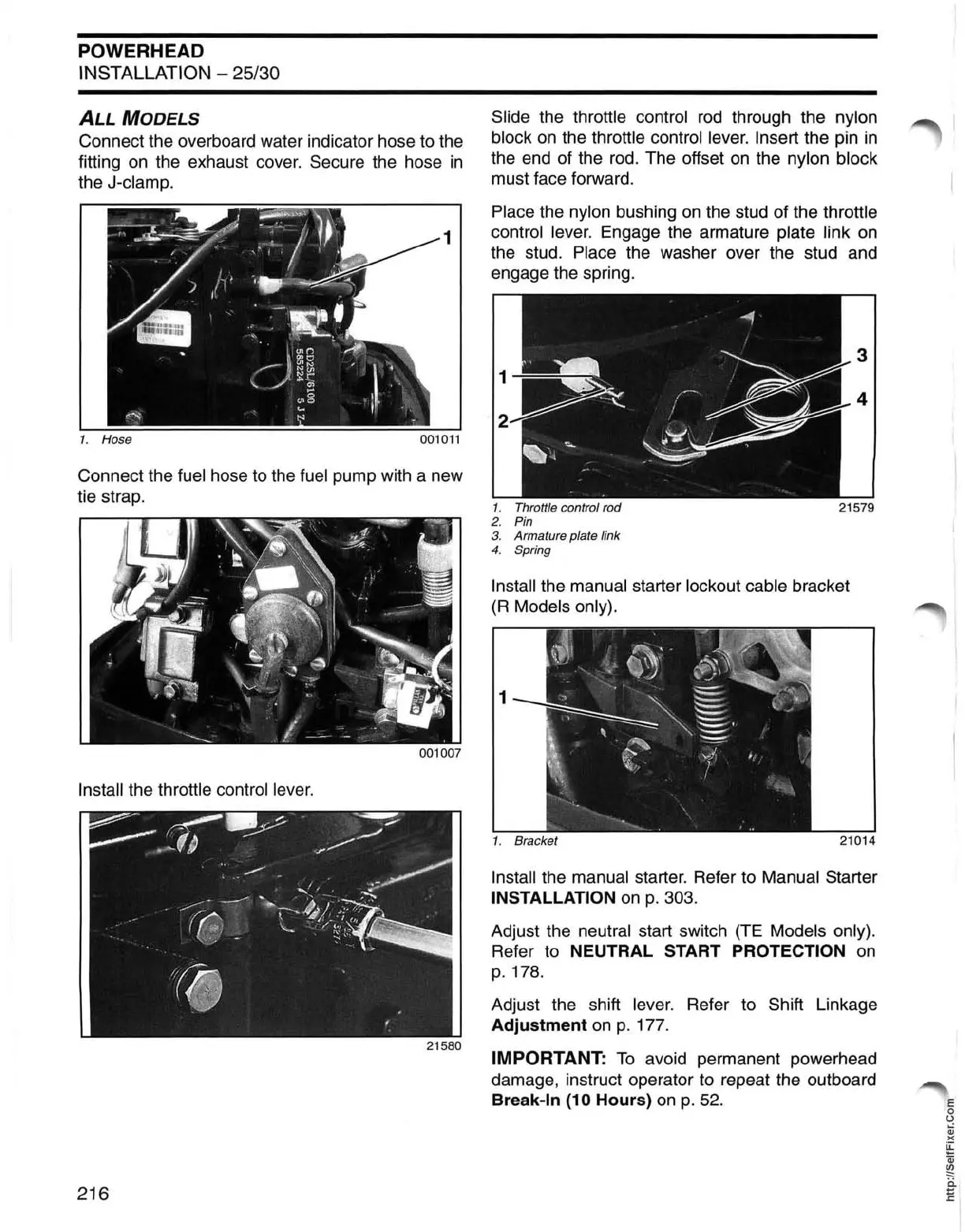

POWERHEAD
INSTALLATION - 25/30
ALL
MODELS
Connect the overboard water indicator hose to the
fitting on the exhaust cover. Secure the hose
in
the J-clamp.
Connect the fuel hose to the fuel pump with a new
tie strap.
001007
Install the throttle control lever.
21580
216
Slide the throttle control
rod
through the nylon
block
on
the throttle control lever. Insert the pin
in
the end of the rod. The offset
on
the nylon block
must face forward.
Place the nylon bushing
on
the stud of the throttle
control lever. Engage the armature plate link on
the stud. Place the washer over the stud and
engage the spring.
1. Throttle control rod 21579
2. Pin
3. Armature plate link
4. Spring
Install the manual starter lockout cable bracket
(R
Models only).
1. Bracket
21014
Install the manual starter. Refer to Manual Starter
INSTALLATION
on
p. 303.
Adjust the neutral start switch (TE Models only).
Refer to
NEUTRAL START PROTECTION
on
p. 178.
Adjust the shift lever. Refer to Shift Linkage
Adjustment on
p.
177.
IMPORTANT:
To
avoid permanent powerhead
damage, instruct operator
to
repeat the outboard
Break-In (10 Hours)
on
p.
52.
