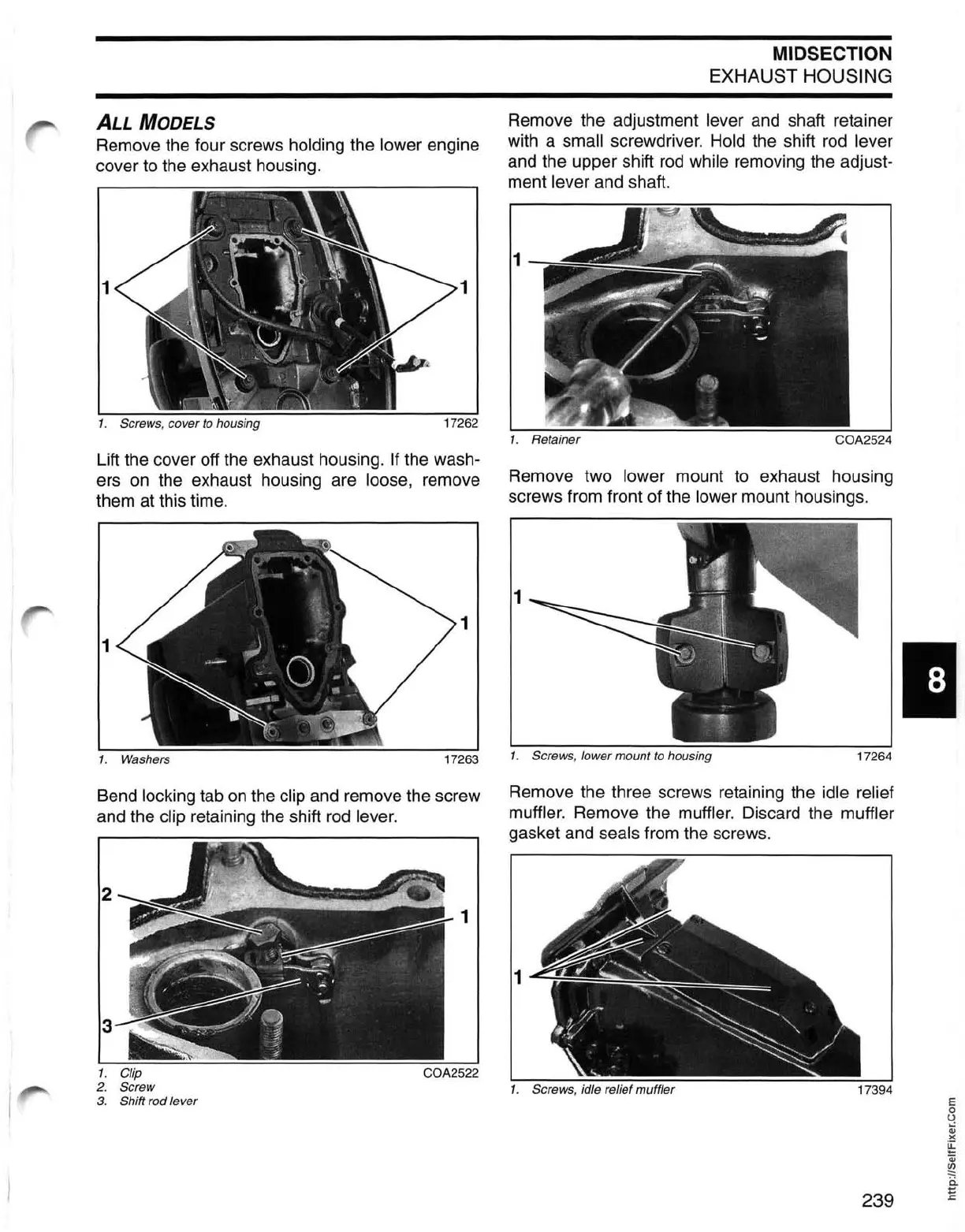

Johnson J10RSRD

ALL MODELS
Remove the four screws holding the lower engine
cover to the exhaust housing.
1. Screws, cover to housing
Lift the cover off the exhaust housing. If the wash-
ers
on the exhaust housing are loose, remove
them at this time.
1
1
1. Washers 17263
Bend locking tab on the clip and remove the screw
and the
clip retaining the shift rod lever.
2
1
1. Clip COA2522
2. Screw
3. Shift rod lever
MIDSECTION
EXHAUST HOUSING
Remove the adjustment lever and shaft retainer
with a
small screwdriver. Hold the shift rod lever
and the upper shift rod while removing the adjust-
ment
lever and shaft.
Remove two
lower mount to exhaust housing
screws from front of the
lower mount housings.
1
1. Screws, lower mount to housing
17264
Remove the three screws retaining the idle relief
muffler.
Remove the muffler. Discard the muffler
gasket and
seals from the screws.
1
239
I
