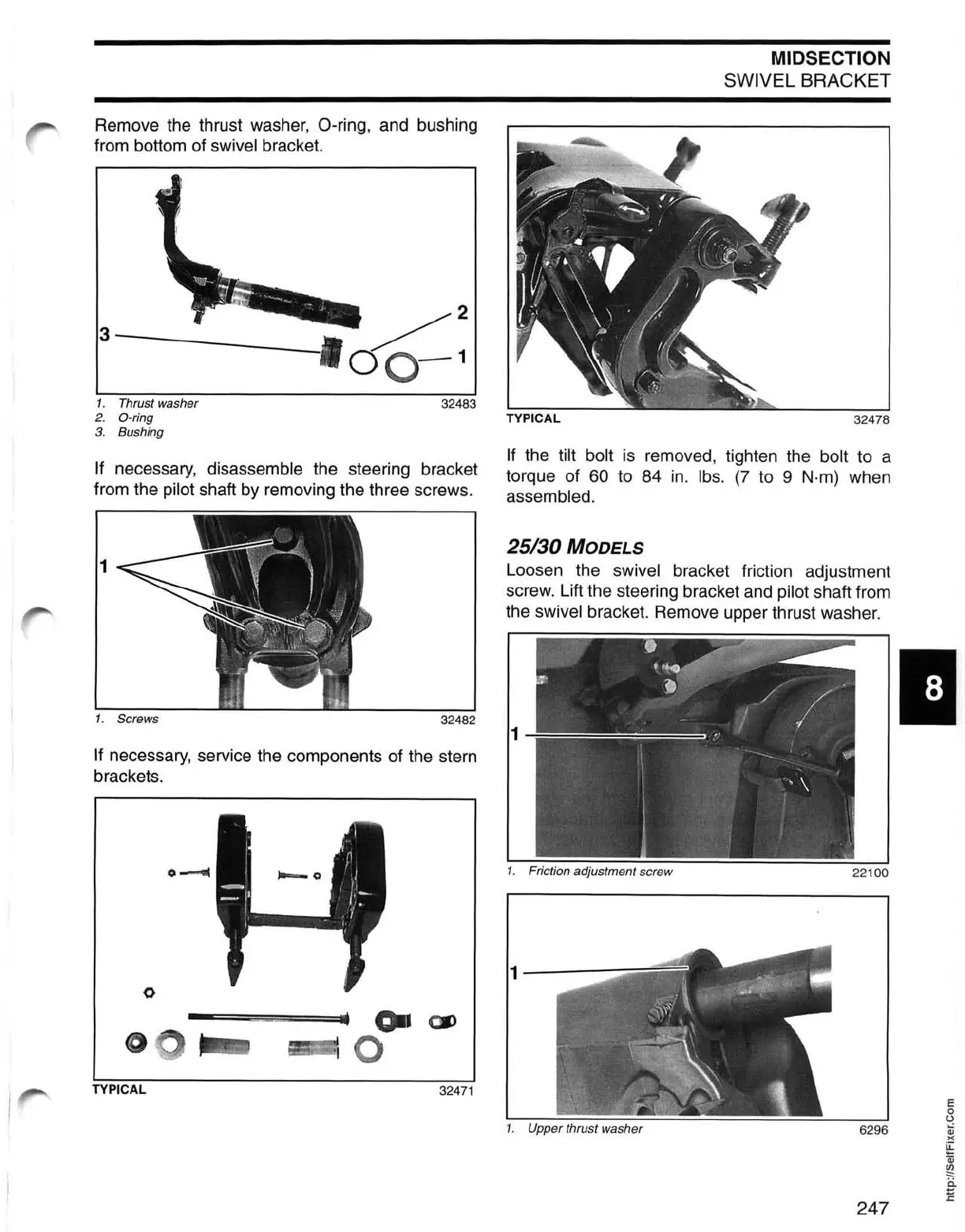

Remove the thrust washer, O-ring, and bushing
from bottom of
swivel bracket.
3- _____ _
/2
0 0 -
1
1. Thrust washer
32483
2. O-ring
3. Bushing
If necessary, disassemble the steering bracket
from the
pilot shaft by removing the three screws.
1. Screws
32482
If necessary, service the components of the stern
brackets.
o
~== ~==~. om ~
~ I O
<0
TYPICAL
32471
MIDSECTION
SWIVEL BRACKET
If the tilt bolt is removed, tighten the bolt to a
torque of
60 to 84 in. Ibs. (7 to 9 N· m) when
assembled.
25/30 MODELS
Loosen the swivel bracket friction adjustment
screw. Lift the steering bracket and pilot shaft from
the
swivel bracket. Remove upper thrust washer.
1
1. Friction adjustment screw
22100
1---- -:::::
1. Upper thrust washer
6296
247
I
