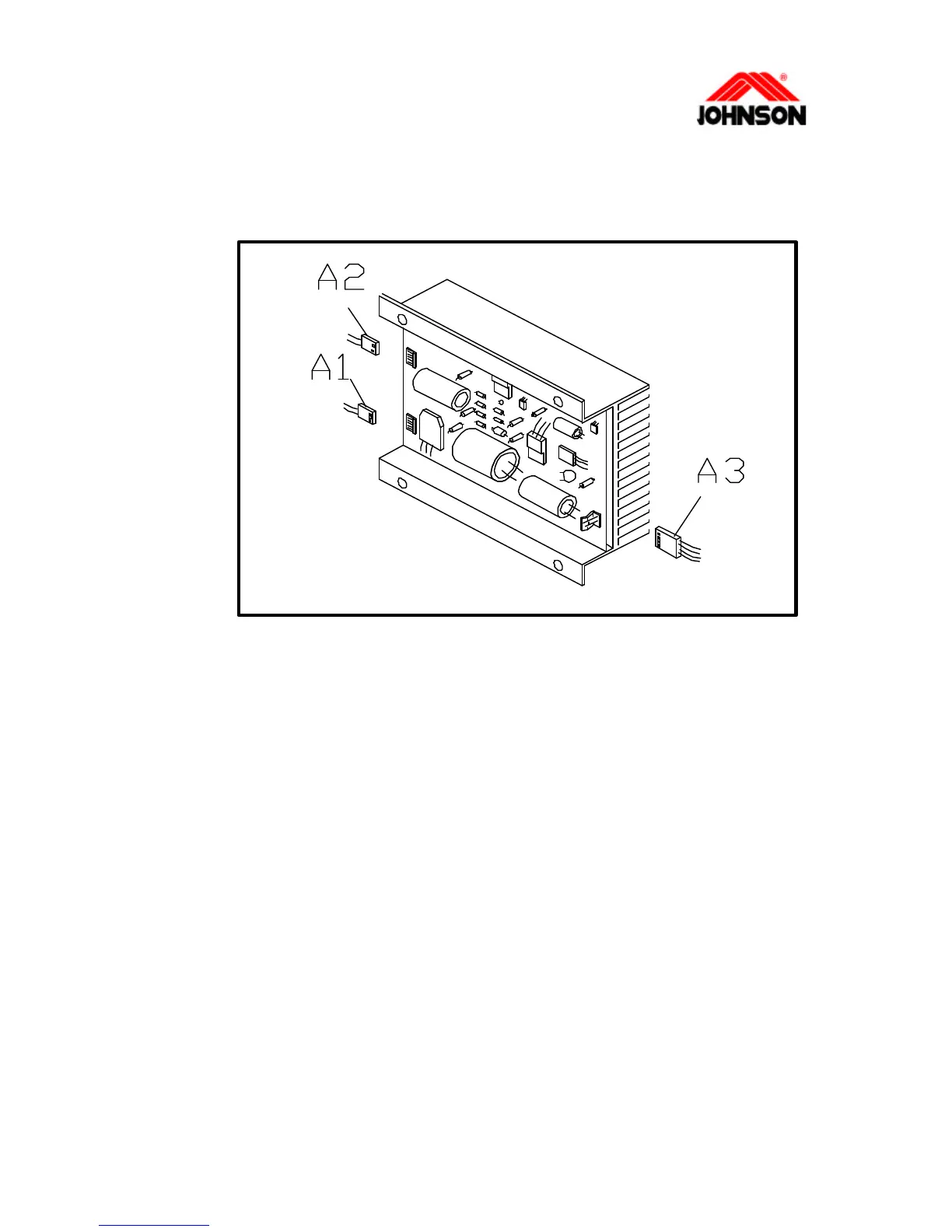

JPC/B-5100 CONTROL BOARD WIRING DIAGRAM
Ø A1 : 3-pin terminal to the generator
Ø A2 : 2-pin terminal to the electromagnet
Ø A3 : 4-pin terminal to the console
1-1 Revision: 1.0 Date: 2001/06/01
