23
Fig.3.6

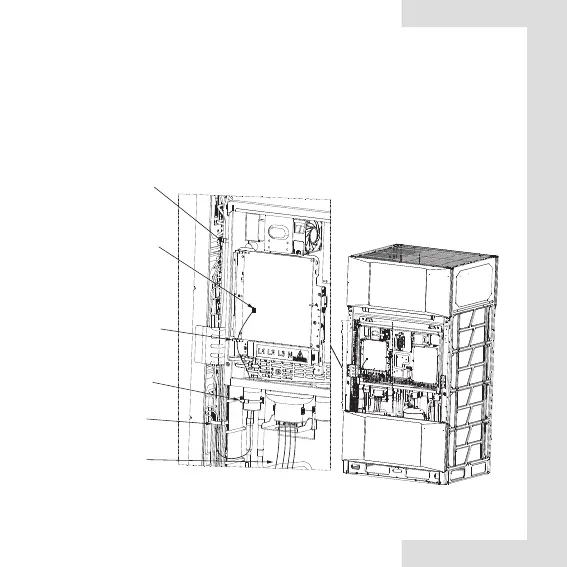

● Step 5: Lay the communication wire along the path into the
electric control box, as shown in the figure. Connect the
communication terminal to the CN14 port of the main control
board and fix the wire with a zip tie at the indicated part.
After wiring, fasten the rubber at the indicated part.
Fix the wire
with a zip tie
Connect the
communication
wire to the
CN14 port of
the main control
board.
Fix the wire
with a zip tie
Fix the wire
with a zip tie.
Do not tie the
communication wire
with the high-voltage
wire.
Tighten the rubber
after wiring.
