Maintenance - 41
Power Trim and Tilt Fluid Reservoir
Tilt the motor up and engage the tilt support. De-
pending on your model, refer to Power Trim and
Tilt. Remove filler cap and check fluid level. If nec-
essary, add enough
Evinrude/Johnson
Power Trim/
Tilt and Power Steering Fluid to bring the fluid level
even with the bottom of the fill cap hole when the
unit is at full tilt.
1. Filler cap
IMPORTANT: Correct fluid level must be main-
tained to ensure operation of the impact protection
built into this unit.
Lubrication Points
Refer to Engine Maintenance and Inspection
Schedule for lubrication frequency and recom-
mended lubricant.

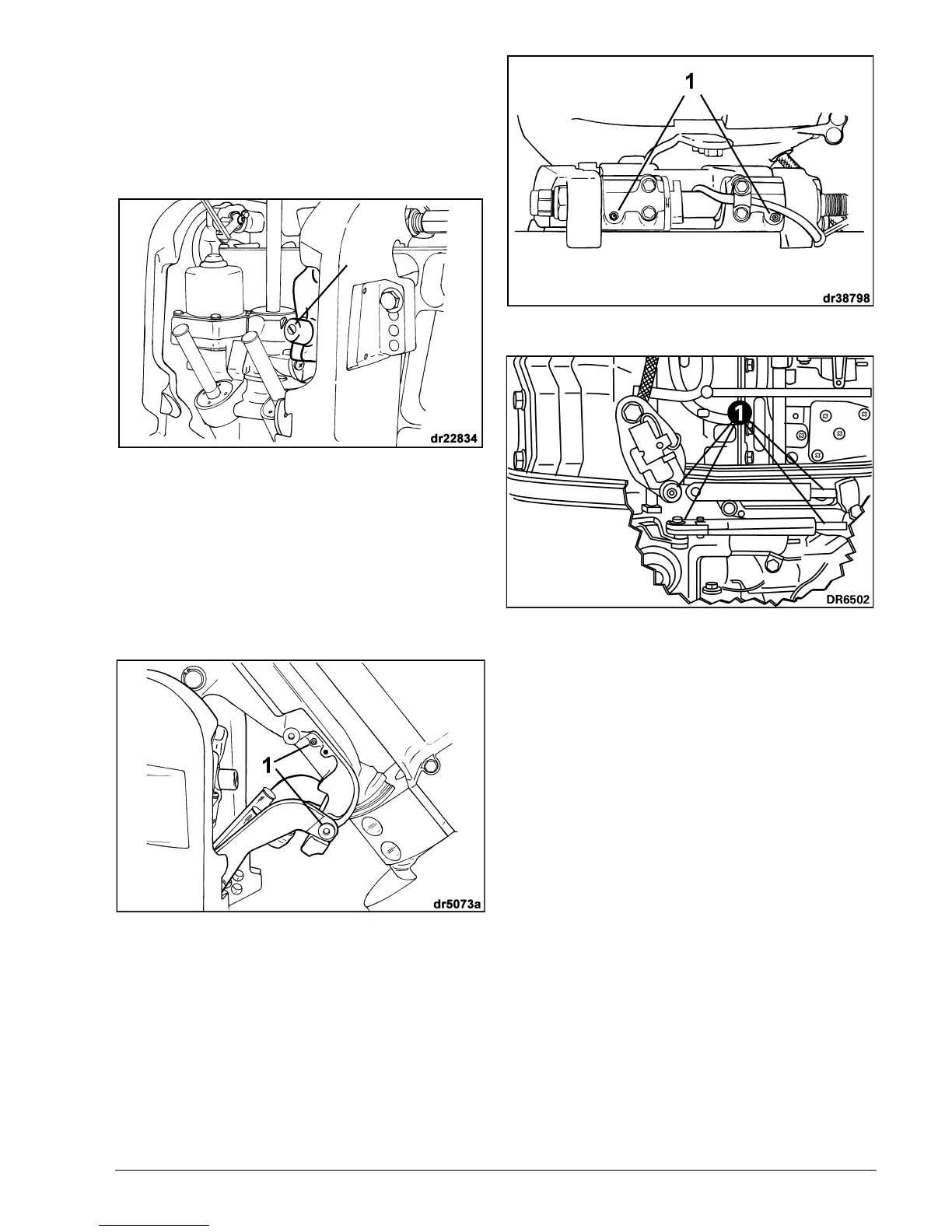

1. Trailering bracket lubrication points.
1. Tilt tube lubrication points.
1. Shift/Throttle lubrication points.
