Johnston RT655 - Fuse Functions

RT655 Operator’s Guide
OG2:8
Chapter - Controls
Page Issue A

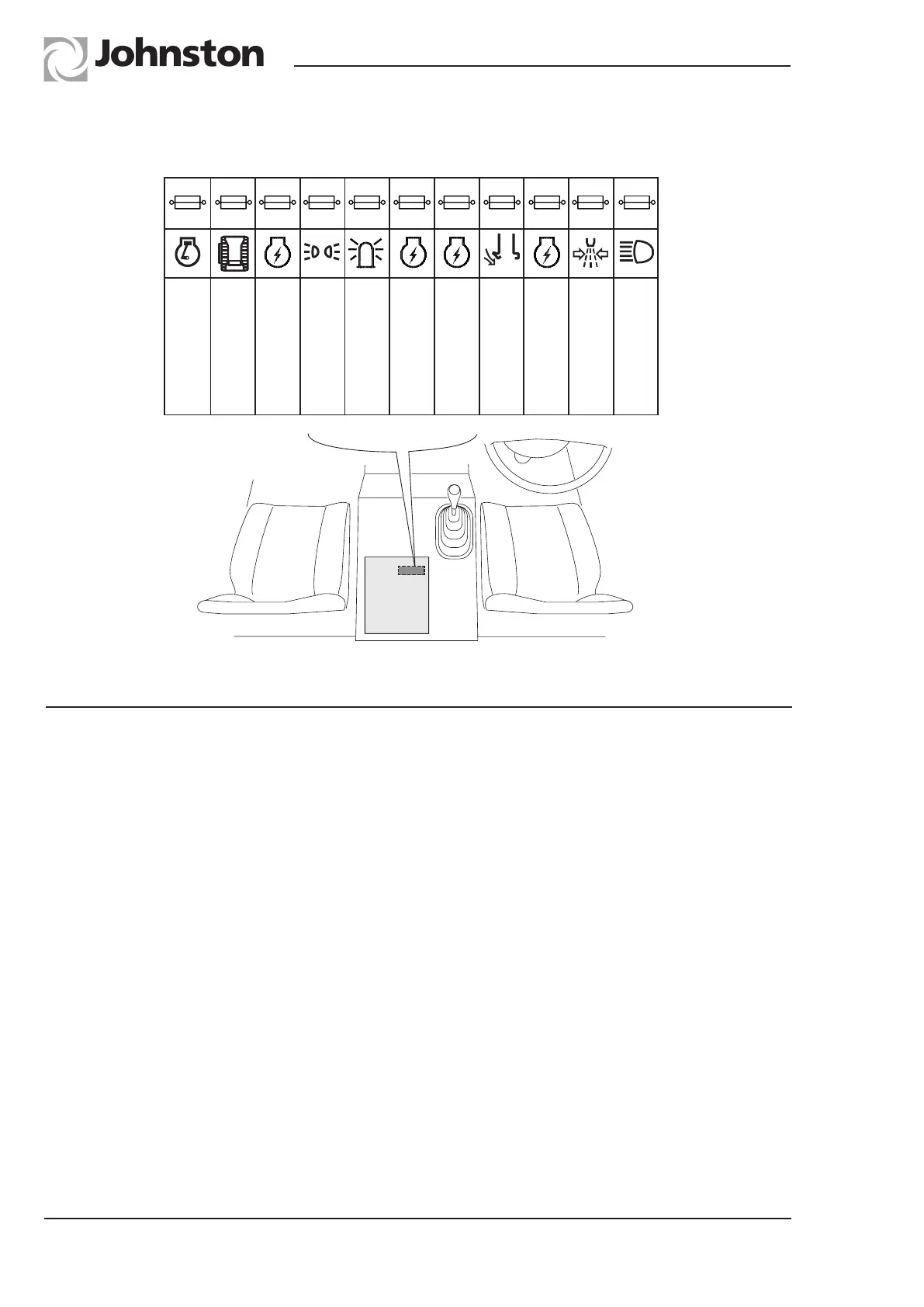

Fuse Functions
RTOG.011-2
20A
F11
20A
F3
20A
F10
10A
F2
20A
F1
15A
F8
20A
F6
15A
F7
20A
F4
15A
F5
F9
10A
MARKER LIGHTS
CHASSIS
IGNITION
WATER/SUPAWASH/
ROTATILT
POWER I/O NODE
WORK LIGHTS/
WATER SWITCHES
CHASSIS IGNITION/
SUPAWASH CONTROLS/
VEG SENSORS
POWER VEG
GATE
AUX ENGINE
IGNITION
AUX ENGINE
CRANK
AUX ENGINE
ECU POWER
BEACONS
Fuse No. Function Amps
F1 Beacons 20
F2 Marker Lights 10
F3 Power I/O Node 20
F4 Water/Supawash/Rotatilt 20
F5 Work Lights/Water Switches 15
F6 Power VEG Gate 20
F7 Aux Engine Ignition 15
F8 Chassis Ignition 15
F9 Chassis Ignition/Supawash Controls/VEG Sensors 10
F10 Aux Engine ECU Power 20
F11 Aux Engine Crank 20
Fuse colour key
5 Orange 10 Red 15 Blue 20 Yellow
